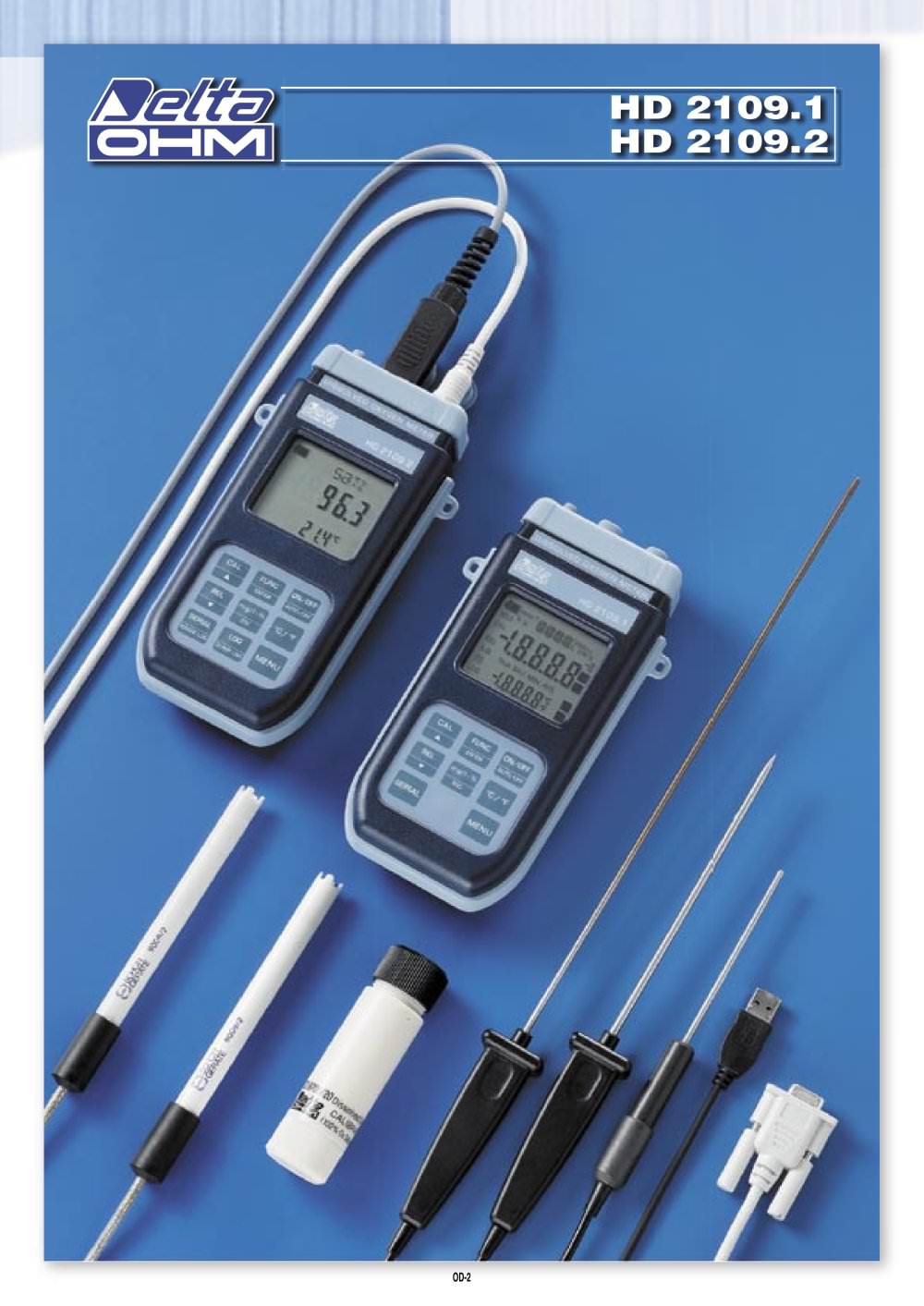

The HD2109.1 and HD2109.2 are portable instruments with a large LCD display. They measure the concentration (in mg/l) of dissolved Oxygen in liquids, the saturation index (in %) and the temperature using SICRAM combined probes of polarographic type with two or three electrodes and integrated temperature sensor. Temperature only is measured by Pt100–SICRAM or direct 4 wire–immer- sion, penetration or contact probes. Thanks to an internal pressure sensor, the instruments automatically compensate for barometric pressure. The instrument anticipates automatic compensation of the Oxygen probe...

Open the catalog to page 2

HD2101/USB S‘Print-BT DO9700 DO9701 Measurement of barometric pressure Measurement range 0.0…1100.0mbar Resolution 0.1mbar Accuracy ±2mbar±1digit between 18 and 25°C ±(2mbar+0.1mbar/°C) in the remaining range Setting the salinity Measurement range 0.0…70.0mg/l Resolution 0.1mg/l Temperature measurement with the sensor inside the dissolved Oxygen probe Measurement range 0…+45°C Resolution 0.1°C Accuracy ±0.25°C Drift after 1 year 0.1°C/year Temperature measurement by Instrument with Pt100 probe Pt100 measurement range -200…+650°C Resolution 0.1°C Accuracy ±0.25°C Drift after 1 year...

Open the catalog to page 3

AF209.60 DeltaLog9: Software for download and management of the data on PC using Windows 98 to XP operating systems. AF209.60: Stabilized power supply at 230Vac/9Vdc-300mA mains voltage. S’print-BT: On request, portable, serial input, 24 column thermal printer, 58mm paper width. DO9700: zero solution. DO9701: electrolyte solution. Combined dissolved Oxygen/temperature probes DO9709 SS: The kit includes: combined probe for measurement of O2 and tem- perature with replaceable membrane, three membranes, 50ml of zero solu- tion, 50ml of electrolyte solution. Cable length 2m. 12mm x 120mm....
