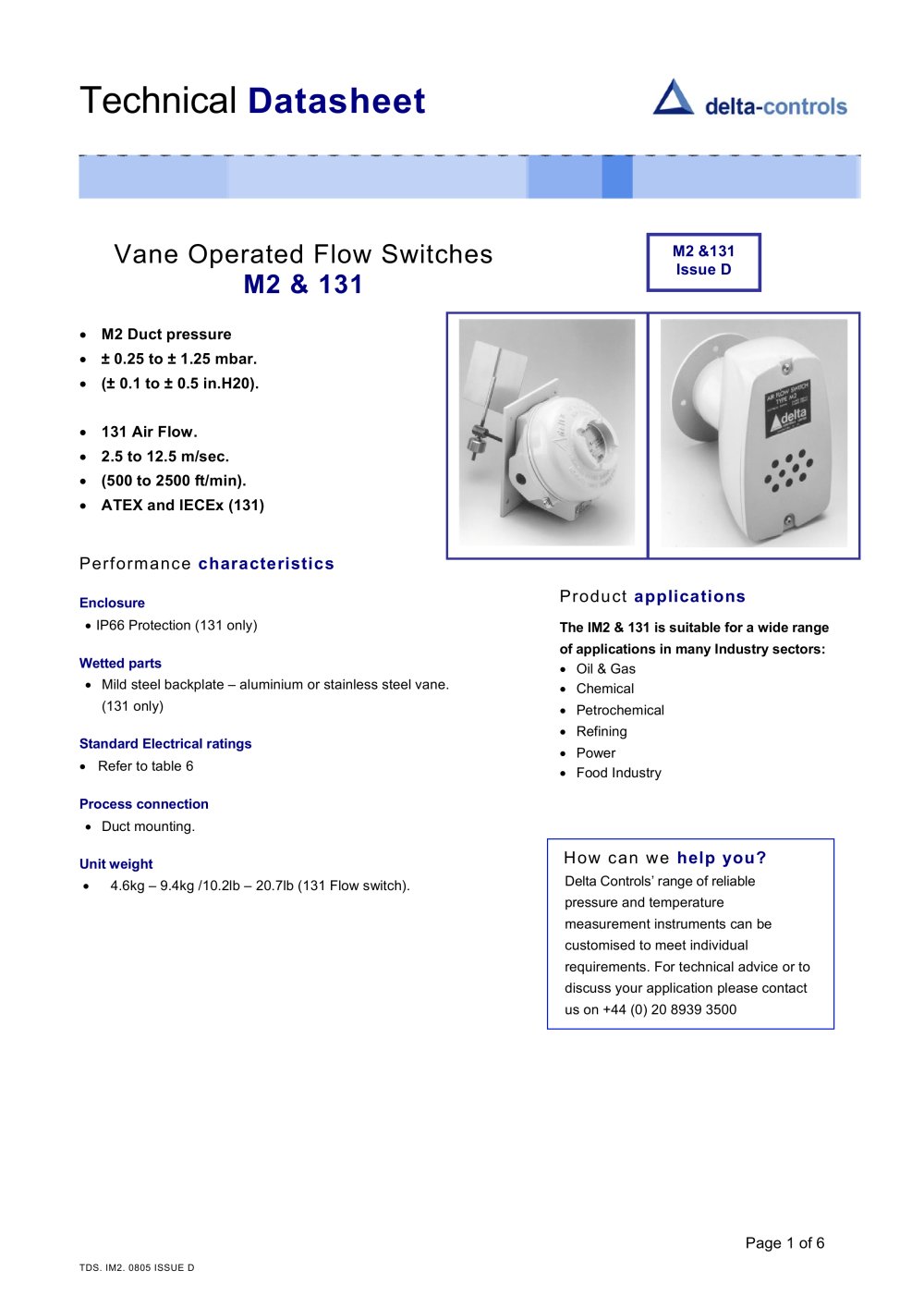

Technical

Datasheet

Vane Operated Flow Switches

M2 &131Issue D

M2 & 131

M2 Duct pressure ± 0.25 to ± 1.25 mbar. (± 0.1 to ± 0.5 in.H20). 131 Air Flow. 2.5 to 12.5 m/sec. (500 to 2500 ft/min). ATEX and IECEx (131)

Performance characteristics

Enclosure

Product applications

IP66 Protection (131 only) The IM2 & 131 is suitable for a wide rangeof applications in many Industry sectors: Wetted parts Oil & Gas Mild steel backplate – aluminium or stainless steel vane.(131 only) Chemical Petrochemical Refining Standard Electrical ratings Power Refer to table 6 Food Industry Process connection Duct mounting. Unit weight

How can we help you?

4.6kg – 9.4kg /10.2lb – 20.7lb (131 Flow switch). Delta Controls’ range of reliablepressure and temperaturemeasurement instruments can be customised to meet individualrequirements. For technical advice or todiscuss your application please contact us on +44 (0) 20 8939 3500

Page 1 of 6

TDS. IM2. 0805 ISSUE D
