DELITEK AS - Moloveien 1 - NO-8432 Alsvaag Norway - Tel.: +47 76 13 47 00 - Fax: +47 76 13 42 77E-mail: mail@delitek.no - website: www.delitek.no

WASTE HANDLING SYSTEMS & WASTE COMPACTORS

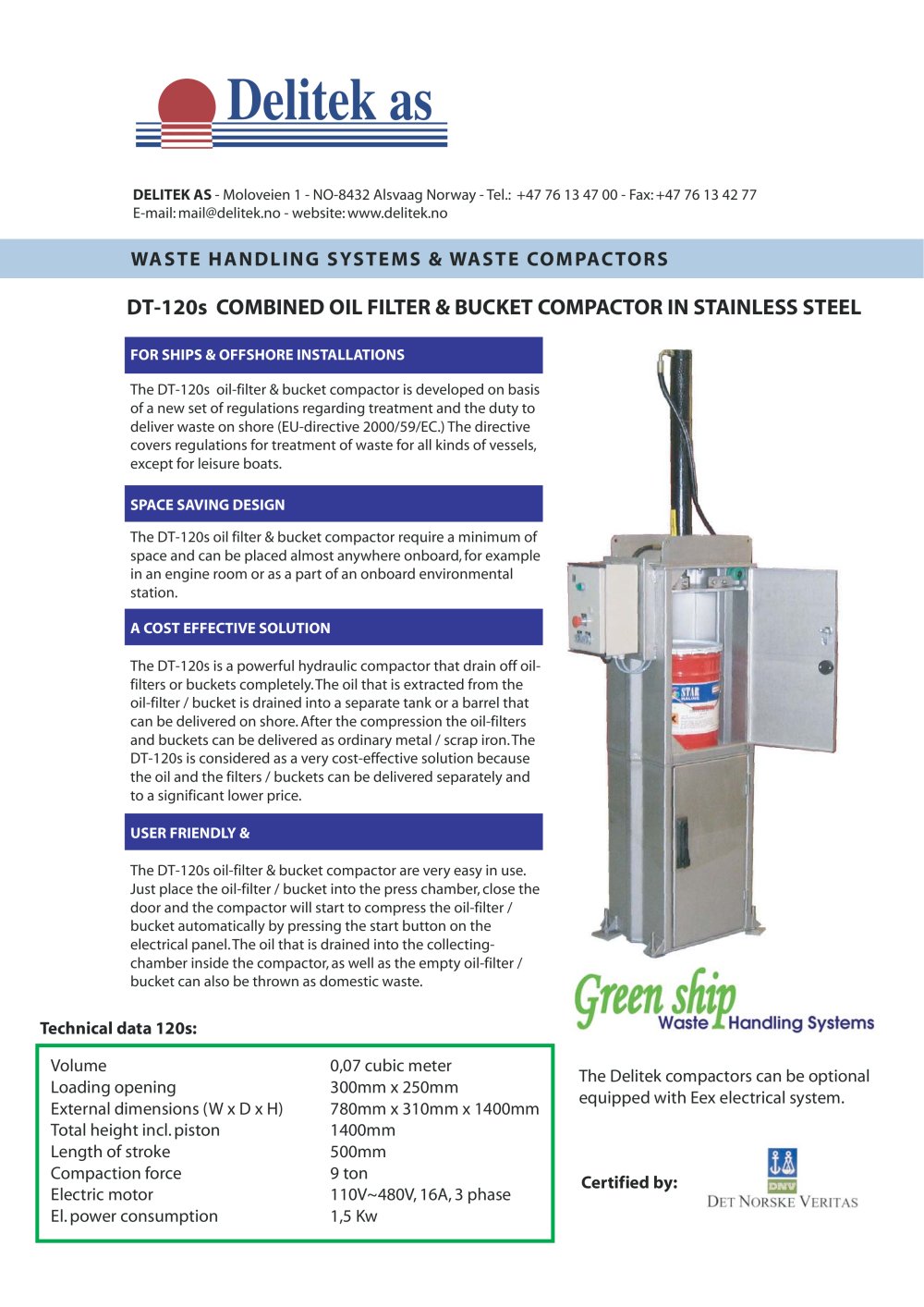

Oil filter & bucket compactor - 37312 DT-120s COMBINED OIL FILTER & BUCKET COMPACTOR IN STAINLESS STEEL

FOR SHIPS & OFFSHORE INSTALLATIONSSPACE SAVING DESIGNA COST EFFECTIVE SOLUTION USER FRIENDLY & The DT-120s oil-filter & bucket compactor is developed on basis of a new set of regulations regarding treatment and the duty to deliver waste on shore (EU-directive 2000/59/EC.) The directive covers regulations for treatment of waste for all kinds of vessels, except for leisure boats.The DT-120s oil filter & bucket compactor require a minimum of space and can be placed almost anywhere onboard, for example in an engine room or as a part of an onboard environmental station. The DT-120s is a powerful hydraulic compactor that drain off oil-filters or buckets completely. The oil that is extracted from the oil-filter / bucket is drained into a separate tank or a barrel that can be delivered on shore. After the compression the oil-filters and buckets can be delivered as ordinary metal / scrap iron. The DT-120s is considered as a very cost-effective solution because the oil and the filters / buckets can be delivered separately and to a significant lower price.The DT-120s oil-filter & bucket compactor are very easy in use. Just place the oil-filter / bucket into the press chamber, close the door and the compactor will start to compress the oil-filter / bucket automatically by pressing the start button on the electrical panel. The oil that is drained into the collecting- chamber inside the compactor, as well as the empty oil-filter / bucket can also be thrown as domestic waste. Certified by: Technical data 120s: 0,07 cubic meter300mm x 250mm 780mm x 310mm x 1400mm 1400mm 500mm 9 ton 110V~480V, 16A, 3 phase 1,5 Kw VolumeLoading opening External dimensions (W x D x H) Total height incl. piston Length of stroke Compaction force Electric motor El. power consumption The Delitek compactors can be optional equipped with Eex electrical system.
