2.2 VIDEO SCREEN

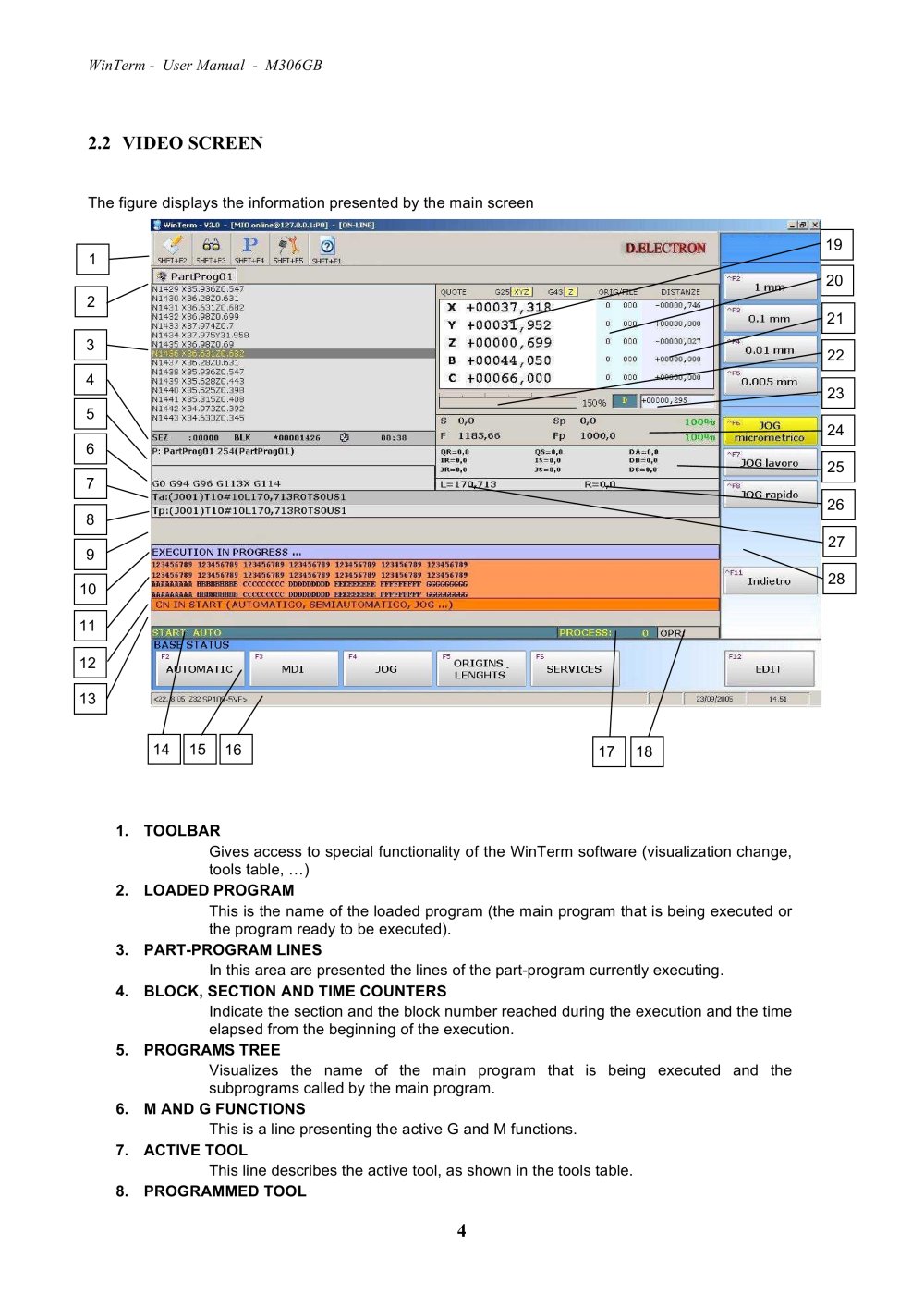

The figure displays the information presented by the main screen 19 1 20 2 21 3 22 4 23 5 24 6 25 7 26 8 27 9 10 28 11 12 14 15 16 17 18 13 1. TOOLBAR Gives access to special functionality of the WinTerm software (visualization change, tools table, …) 2. LOADED PROGRAM This is the name of the loaded program (the main program that is being executed or the program ready to be executed). 3. PART-PROGRAM LINES In this area are presented the lines of the part-program currently executing. 4. BLOCK, SECTION AND TIME COUNTERS Indicate the section and the block number reached during the execution and the time elapsed from the beginning of the execution. 5. PROGRAMS TREE Visualizes the name of the main program that is being executed and the subprograms called by the main program. 6. M AND G FUNCTIONS This is a line presenting the active G and M functions. 7. ACTIVE TOOL This line describes the active tool, as shown in the tools table. 8. PROGRAMMED TOOL

4
