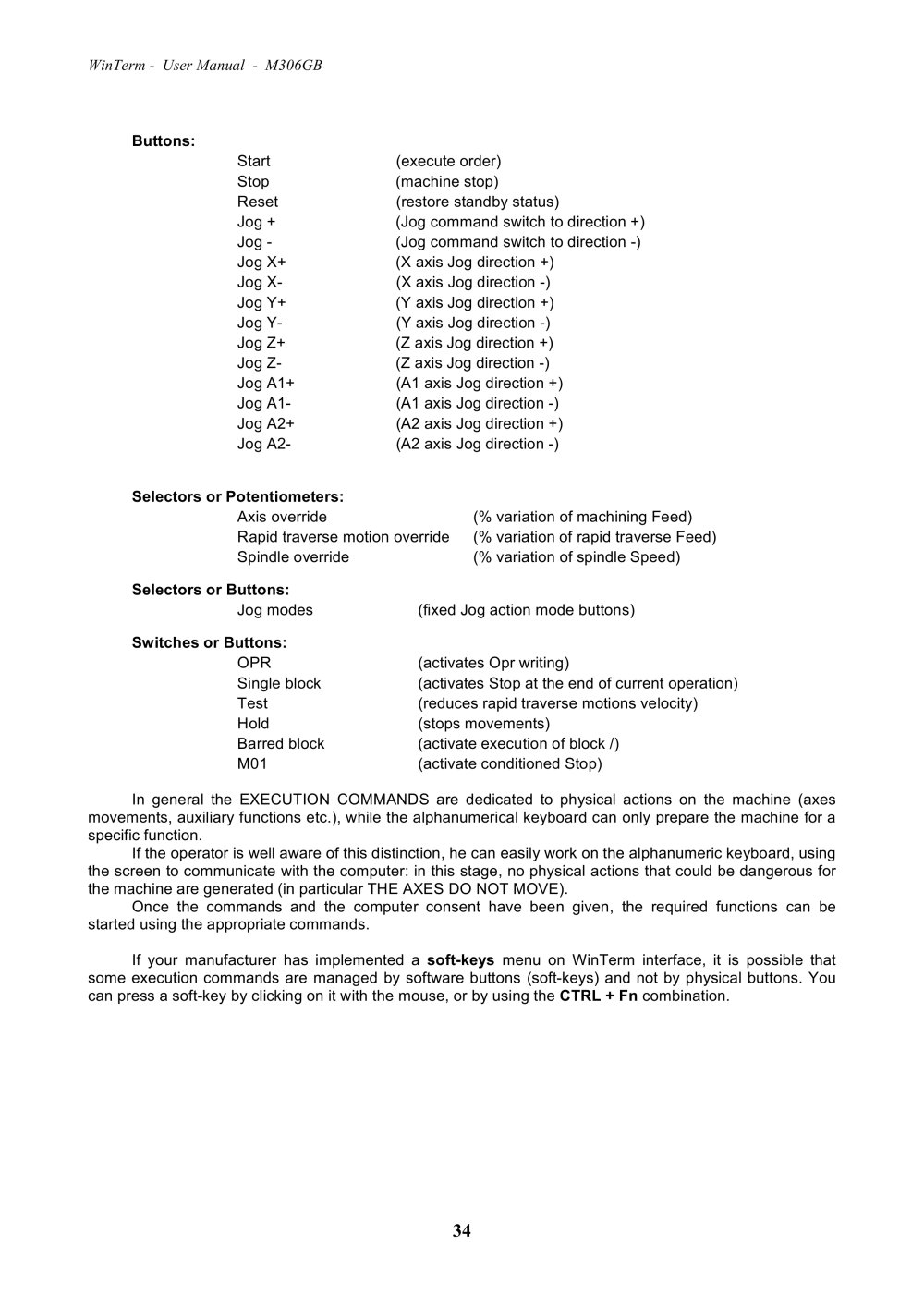

WinTerm - User Manual - M306GB Buttons: Start (execute order) Stop (machine stop) Reset (restore standby status) Jog + (Jog command switch to direction +) Jog - (Jog command switch to direction -) Jog X+ (X axis Jog direction +) Jog X- (X axis Jog direction -) Jog Y+ (Y axis Jog direction +) Jog Y- (Y axis Jog direction -) Jog Z+ (Z axis Jog direction +) Jog Z- (Z axis Jog direction -) Jog A1+ (A1 axis Jog direction +) Jog A1- (A1 axis Jog direction -) Jog A2+ (A2 axis Jog direction +) Jog A2- (A2 axis Jog direction -) Selectors or Potentiometers: Axis override (% variation of machining Feed) Rapid traverse motion override (% variation of rapid traverse Feed) Spindle override (% variation of spindle Speed) Selectors or Buttons: Jog modes (fixed Jog action mode buttons) Switches or Buttons: OPR (activates Opr writing) Single block (activates Stop at the end of current operation) Test (reduces rapid traverse motions velocity) Hold (stops movements) Barred block (activate execution of block /) M01 (activate conditioned Stop) In general the EXECUTION COMMANDS are dedicated to physical actions on the machine (axes movements, auxiliary functions etc.), while the alphanumerical keyboard can only prepare the machine for a specific function. If the operator is well aware of this distinction, he can easily work on the alphanumeric keyboard, using the screen to communicate with the computer: in this stage, no physical actions that could be dangerous for the machine are generated (in particular THE AXES DO NOT MOVE). Once the commands and the computer consent have been given, the required functions can be started using the appropriate commands. If your manufacturer has implemented a soft-keys menu on WinTerm interface, it is possible that some execution commands are managed by software buttons (soft-keys) and not by physical buttons. You can press a soft-key by clicking on it with the mouse, or by using the CTRL + Fn combination.
