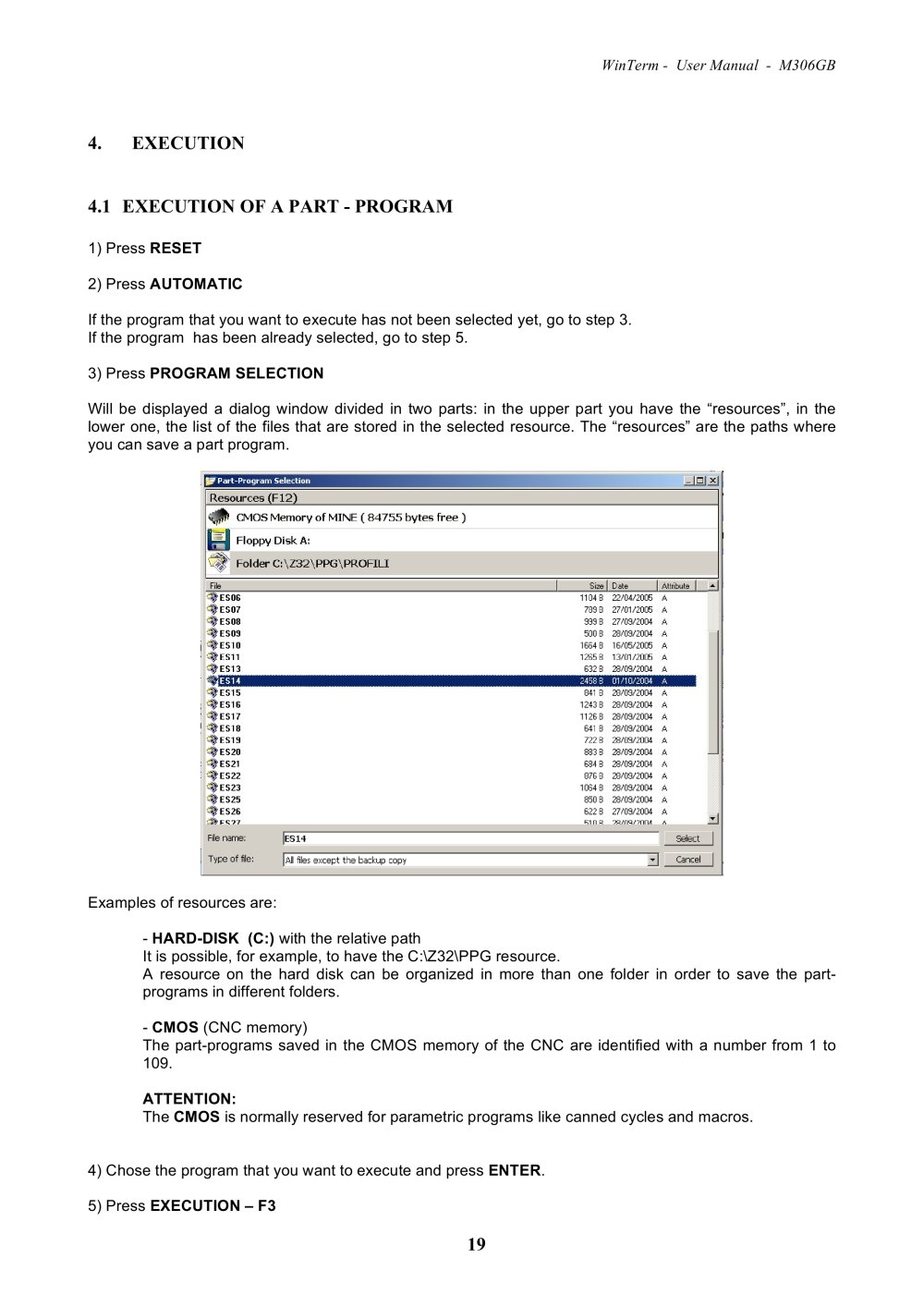

4. EXECUTION 4.1 EXECUTION OF A PART - PROGRAM

1) Press RESET 2) Press AUTOMATIC If the program that you want to execute has not been selected yet, go to step 3. If the program has been already selected, go to step 5. 3) Press PROGRAM SELECTION Will be displayed a dialog window divided in two parts: in the upper part you have the “resources”, in the lower one, the list of the files that are stored in the selected resource. The “resources” are the paths where you can save a part program. Examples of resources are: - HARD-DISK (C:) with the relative path It is possible, for example, to have the C:\Z32\PPG resource. A resource on the hard disk can be organized in more than one folder in order to save the part-programs in different folders. - CMOS (CNC memory) The part-programs saved in the CMOS memory of the CNC are identified with a number from 1 to 109. ATTENTION: The CMOS is normally reserved for parametric programs like canned cycles and macros. 4) Chose the program that you want to execute and press ENTER . 5) Press EXECUTION – F3

19
