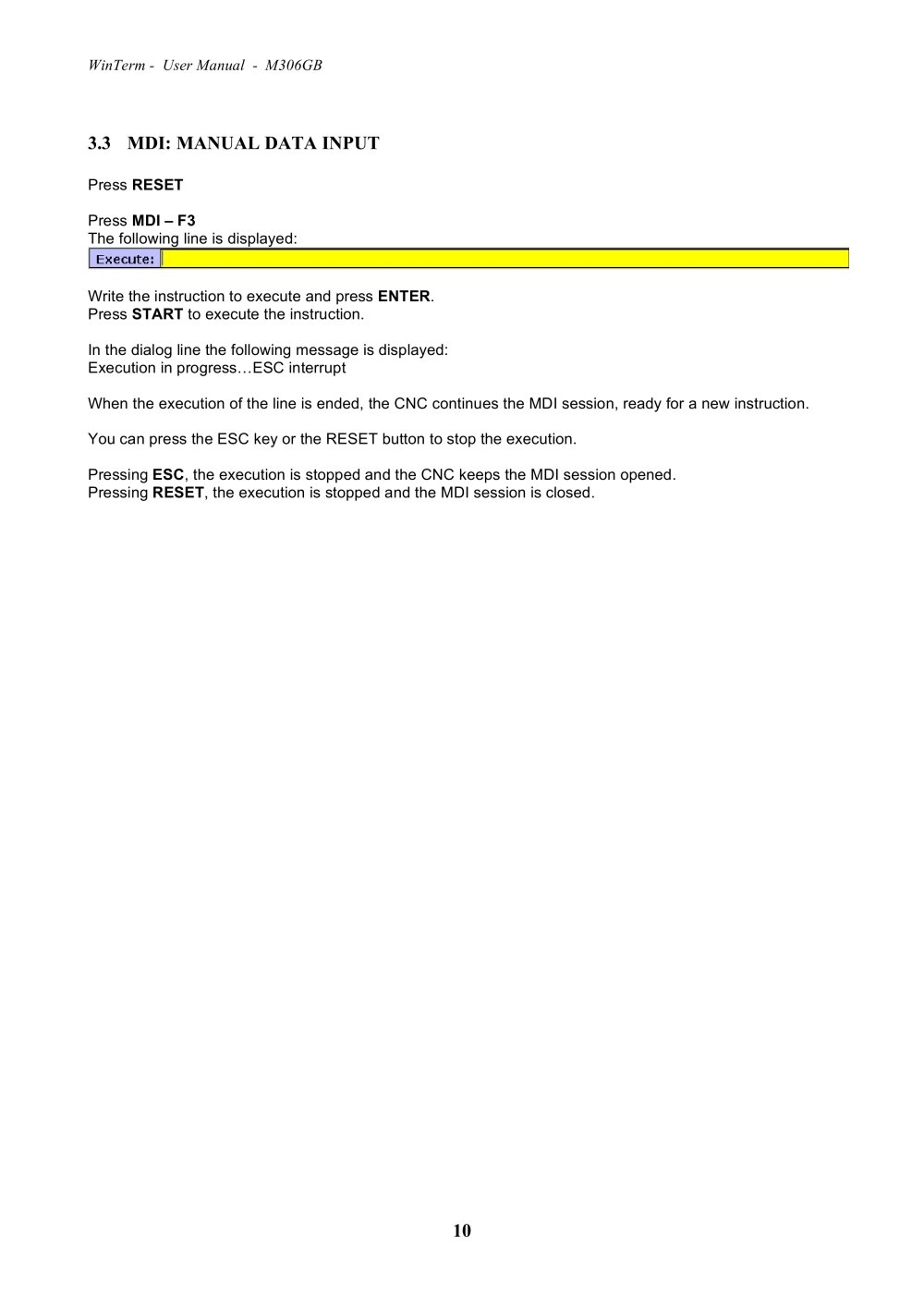

3.3 MDI: MANUAL DATA INPUT

Press RESET Press MDI – F3 The following line is displayed: Write the instruction to execute and press ENTER . Press START to execute the instruction. In the dialog line the following message is displayed: Execution in progress…ESC interrupt When the execution of the line is ended, the CNC continues the MDI session, ready for a new instruction. You can press the ESC key or the RESET button to stop the execution. Pressing ESC , the execution is stopped and the CNC keeps the MDI session opened. Pressing RESET , the execution is stopped and the MDI session is closed.

10
