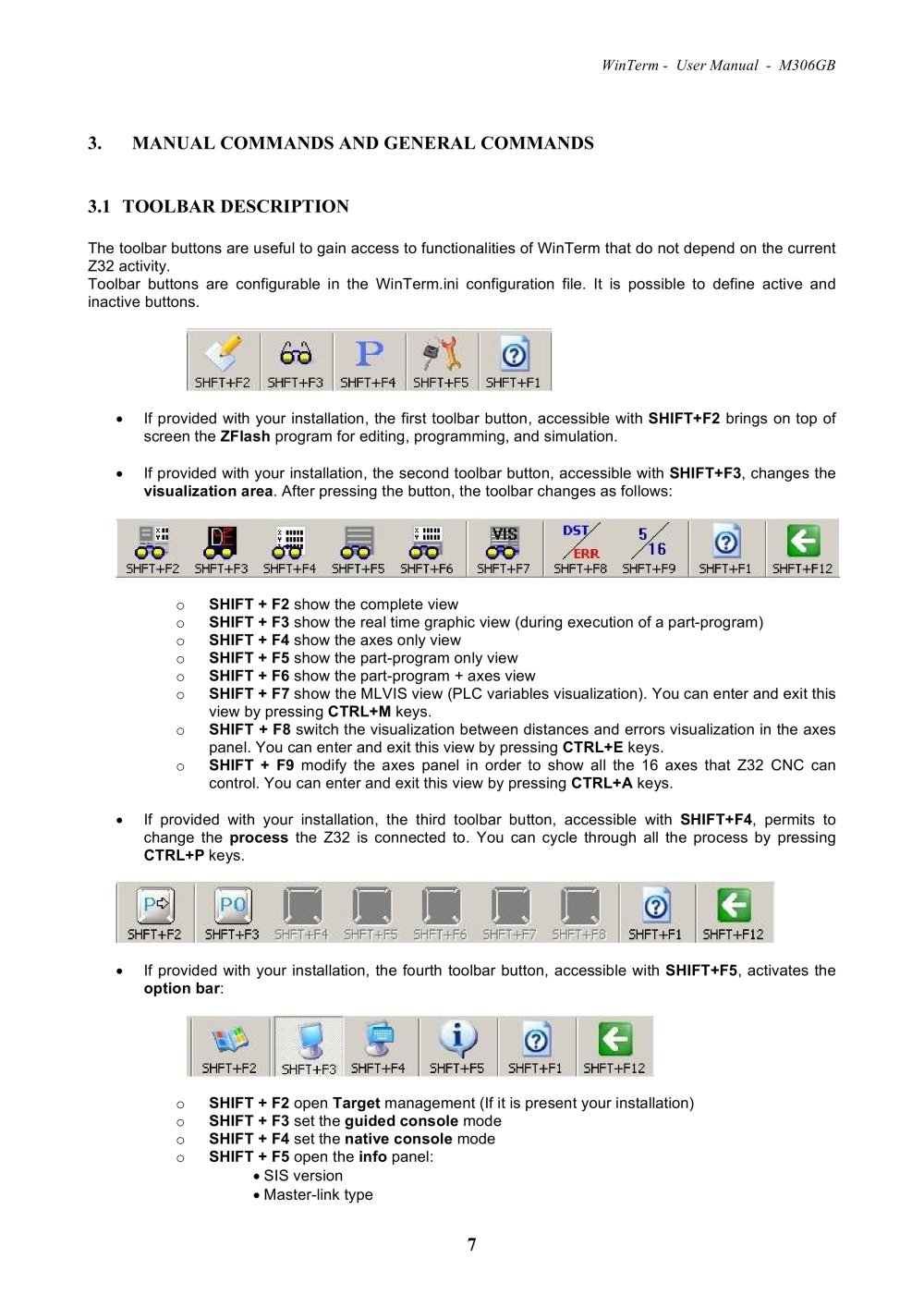

3. MANUAL COMMANDS AND GENERAL COMMANDS 3.1 TOOLBAR DESCRIPTION

The toolbar buttons are useful to gain access to functionalities of WinTerm that do not depend on the current Z32 activity. Toolbar buttons are configurable in the WinTerm.ini configuration file. It is possible to define active and inactive buttons. If provided with your installation, the first toolbar button, accessible with SHIFT+F2 brings on top of screen the ZFlash program for editing, programming, and simulation. If provided with your installation, the second toolbar button, accessible with SHIFT+F3 , changes the visualization area . After pressing the button, the toolbar changes as follows: o SHIFT + F2 show the complete view o SHIFT + F3 show the real time graphic view (during execution of a part-program) o SHIFT + F4 show the axes only view o SHIFT + F5 show the part-program only view o SHIFT + F6 show the part-program + axes view o SHIFT + F7 show the MLVIS view (PLC variables visualization). You can enter and exit this view by pressing CTRL+M keys. o SHIFT + F8 switch the visualization between distances and errors visualization in the axes panel. You can enter and exit this view by pressing CTRL+E keys. o SHIFT + F9 modify the axes panel in order to show all the 16 axes that Z32 CNC can control. You can enter and exit this view by pressing CTRL+A keys. If provided with your installation, the third toolbar button, accessible with SHIFT+F4 , permits to change the process the Z32 is connected to. You can cycle through all the process by pressing CTRL+P keys. If provided with your installation, the fourth toolbar button, accessible with SHIFT+F5 , activates the option bar : o SHIFT + F2 open Target management (If it is present your installation) o SHIFT + F3 set the guided console mode o SHIFT + F4 set the native console mode o SHIFT + F5 open the info panel: SIS version Master-link type

7
