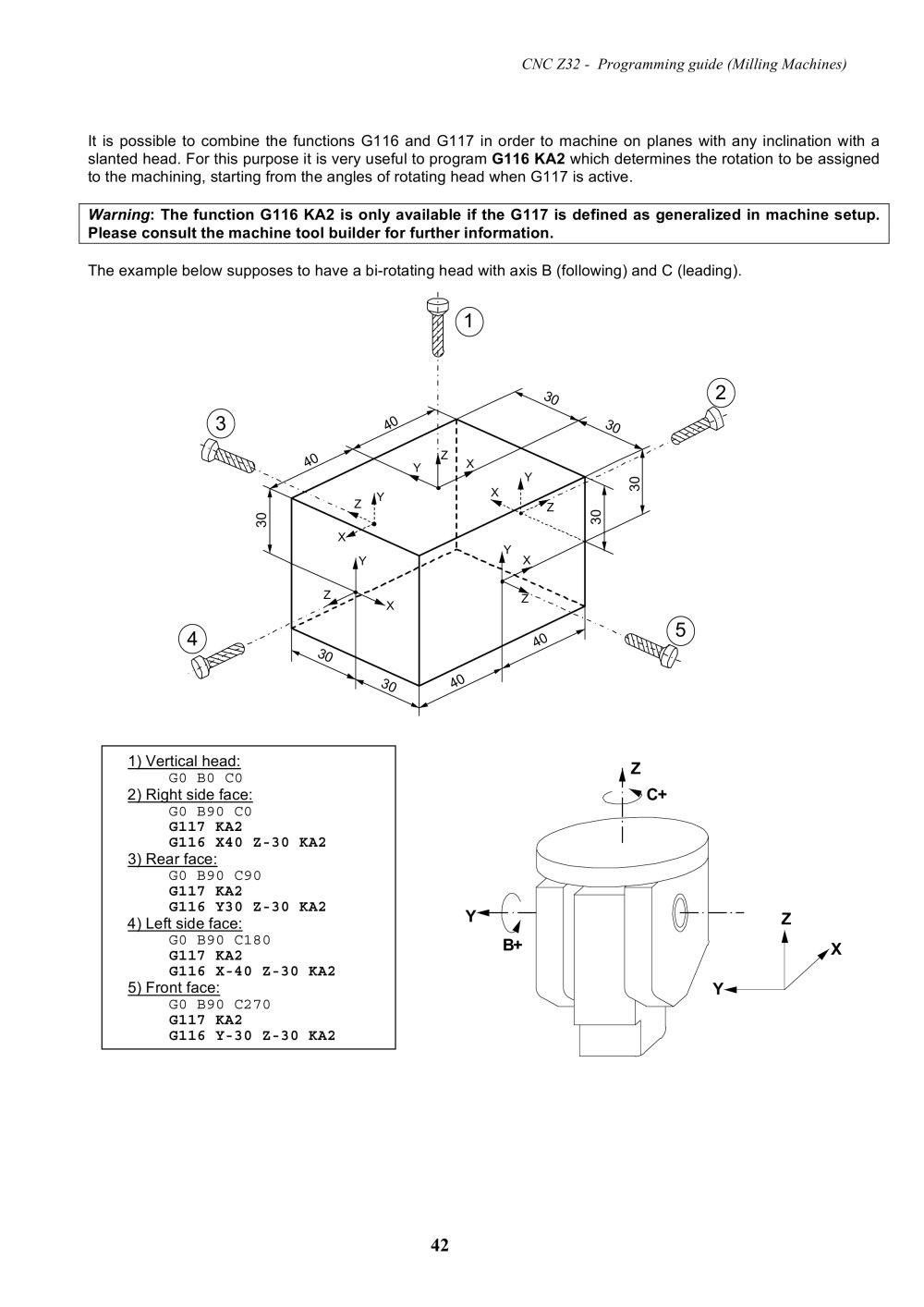

CNC Z32 - Programming guide (Milling machines manufacturer) It is possible to combine the functions G116 and G117 in order to machine on planes with any inclination with a slanted head. For this purpose it is very useful to program G116 KA2 which determines the rotation to be assigned to the machining, starting from the angles of rotating head when G117 is active. Warning : The function G116 KA2 is only available if the G117 is defined as generalized in machine setup. Please consult the machine tool builder for further information. The example below supposes to have a bi-rotating head with axis B (following) and C (leading).

1

30 3030 30

3 45 2

4040 4040 XXXXXYYYYYZZZZZ 3030 30 1) Vertical head: G0 B0 C0

ZC+

2) Right side face: G0 B90 C0 G117 KA2 G116 X40 Z-30 KA2 3) Rear face: G0 B90 C90 G117 KA2 G116 Y30 Z-30 KA2 4) Left side face:

Y ZYX

G0 B90 C180 G117 KA2 G116 X-40 Z-30 KA2

B+

5) Front face: G0 B90 C270 G117 KA2 G116 Y-30 Z-30 KA2
