CNC Z32 - Programming guide (Milling machines manufacturer)

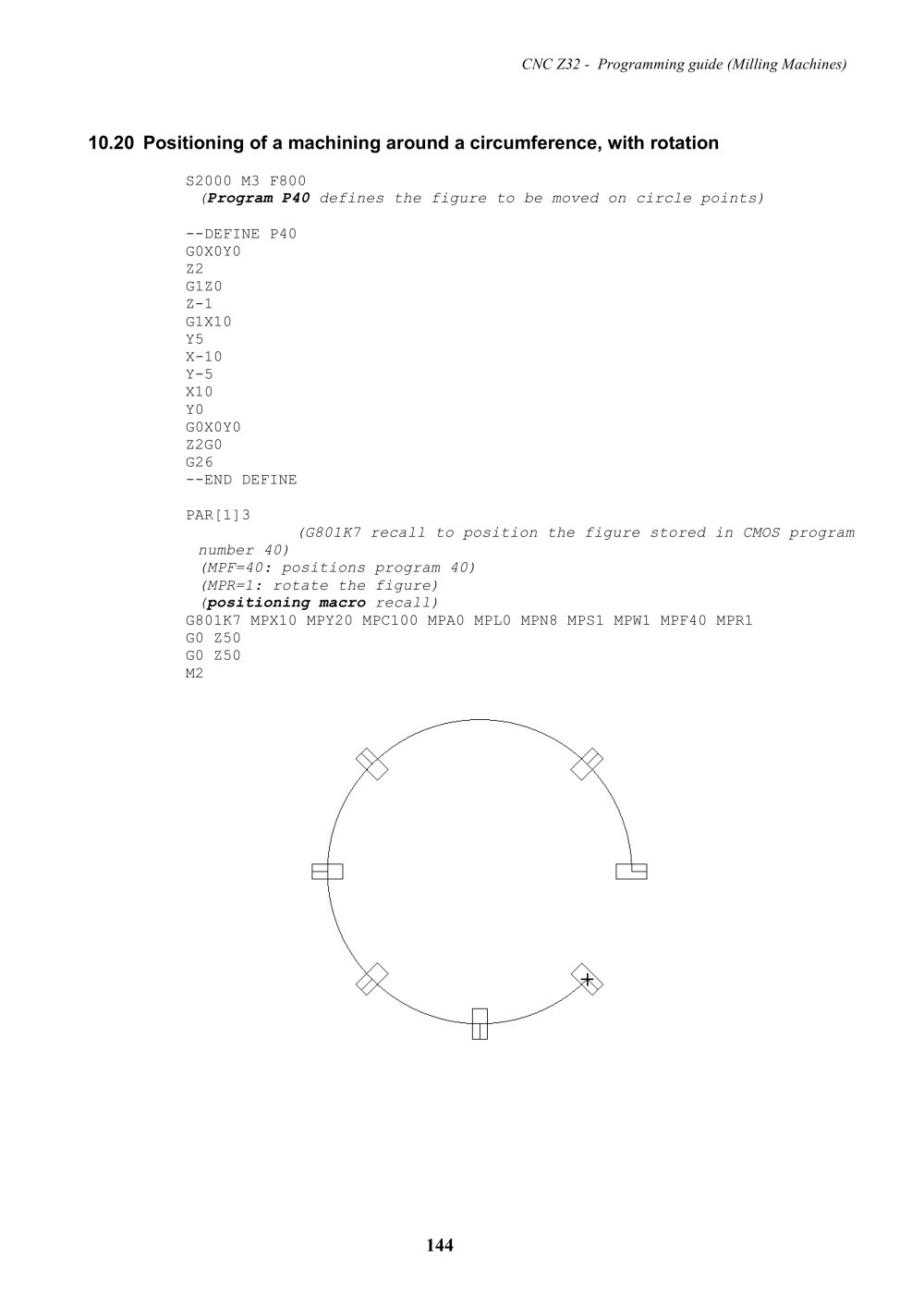

10.20 Positioning of a machining around a circumference, with rotation

S2000 M3 F800

(Program P40 defines the figure to be moved on circle points)

—DEFINE P40

G0X0Y0

G1Z0 Z-1 G1X10 Y5

X-10 Y-5

X10 Y0

G0X0Y0 Z2G0

G2 6

—END DEFINE

PAR[1]3

(G801K7 recall to position the figure stored in CMOS program

number 40)

(MPF=4 0: positions program 40)

(MPR=1: rotate the figure)

(positioning macro recall) G801K7 MPX10 MPY20 MPC100 MPA0 MPL0 MPN8 MPS1 MPW1 MPF40 MPR1 GO Z50 G0 Z50

144
