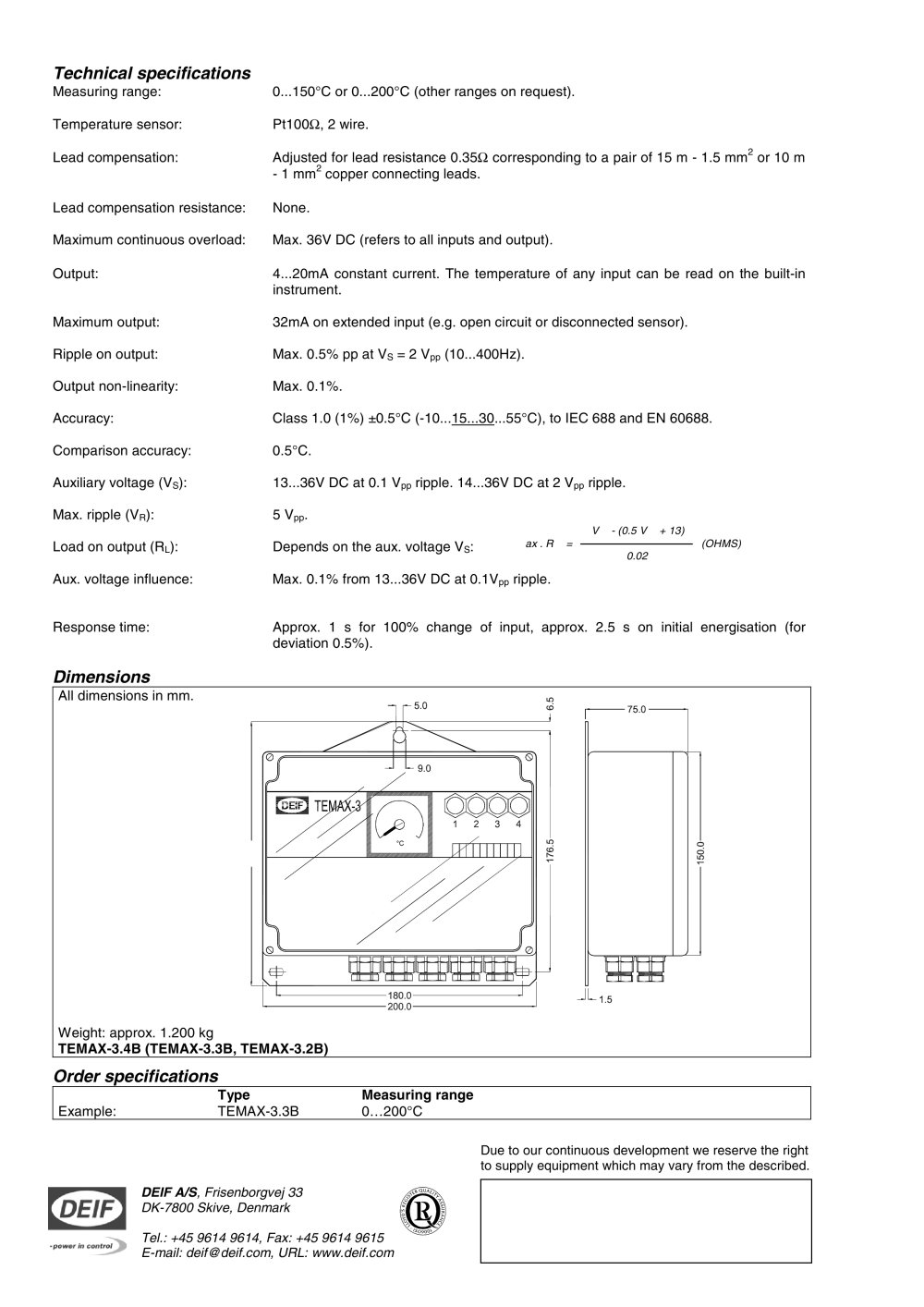

Technical specifications

Measuring range: 0...150°C or 0...200°C (other ranges on request). Temperature sensor: Pt100 Ω , 2 wire. Lead compensation: Adjusted for lead resistance 0.35
2 Ω corresponding to a pair of 15 m - 1.5 mm
2 or 10 m - 1 mm copper connecting leads. Lead compensation resistance: None. Maximum continuous overload: Max. 36V DC (refers to all inputs and output). Output: 4...20mA constant current. The temperature of any input can be read on the built-in instrument. Maximum output: 32mA on extended input (e.g. open circuit or disconnected sensor). Ripple on output: Max. 0.5% pp at V
S = 2 V
pp (10...400Hz). Output non-linearity: Max. 0.1%. Accuracy: Class 1.0 (1%) ±0.5°C (-10...15...30 ...55°C), to IEC 688 and EN 60688. Comparison accuracy: 0.5°C. Auxiliary voltage (V
S ): 13...36V DC at 0.1 V
pp ripple. 14...36V DC at 2 V
pp ripple. Max. ripple (V
R ): 5 V
pp . Load on output (R
V - (0.5 V + 13) ax . R = (OHMS) L ): Depends on the aux. voltage V
S : Aux. voltage influence: Max. 0.1% from 13...36V DC at 0.1V
0.02 pp ripple. Response time: Approx. 1 s for 100% change of input, approx. 2.5 s on initial energisation (for deviation 0.5%).

Dimensions

All dimensions in mm. Weight: approx. 1.200 kg TEMAX-3.4B (TEMAX-3.3B, TEMAX-3.2B)

Order specifications

Type Measuring range Example: TEMAX-3.3B 0…200°C
Due to our continuous development we reserve the right to supply equipment which may vary from the described. DEIF A/S , Frisenborgvej 33 DK-7800 Skive, Denmark Tel.: +45 9614 9614, Fax: +45 9614 9615 E-mail: deif@deif.com, URL: www.deif.com
