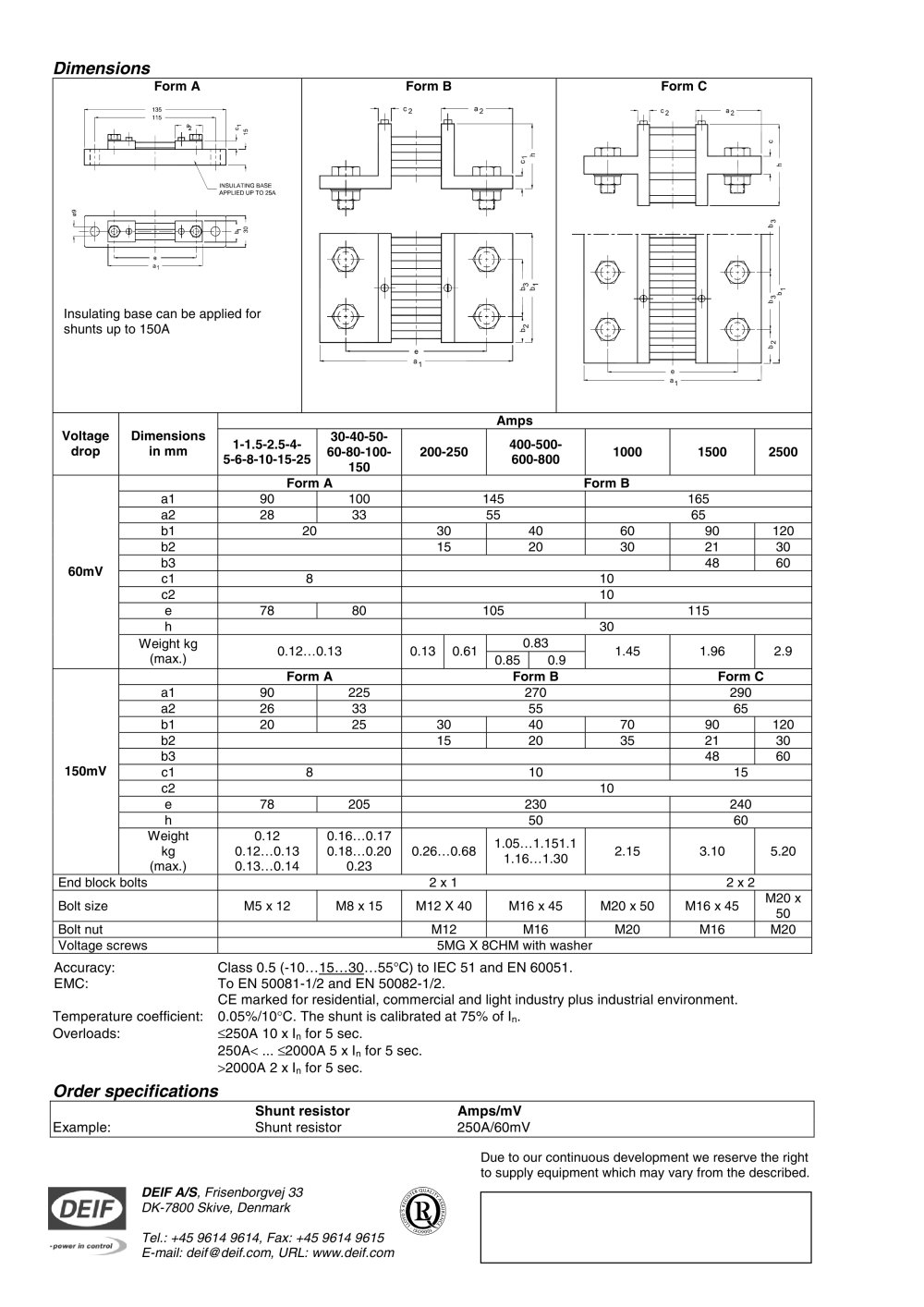

Dimensions

Form A Form B Form C Insulating base can be applied for shunts up to 150A Amps Voltage drop Dimensions in mm 1-1.5-2.5-4- 5-6-8-10-15-25 30-40-50-60-80-100- 150 200-250 400-500- 600-800 1000 1500 2500 Form A Form B a1 90 100 145 165 a2 28 33 55 65 b1 20 30 40 60 90 120 b2 15 20 30 21 30 60mV b3 48 60 c1 8 10 c2 10 e 78 80 105 115 h 30 Weight kg (max.) 0.12…0.13 0.13 0.61 0.85 0.9 1.45 1.96 2.9 0.83 Form A Form B Form C a1 90 225 270 290 a2 26 33 55 65 b1 20 25 30 40 70 90 120 b2 15 20 35 21 30 b3 48 60 150mV c1 8 10 15 c2 10 e 78 205 230 240 h 50 60 Weight kg (max.) 0.12 0.12…0.13 0.13…0.14 0.16…0.17 0.18…0.20 0.23 0.26…0.68 1.05…1.151.11.16…1.30 2.15 3.10 5.20 End block bolts 2 x 1 2 x 2 Bolt size M5 x 12 M8 x 15 M12 X 40 M16 x 45 M20 x 50 M16 x 45 M20 x 50 Bolt nut M12 M16 M20 M16 M20 Voltage screws 5MG X 8CHM with washer

Accuracy: Class 0.5 (-10…15…30 …55°C) to IEC 51 and EN 60051. EMC: To EN 50081-1/2 and EN 50082-1/2. CE marked for residential, commercial and light industry plus industrial environment. Temperature coefficient: 0.05%/10 ° C. The shunt is calibrated at 75% of I

n

. Overloads: ≤ 250A 10 x I

n

for 5 sec. 250A n

for 5 sec. > 2000A 2 x I

n

for 5 sec.

Order specifications

Shunt resistor Amps/mV Example: Shunt resistor 250A/60mV

Due to our continuous development we reserve the right to supply equipment which may vary from the described. DEIF A/S , Frisenborgvej 33 DK-7800 Skive, Denmark Tel.: +45 9614 9614, Fax: +45 9614 9615 E-mail: deif@deif.com, URL: www.deif.com
