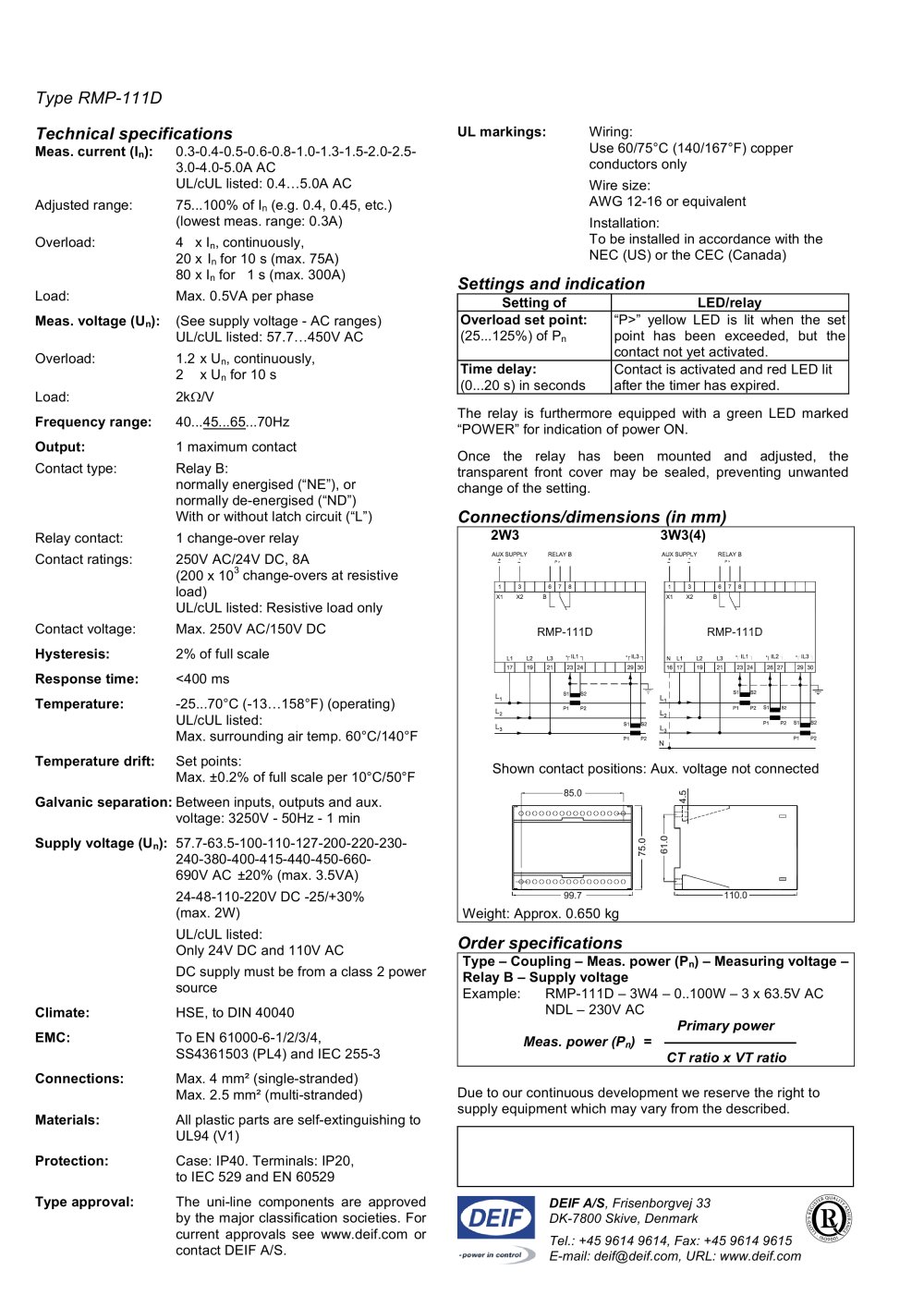

Technical specifications Meas. current (In): 0.3-0.4-0.5-0.6-0.8-1.0-1.3-1.5-2.0-2.5- 3.0-4.0-5.0A AC UL/cUL listed: 0.4…5.0A AC Adjusted range: 75...100% of In (e.g. 0.4, 0.45, etc.) (lowest meas. range: 0.3A) Overload: 4 x In, continuously, 20 x In for 10 s (max. 75A) 80 x In for 1 s (max. 300A) Load: Max. 0.5VA per phase Meas. voltage (Un): (See supply voltage - AC ranges) UL/cUL listed: 57.7…450V AC Overload: 1.2 x Un, continuously, 2 x Un for 10 s Load: 2kÙ/V Frequency range: 40...45...65...70Hz Output: 1 maximum contact Contact type: Relay B: normally energised (“NE”), or normally de-energised (“ND”) With or without latch circuit (“L”) Relay contact: 1 change-over relay Contact ratings: 250V AC/24V DC, 8A (200 x 103 change-overs at resistive load) UL/cUL listed: Resistive load only Contact voltage: Max. 250V AC/150V DC Hysteresis: 2% of full scale Response time: <400 ms Temperature: -25...70°C (-13…158°F) (operating) UL/cUL listed: Max. surrounding air temp. 60°C/140°F Temperature drift: Set points: Max. ±0.2% of full scale per 10°C/50°F Galvanic separation: Between inputs, outputs and aux. voltage: 3250V - 50Hz - 1 min Supply voltage (Un): 57.7-63.5-100-110-127-200-220-230- 240-380-400-415-440-450-660- 690V AC ±20% (max. 3.5VA) 24-48-110-220V DC -25/+30% (max. 2W) UL/cUL listed: Only 24V DC and 110V AC DC supply must be from a class 2 power source Climate: HSE, to DIN 40040 EMC: To EN 61000-6-1/2/3/4, SS4361503 (PL4) and IEC 255-3 Connections: Max. 4 mm² (single-stranded) Max. 2.5 mm² (multi-stranded) Materials: All plastic parts are self-extinguishing to UL94 (V1) Protection: Case: IP40. Terminals: IP20, to IEC 529 and EN 60529 Type approval: The uni-line components are approved by the major classification societies. For current approvals see www.deif.com or contact DEIF A/S. UL markings: Wiring: Use 60/75°C (140/167°F) copper conductors only Wire size: AWG 12-16 or equivalent Installation: To be installed in accordance with the NEC (US) or the CEC (Canada) Settings and indication Setting of LED/relay Overload set point: (25...125%) of Pn “P>” yellow LED is lit when the set point has been exceeded, but the contact not yet activated. Time delay: (0...20 s) in seconds Contact is activated and red LED lit after the timer has expired. The relay is furthermore equipped with a green LED marked “POWER” for indication of power ON. Once the relay has been mounted and adjusted, the transparent front cover may be sealed, preventing unwanted change of the setting. Connections/dimensions (in mm) 2W3 3W3(4) Shown contact positions: Aux. voltage not connected Weight: Approx. 0.650 kg Order specifications Type – Coupling – Meas. power (Pn) – Measuring voltage – Relay B – Supply voltage Example: RMP-111D – 3W4 – 0..100W – 3 x 63.5V AC NDL – 230V AC Primary power Meas. power (Pn) = CT ratio x VT ratio Type RMP-111D Due to our continuous development we reserve the right to supply equipment which may vary from the described. DEIF A/S, Frisenborgvej 33 DK-7800 Skive, Denmark Tel.: +45 9614 9614, Fax: +45 9614 9615 E-mail: deif@deif.com, URL: www.deif.com
