Loss of Mains Relay – type LMR-111D - DEIF - #2

Text version of the page

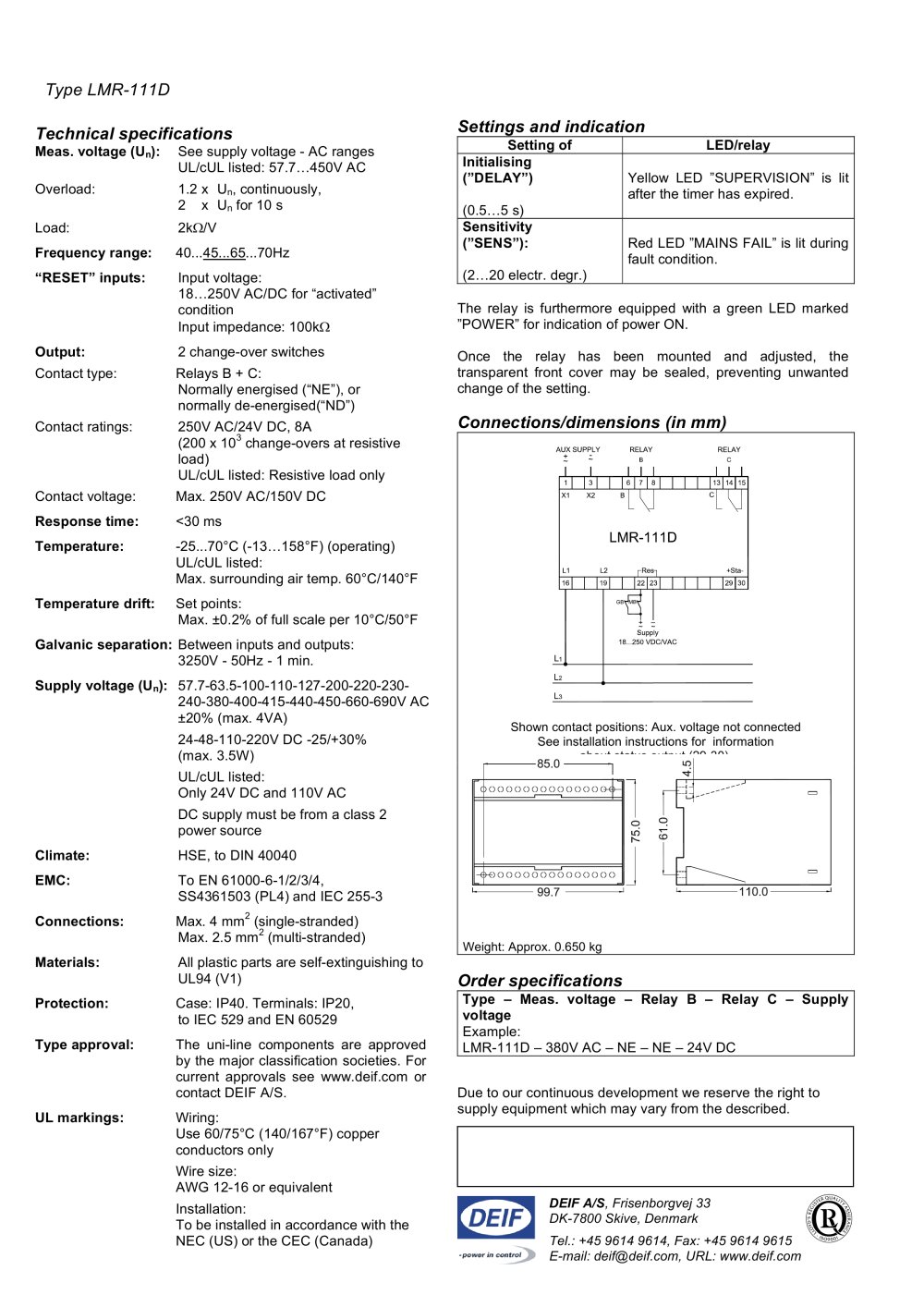

Technical specifications Meas. voltage (Un): See supply voltage - AC ranges UL/cUL listed: 57.7…450V AC Overload: 1.2 x Un, continuously, 2 x Un for 10 s Load: 2kÙ/V Frequency range: 40...45...65...70Hz “RESET” inputs: Input voltage: 18…250V AC/DC for “activated” condition Input impedance: 100kÙ Output: 2 change-over switches Contact type: Relays B + C: Normally energised (“NE”), or normally de-energised(“ND”) Contact ratings: 250V AC/24V DC, 8A (200 x 103 change-overs at resistive load) UL/cUL listed: Resistive load only Contact voltage: Max. 250V AC/150V DC Response time: <30 ms Temperature: -25...70°C (-13…158°F) (operating) UL/cUL listed: Max. surrounding air temp. 60°C/140°F Temperature drift: Set points: Max. ±0.2% of full scale per 10°C/50°F Galvanic separation: Between inputs and outputs: 3250V - 50Hz - 1 min. Supply voltage (Un): 57.7-63.5-100-110-127-200-220-230- 240-380-400-415-440-450-660-690V AC ±20% (max. 4VA) 24-48-110-220V DC -25/+30% (max. 3.5W) UL/cUL listed: Only 24V DC and 110V AC DC supply must be from a class 2 power source Climate: HSE, to DIN 40040 EMC: To EN 61000-6-1/2/3/4, SS4361503 (PL4) and IEC 255-3 Connections: Max. 4 mm2 (single-stranded) Max. 2.5 mm2 (multi-stranded) Materials: All plastic parts are self-extinguishing to UL94 (V1) Protection: Case: IP40. Terminals: IP20, to IEC 529 and EN 60529 Type approval: The uni-line components are approved by the major classification societies. For current approvals see www.deif.com or contact DEIF A/S. UL markings: Wiring: Use 60/75°C (140/167°F) copper conductors only Wire size: AWG 12-16 or equivalent Installation: To be installed in accordance with the NEC (US) or the CEC (Canada) Settings and indication Setting of LED/relay Initialising (”DELAY”) (0.5…5 s) Yellow LED ”SUPERVISION” is lit after the timer has expired. Sensitivity (”SENS”): (2…20 electr. degr.) Red LED ”MAINS FAIL” is lit during fault condition. The relay is furthermore equipped with a green LED marked ”POWER” for indication of power ON. Once the relay has been mounted and adjusted, the transparent front cover may be sealed, preventing unwanted change of the setting. Connections/dimensions (in mm) Shown contact positions: Aux. voltage not connected See installation instructions for information about status output (29-30). Weight: Approx. 0.650 kg Order specifications Type – Meas. voltage – Relay B – Relay C – Supply voltage Example: LMR-111D – 380V AC – NE – NE – 24V DC Type LMR-111D Due to our continuous development we reserve the right to supply equipment which may vary from the described. DEIF A/S, Frisenborgvej 33 DK-7800 Skive, Denmark Tel.: +45 9614 9614, Fax: +45 9614 9615 E-mail: deif@deif.com, URL: www.deif.com
