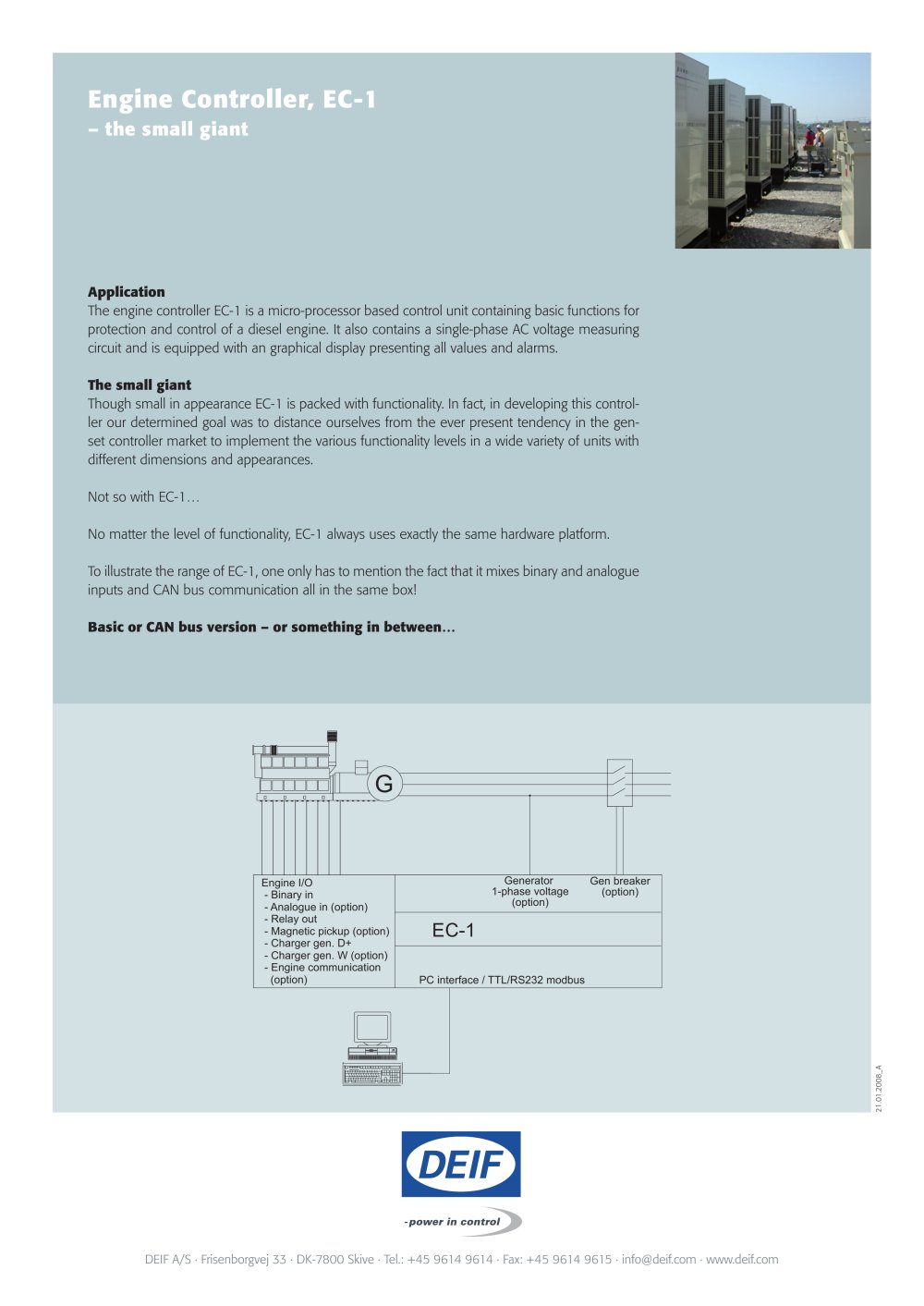

Engine Controller, EC-1

– the small giant

Application Basic or CAN bus version – or something in between… The engine controller EC-1 is a micro-processor based control unit containing basic functions for protection and control of a diesel engine. It also contains a single-phase AC voltage measuring circuit and is equipped with an graphical display presenting all values and alarms. The small giant Though small in appearance EC-1 is packed with functionality. In fact, in developing this control- ler our determined goal was to distance ourselves from the ever present tendency in the gen- set controller market to implement the various functionality levels in a wide variety of units with different dimensions and appearances.Not so with EC-1… No matter the level of functionality, EC-1 always uses exactly the same hardware platform. To illustrate the range of EC-1, one only has to mention the fact that it mixes binary and analogue inputs and CAN bus communication all in the same box!

G

Engine I/O - Binary in - Analogue in (option) - Relay out - Magnetic pickup (option) - Charger gen. D+ - Charger gen. W (option) - Engine communication (option) Gen breaker(option)

EC-1

PC interface / TTL/RS232 modbusGenerator 1-phase voltage(option) 21.01.2008_A DEIF A/S · Frisenborgvej 33 · DK-7800 Skive · Tel.: +45 9614 9614 · Fax: +45 9614 9615 · info@deif.com · www.deif.com
