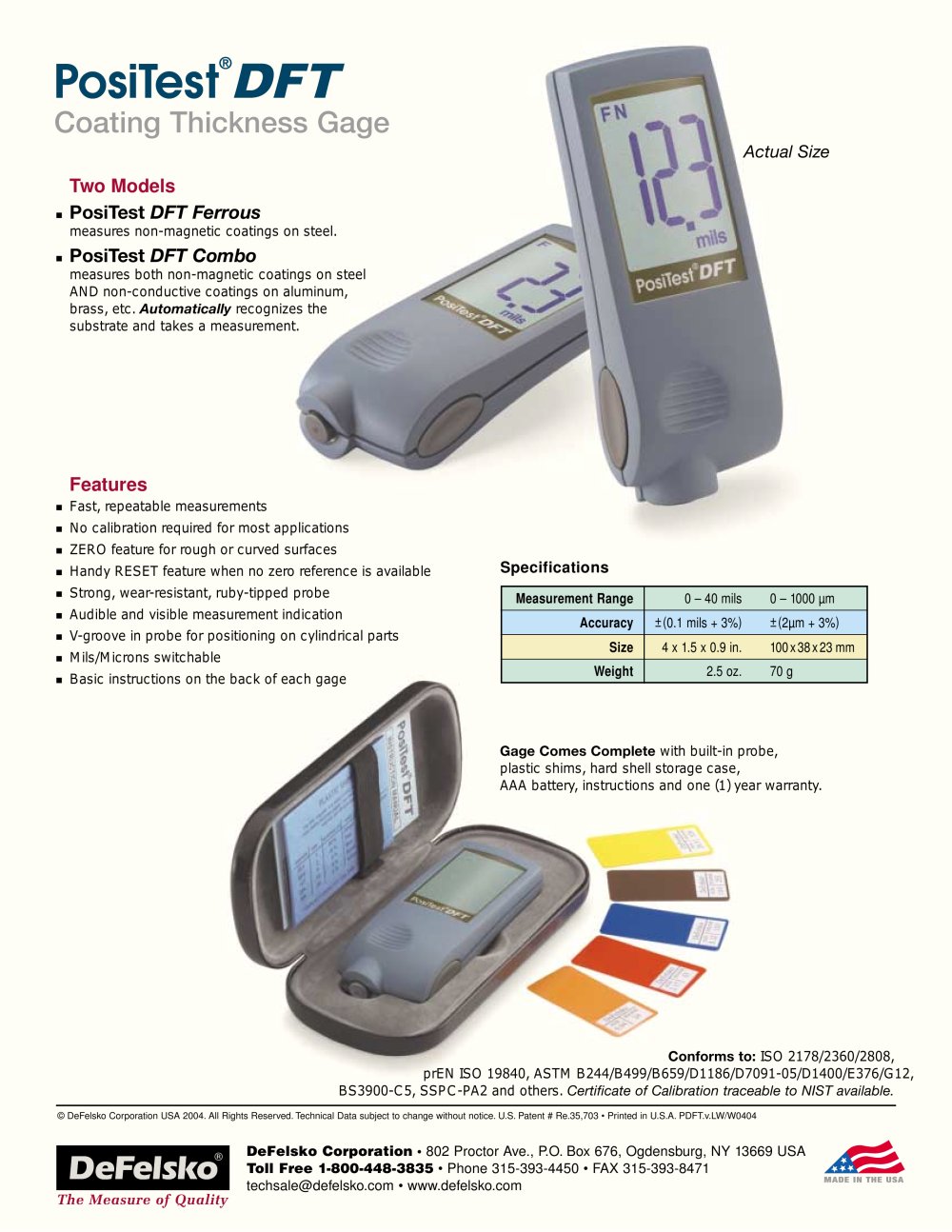

| PosiTesfDFT Coating Thickness Gage | |||||||||||||||||||||||||||||||||||||||
| Actual Size | |||||||||||||||||||||||||||||||||||||||
| Two Models PosiTest DFT Ferrous measures non-magnetic coatings on steel. PosiTest DFT Combo measures both non-magnetic coatings on steel AND non-conductive coatings on aluminum, brass, etc. Automatically recognizes the substrate and takes a measurement. | |||||||||||||||||||||||||||||||||||||||
| ■ | |||||||||||||||||||||||||||||||||||||||
| ■ | |||||||||||||||||||||||||||||||||||||||
| Features Fast, repeatable measurements No calibration required for most applications ZERO feature for rough or curved surfaces Handy RESET feature when no zero reference is available Strong, wear-resistant, ruby-tipped probe Audible and visible measurement indication V-groove in probe for positioning on cylindrical parts Mils/Microns switchable Basic instructions on the back of each gage | |||||||||||||||||||||||||||||||||||||||
| Specifications | |||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||
| Gage Comes Complete with built-in probe, plastic shims, hard shell storage case, AAA battery, instructions and one (1)year warranty. | |||||||||||||||||||||||||||||||||||||||
| Conforms to: ISO 2178/2360/2808, prEN ISO 19840, ASTM B244/B499/B659/D1186/D7091-05/D1400/E376/G12, BS3900-C5, SSPC-PA2 and others. Certificate of Calibration traceable to NIST available. | |||||||||||||||||||||||||||||||||||||||
| © DeFelsko Corporation USA 2004. All Rights Reserved. Technical Data subject to change without notice. U.S. Patent # Re.35,703 • Printed in U.S.A. PDFT.V.LW/W0404 | |||||||||||||||||||||||||||||||||||||||
| DeFelsko Corporation • 802 Proctor Ave., P.O. Box 676, Ogdensburg, NY 13669 USA Toll Free 1-800-448-3835 • Phone 315-393-4450 • FAX 315-393-8471 techsale@defelsko.com • www.defelsko.com | |||||||||||||||||||||||||||||||||||||||
| DeFelsko | |||||||||||||||||||||||||||||||||||||||
| MADE IN THE USA | |||||||||||||||||||||||||||||||||||||||
| The Measure of Quality | |||||||||||||||||||||||||||||||||||||||
