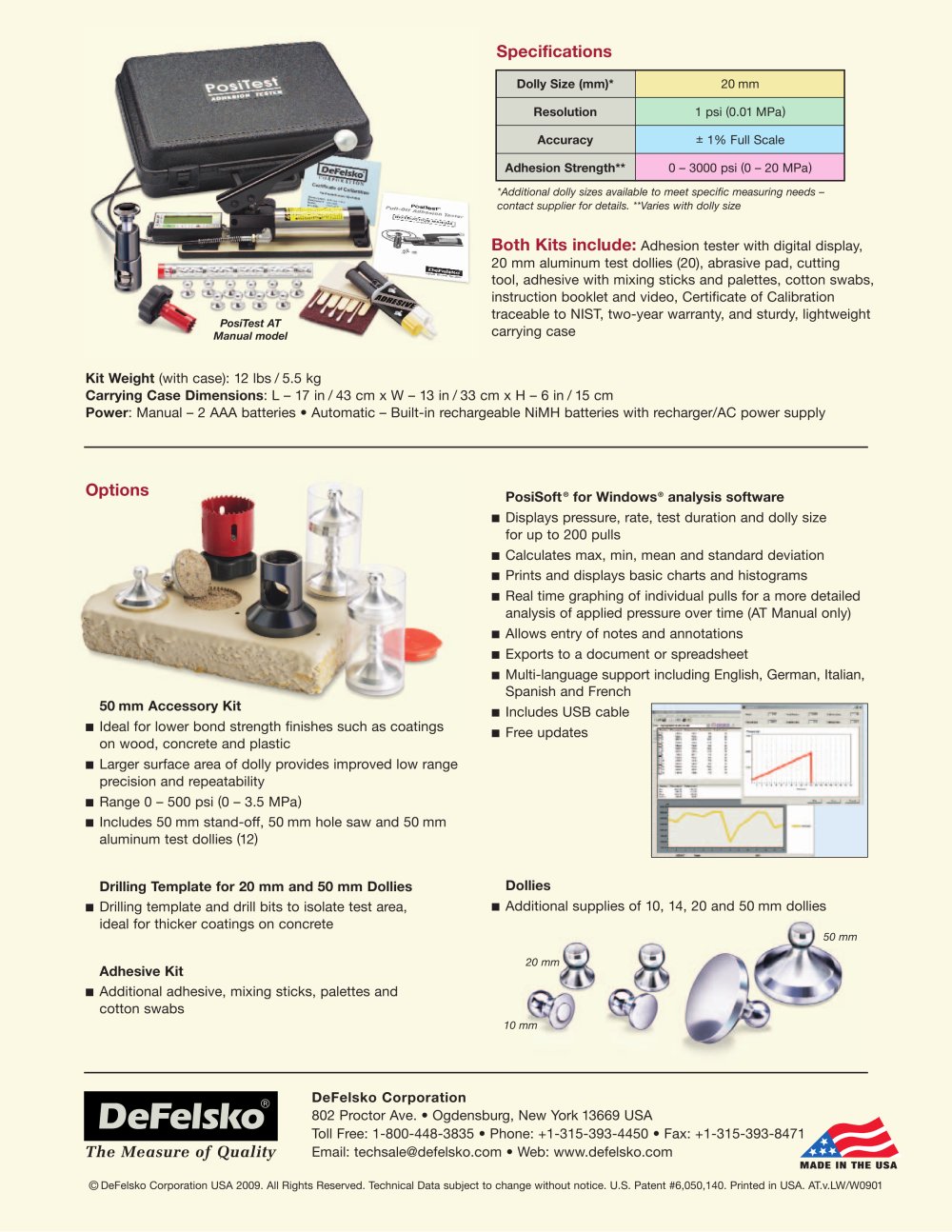

Specifications

Dolly Size (mm)* 20mm0 – 3000 psi (0 – 20 MPa)±1% Full Scale ResolutionAccuracyAdhesion Strength** 1 psi (0.01MPa) *Additional dolly sizes available to meet specific measuring needs –contact supplier for details. **Varies with dolly size

Both Kits include:

Adhesion tester with digital display, 20 mm aluminum test dollies (20), abrasive pad, cutting tool, adhesive with mixing sticks and palettes, cotton swabs, instruction booklet and video, Certificate of Calibration traceable to NIST, two-year warranty, and sturdy, lightweight carrying case
PosiTest AT Manual model Kit Weight (with case): 12 lbs/5.5 kg Carrying Case Dimensions : L – 17 in/43 cm x W – 13 in/33 cm x H – 6 in/15 cm Power : Manual –2 AAA batteries • Automatic –Built-in rechargeable NiMH batteries with recharger/AC power supply

Options

PosiSoft
® for Windows
® analysis software
â–  Displays pressure, rate, test duration and dolly size for up to 200 pulls
â–  Calculates max, min, mean and standard deviation
â–  Prints and displays basic charts and histograms
â–  Real time graphing of individual pulls for a more detailed analysis of applied pressure over time (AT Manual only)
â–  Allows entry of notes and annotations
â–  Exports to a document or spreadsheet
â–  Multi-language support including English, German, Italian, Spanish and French 50mm Accessory Kit
â–  Includes USB cable
â–  Ideal for lower bond strength finishes such as coatings on wood, concrete and plastic
â–  Free updates
â–  Larger surface area of dolly provides improved low range precision and repeatability
â–  Range 0 – 500 psi (0 – 3.5 MPa)
â–  Includes 50mm stand-off, 50mm hole saw and 50mm aluminum test dollies (12) Drilling Template for 20 mm and 50 mm Dollies Dollies
â–  Drilling template and drill bits to isolate test area, ideal for thicker coatings on concrete
â–  Additional supplies of 10, 14, 20 and 50mm dollies
50 mm20 mm10 mm Adhesive Kit
â–  Additional adhesive, mixing sticks, palettes and cotton swabs DeFelsko Corporation 802 Proctor Ave. • Ogdensburg, New York13669 USA Toll Free: 1-800-448-3835 • Phone: +1-315-393-4450 • Fax: +1-315-393-8471 Email: techsale@defelsko.com • Web: www.defelsko.com

The Measure of Quality

© DeFelsko Corporation USA 2009. All Rights Reserved. Technical Data subject to change without notice. U.S. Patent #6,050,140. Printed in USA. AT.v.LW/W0901
