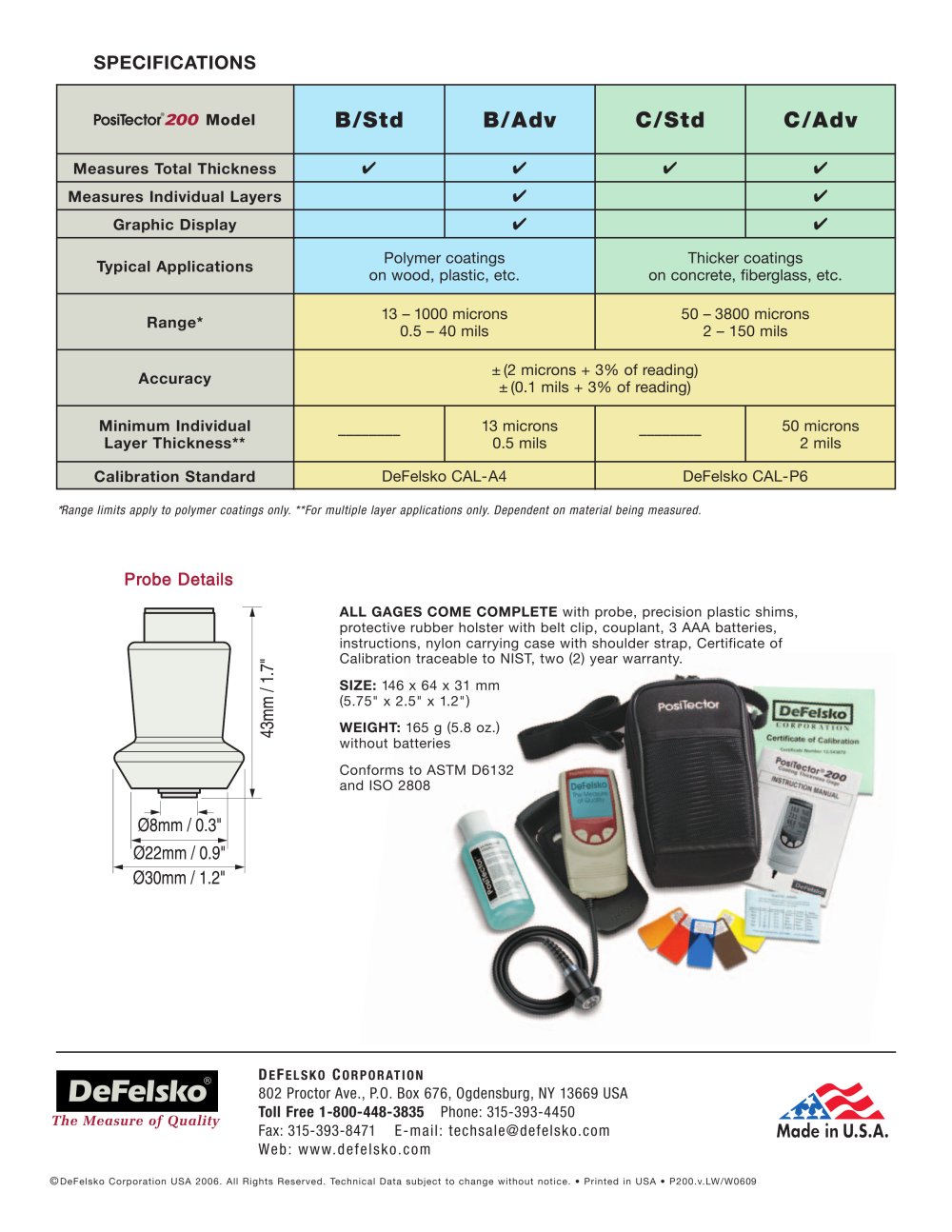

SPECIFICATIONS


PosiTector"200 Model	B/Std	B/Adv	C/Std	C/Adv
Measures Total Thickness	✓	✓	✓	✓
Measures Individual Layers		✓		✓
Graphic Display		✓		✓
Typical Applications	Polymer coatings on wood, plastic, etc.		Thicker coatings on concrete, fiberglass, etc.
Range*	13-1000 microns 0.5 - 40 mils		50-3800 microns 2 -150 mils
Accuracy	± (2 microns + 3% of reading) ±(0.1 mils + 3% of reading)
Minimum Individual Layer Thickness**		13 microns 0.5 mils		50 microns 2 mils
Calibration Standard	DeFelsko CAL-A4		DeFelsko CAL-P6

flange limits apply to polymer coatings only. "For multiple layer applications only. Dependent on material being measured.

Probe Details

ALL GAGES COME COMPLETE with probe, precision plastic shims, protective rubber holster with belt clip, couplant, 3 AAA batteries, instructions, nylon carrying case with shoulder strap, Certificate of Calibration traceable to NIST, two (2) year warranty.

SIZE: 146 x 64 x 31 mm (5.75" x 2.5" x 1.2

WEIGHT: 165 g (5.8 oz without batteries

Conforms to AST M D6132 and ISO 2808

-J L-08mm/0.3"

022mm /0.9" 030mm/1.2"

DeFelsko Corporation

802 Proctor Ave., P.O. Box 676, Ogdensburg, NY 13669 USA Toll Free 1-800-448-3835 Phone: 315-393-4450 Fax:315-393-8471 E-mail: techsale@defelsko.com Web: www.defelsko.com

DeFelsko

The Measure of Quality

Made in U.S.A.
