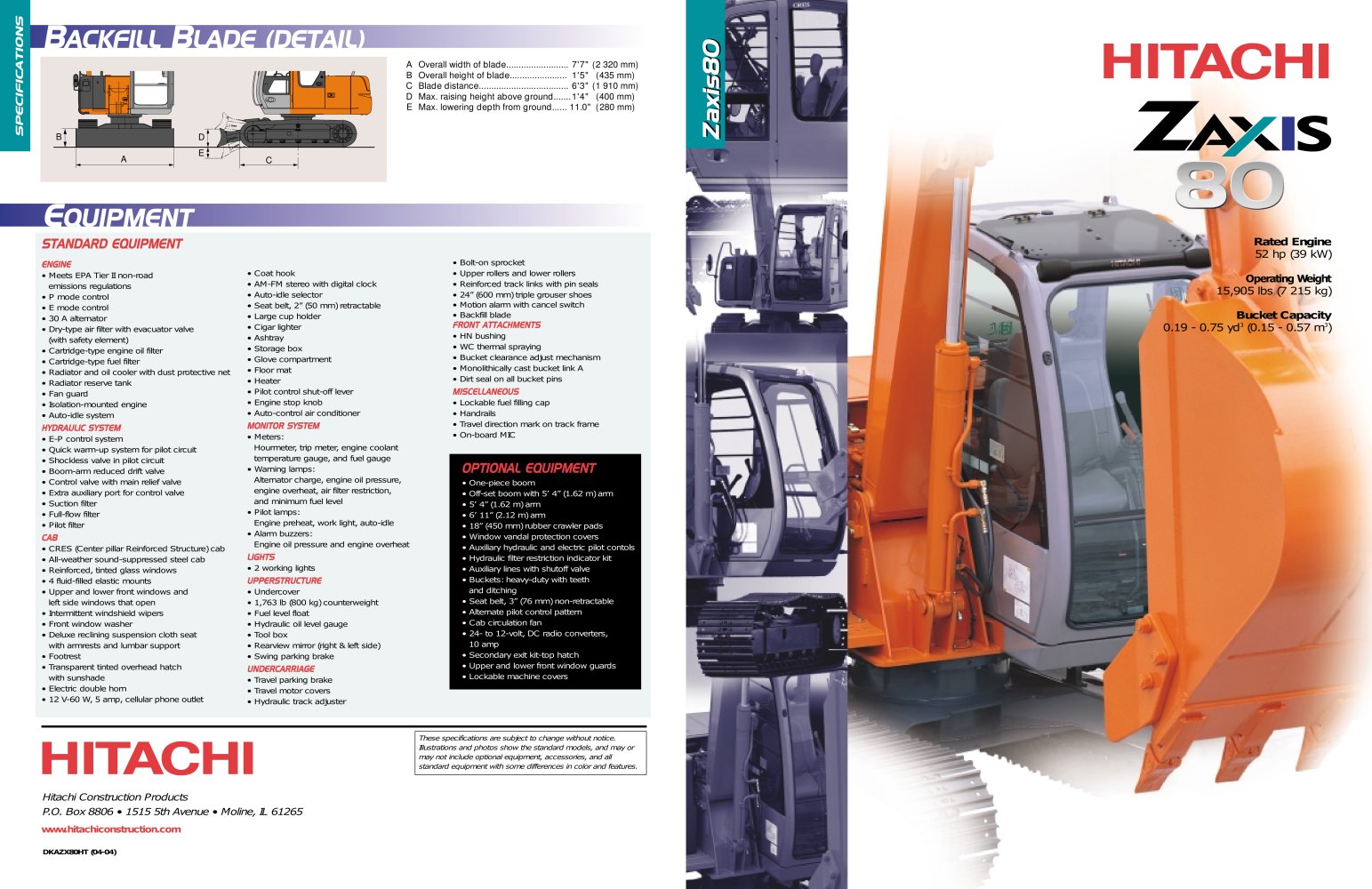

Zaxis 80 Excavator - Deere-Hitachi Construction Machinery - #1

A Overall width of blade.........................7'7" (2 320 mm)

B Overall height of blade....................... 1'5" (435 mm)

C Blade distance....................................6'3" (1 910 mm)

D Max. raising height above ground.......1'4" (400 mm)

E Max. lowering depth from ground......11.0" (280 mm)

• Meets EPA Tier II non-road emissions regulations P mode control E mode control 30 A alternator

Dry-type air filter with evacuator valve (with safety element) Cartridge-type engine oil filter Cartridge-type fuel filter Radiator and oil cooler with dust protective net Radiator reserve tank Fan guard

Isolation-mounted engine Auto-idle system HYDRAULIC SYSTEM E-P control system

Quick warm-up system for pilot circuit Shockless valve in pilot circuit Boom-arm reduced drift valve Control valve with main relief valve Extra auxiliary port for control valve Suction filter Full-flow filter Pilot filter CAB

CRES (Center pillar Reinforced Structure) cab

All-weather sound-suppressed steel cab

Reinforced, tinted glass windows

4 fluid-filled elastic mounts

Upper and lower front windows and

left side windows that open

Intermittent windshield wipers

Front window washer

Deluxe reclining suspension cloth seat

with armrests and lumbar support

Footrest

Transparent tinted overhead hatch with sunshade Electric double horn

12 V-60 W, 5 amp, cellular phone outlet

• Bolt-on sprocket

• Upper rollers and lower rollers

• Reinforced track links with pin seals

• 24" (600 mm) triple grouser shoes

• Motion alarm with cancel switch

• Backfill blade FRONT ATTACHMENTS

• HN bushing

• WC thermal spraying

• Bucket clearance adjust mechanism

• Monolithically cast bucket link A

• Dirt seal on all bucket pins MISCELLANEOUS

• Lockable fuel filling cap

• Handrails

• Travel direction mark on track frame

• On-board MIC

• Coat hook

• AM-FM stereo with digital clock

• Auto-idle selector

• Seat belt, 2" (50 mm) retractable

• Large cup holder

• Cigar lighter

• Ashtray

• Storage box

• Glove compartment

• Floor mat

• Heater

• Pilot control shut-off lever

• Engine stop knob

• Auto-control air conditioner MONITOR SYSTEM

• Meters:

Hourmeter, trip meter, engine coolant temperature gauge, and fuel gauge

• Warning lamps:

Alternator charge, engine oil pressure, engine overheat, air filter restriction, and minimum fuel level

• Pilot lamps:

Engine preheat, work light, auto-idle

• Alarm buzzers:

Engine oil pressure and engine overheat

• 2 working lights UPPERSTRUCTURE

• Undercover

• 1,763 lb (800 kg) counterweight

• Fuel level float

• Hydraulic oil level gauge

• Tool box

• Rearview mirror (right & left side)

• Swing parking brake UNDERCARRIAGE

• Travel parking brake

• Travel motor covers

• Hydraulic track adjuster

• One-piece boom

• Off-set boom with 5' 4" (1.62 m) arm

• 5' 4" (1.62 m) arm

• 6' 11" (2.12 m) arm

• 18" (450 mm) rubber crawler pads

• Window vandal protection covers

• Auxiliary hydraulic and electric pilot contols

• Hydraulic filter restriction indicator kit

• Auxiliary lines with shutoff valve

• Buckets: heavy-duty with teeth and ditching

• Seat belt, 3" (76 mm) non-retractable

• Alternate pilot control pattern

• Cab circulation fan

• 24- to 12-volt, DC radio converters, 10 amp

• Secondary exit kit-top hatch

• Upper and lower front window guards

• Lockable machine covers
