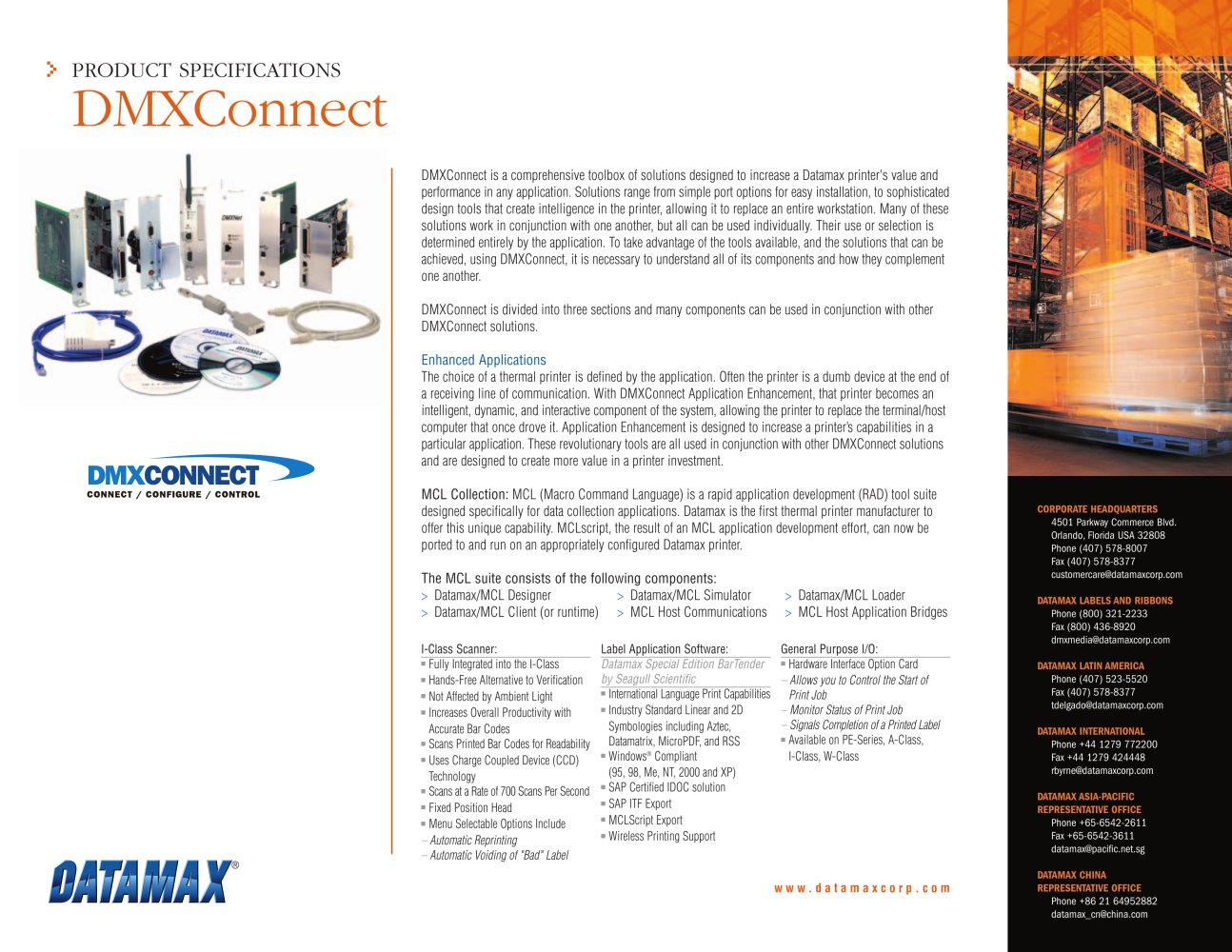

PRODUCT SPECIFICATIONS

DMXConnect

DMXConnect is a comprehensive toolbox of solutions designed to increase a Datamax printer's value and performance in any application. Solutions range from simple port options for easy installation, to sophisticated design tools that create intelligence in the printer, allowing it to replace an entire workstation. Many of these solutions work in conjunction with one another, but all can be used individually. Their use or selection is determined entirely by the application. To take advantage of the tools available, and the solutions that can be achieved, using DMXConnect, it is necessary to understand all of its components and how they complement one another.

DMXConnect is divided into three sections and many components can be used in conjunction with other DMXConnect solutions.

Enhanced Applications

The choice of a thermal printer is defined by the application. Often the printer is a dumb device at the end of a receiving line of communication. With DMXConnect Application Enhancement, that printer becomes an intelligent, dynamic, and interactive component of the system, allowing the printer to replace the terminal/host computer that once drove it. Application Enhancement is designed to increase a printer's capabilities in a particular application. These revolutionary tools are all used in conjunction with other DMXConnect solutions and are designed to create more value in a printer investment.

MCL Collection: MCL (Macro Command Language) is a rapid application development (RAD) tool suite designed specifically for data collection applications. Datamax is the first thermal printer manufacturer to offer this unique capability. MCLscript, the result of an MCL application development effort, can now be ported to and run on an appropriately configured Datamax printer.

4501 Parkway Commerce Blvd. Orlando, Florida USA 32808 Phone (407) 578-8007

Fax (407) 578-8377

customercare@datamaxcorp.com datamax labels and ribbons

Phone (800) 321-2233

Fax (800) 436-8920 dmxmedia@datamaxcorp.com

Phone (407) 523-5520

Fax (407) 578-8377 tdelgado@datamaxcorp.com

Phone +44 1279 772200 Fax +44 1279 424448 rbyrne@datamaxcorp.com

Phone +65-6542-2611 Fax +65-6542-3611

datamax@pacific.net.sg

Phone +86 21 64952882

datamax_cn@china.com

The MCL suite consists of the following components:

> Datamax/MCL Designer > Datamax/MCL Simulator

> Datamax/MCL Client (or runtime) > MCL Host Communications

> Datamax/MCL Loader

> MCL Host Application Bridges

General Purpose I/O:

■ Hardware Interface Option Card

- Signals Completion of a Printed Label • Available on PE-Series, A-Class,

I-Class, W-Class

I-Class Scanner:

Label Application Software: Datamax Special Edition BarTender by Seagull Scientific

■ International Language Print Capabilities

■ Industry Standard Linear and 2D Symbologies including Aztec, Datamatrix, MicroPDF, and RSS

^ Windows® Compliant (95, 98, Me, NT, 2000 and XP)

■ SAP Certified IDOC solution

■ SAP ITF Export

■ MCLScript Export

^ Wireless Printing Support

■ Fully Integrated into the I-Class

■ Hands-Free Alternative to Verification

■ Not Affected by Ambient Light

^ Increases Overall Productivity with

Accurate Bar Codes ^ Scans Printed Bar Codes for Readability ^ Uses Charge Coupled Device (CCD)

Technology ^ Scans at a Rate of 700 Scans Per Second ^ Fixed Position Head ^ Menu Selectable Options Include
