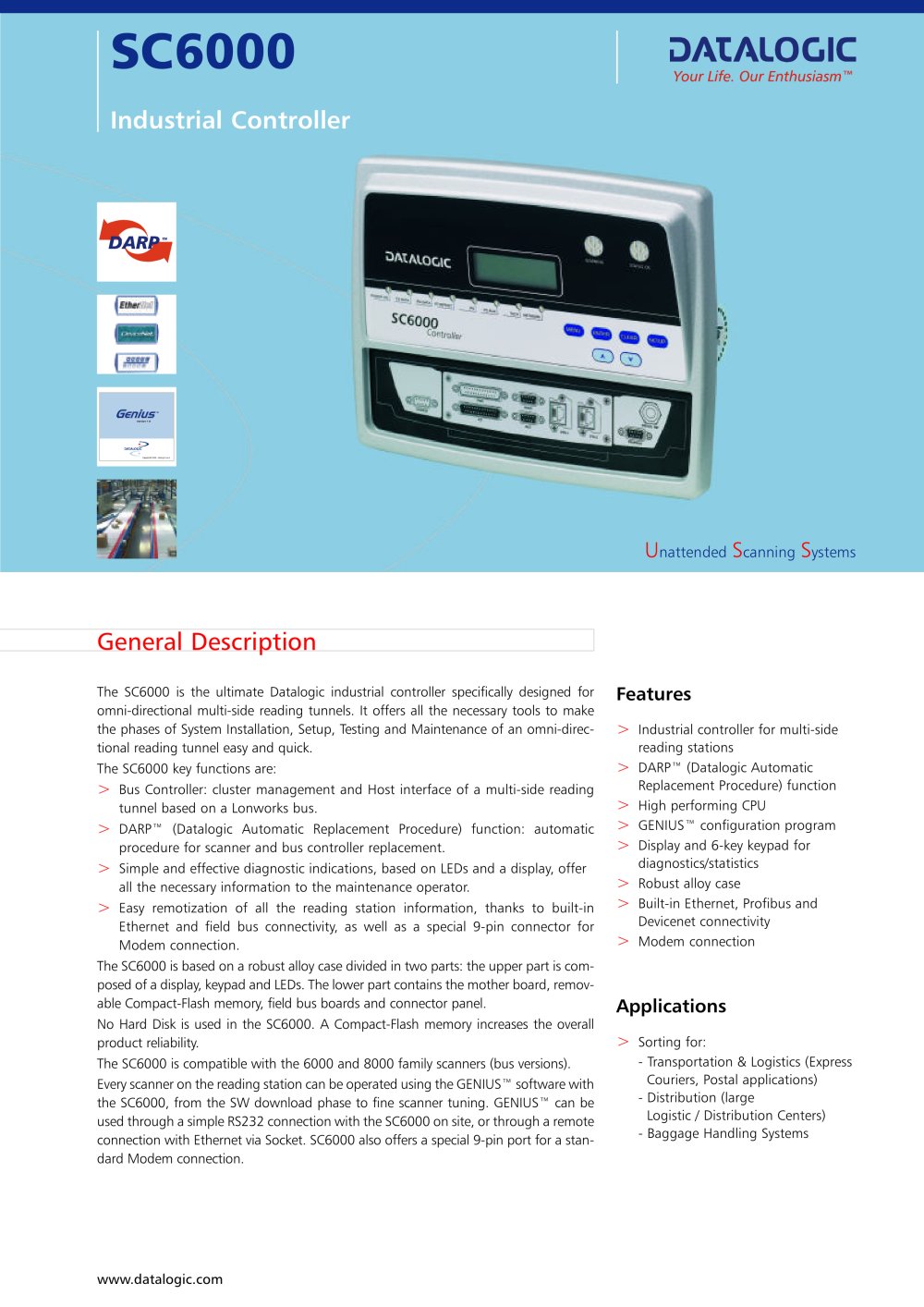

SC6000 Industrial Controller

U

nattended

S

canning

S

ystems

General Description

The SC6000 is the ultimate Datalogic industrial controller specifically designed foromni-directional multi-side reading tunnels. It offers all the necessary tools to make the phases of System Installation, Setup, Testing and Maintenance of an omni-direc- tional reading tunnel easy and quick.The SC6000 key functions are:

>

Industrial controller for multi-side reading stations

>

DARP™ (Datalogic Automatic Replacement Procedure) function

>

Bus Controller: cluster management and Host interface of a multi-side readingtunnel based on a Lonworks bus.

>

High performing CPU

>

DARP™ (Datalogic Automatic Replacement Procedure) function: automatic procedure for scanner and bus controller replacement.

>

GENIUS™ configuration program

>

Display and 6-key keypad for diagnostics/statistics

>

Simple and effective diagnostic indications, based on LEDs and a display, offer all the necessary information to the maintenance operator.

>

Robust alloy case

>

Easy remotization of all the reading station information, thanks to built-in Ethernet and field bus connectivity, as well as a special 9-pin connector for Modem connection.The SC6000 is based on a robust alloy case divided in two parts: the upper part is com-posed of a display, keypad and LEDs. The lower part contains the mother board, remov- able Compact-Flash memory, field bus boards and connector panel. No Hard Disk is used in the SC6000. A Compact-Flash memory increases the overallproduct reliability. The SC6000 is compatible with the 6000 and 8000 family scanners (bus versions).Every scanner on the reading station can be operated using the GENIUS™ software withthe SC6000, from the SW download phase to fine scanner tuning. GENIUS™ can be used through a simple RS232 connection with the SC6000 on site, or through a remote connection with Ethernet via Socket. SC6000 also offers a special 9-pin port for a stan- dard Modem connection.

>

Built-in Ethernet, Profibus and Devicenet connectivity

>

Modem connection

Applications Features

>

Sorting for:- Transportation & Logistics (Express Couriers, Postal applications)- Distribution (large Logistic / Distribution Centers)- Baggage Handling Systems www.datalogic.com
