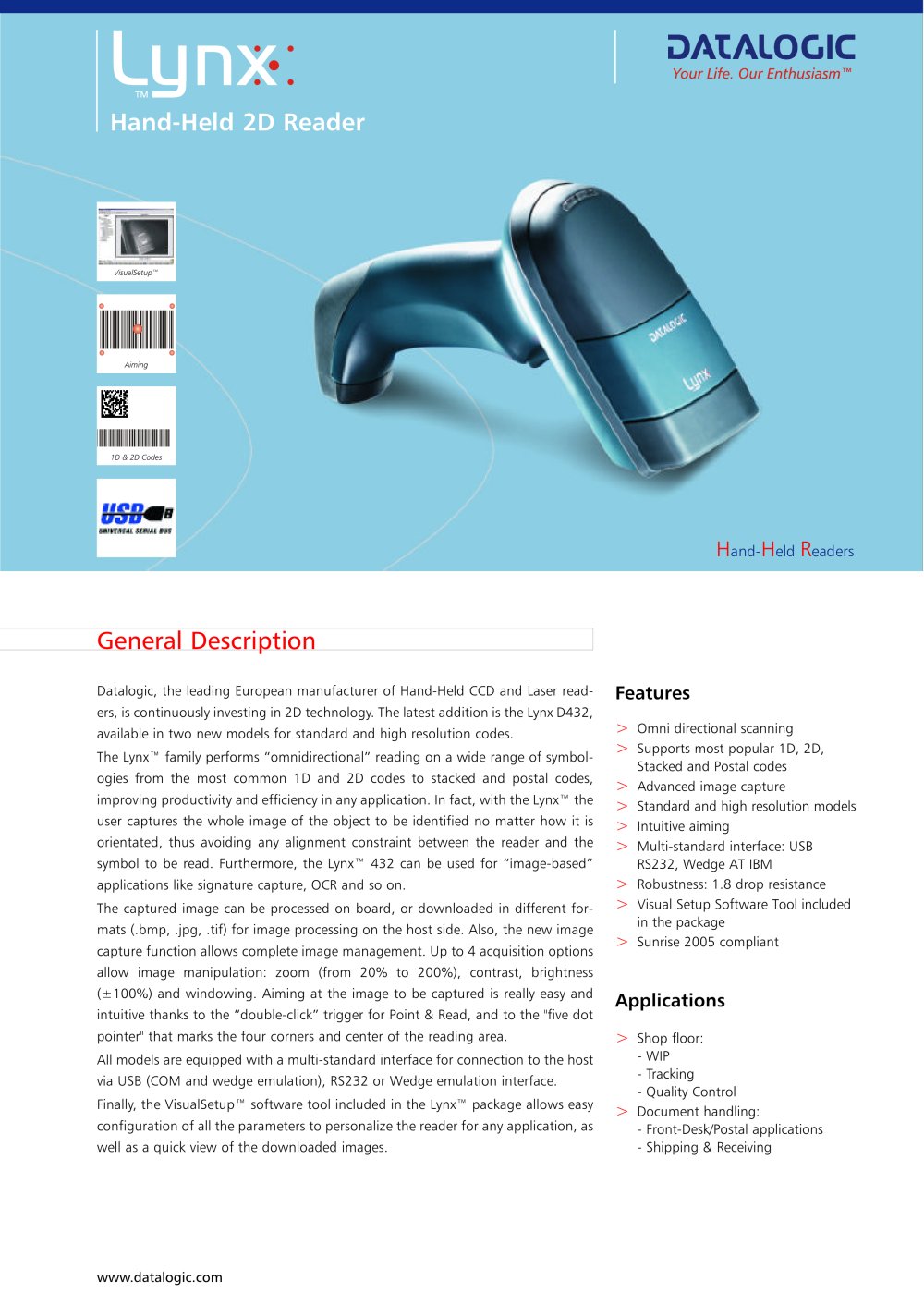

Hand-Held 2D Reader

1D & 2D Codes Aiming VisualSetup™

H

and-

H

eld

R

eaders

General Description

Datalogic, the leading European manufacturer of Hand-Held CCD and Laser read-ers, is continuously investing in 2D technology. The latest addition is the Lynx D432,available in two new models for standard and high resolution codes.The Lynx™ family performs “omnidirectional” reading on a wide range of symbol-ogies from the most common 1D and 2D codes to stacked and postal codes,improving productivity and efficiency in any application. In fact, with the Lynx™ theuser captures the whole image of the object to be identified no matter how it isorientated, thus avoiding any alignment constraint between the reader and thesymbol to be read. Furthermore, the Lynx™ 432 can be used for “image-based”applications like signature capture, OCR and so on. The captured image can be processed on board, or downloaded in different for-mats (.bmp, .jpg, .tif) for image processing on the host side. Also, the new image capture function allows complete image management. Up to 4 acquisition optionsallow image manipulation: zoom (from 20% to 200%), contrast, brightness(±100%) and windowing. Aiming at the image to be captured is really easy andintuitive thanks to the “double-click” trigger for Point & Read, and to the "five dotpointer" that marks the four corners and center of the reading area.All models are equipped with a multi-standard interface for connection to the hostvia USB (COM and wedge emulation), RS232 or Wedge emulation interface. Finally, the VisualSetup™ software tool included in the Lynx™ package allows easyconfiguration of all the parameters to personalize the reader for any application, as well as a quick view of the downloaded images.

>

Omni directional scanning

>

Supports most popular 1D, 2D, Stacked and Postal codes

>

Advanced image capture

>

Standard and high resolution models

>

Intuitive aiming

>

Multi-standard interface: USB RS232, Wedge AT IBM

>

Robustness: 1.8 drop resistance

>

Visual Setup Software Tool included in the package

>

Sunrise 2005 compliant

Applications Features

>

Shop floor: - WIP - Tracking - Quality Control

>

Document handling: - Front-Desk/Postal applications - Shipping & Receiving www.datalogic.com
