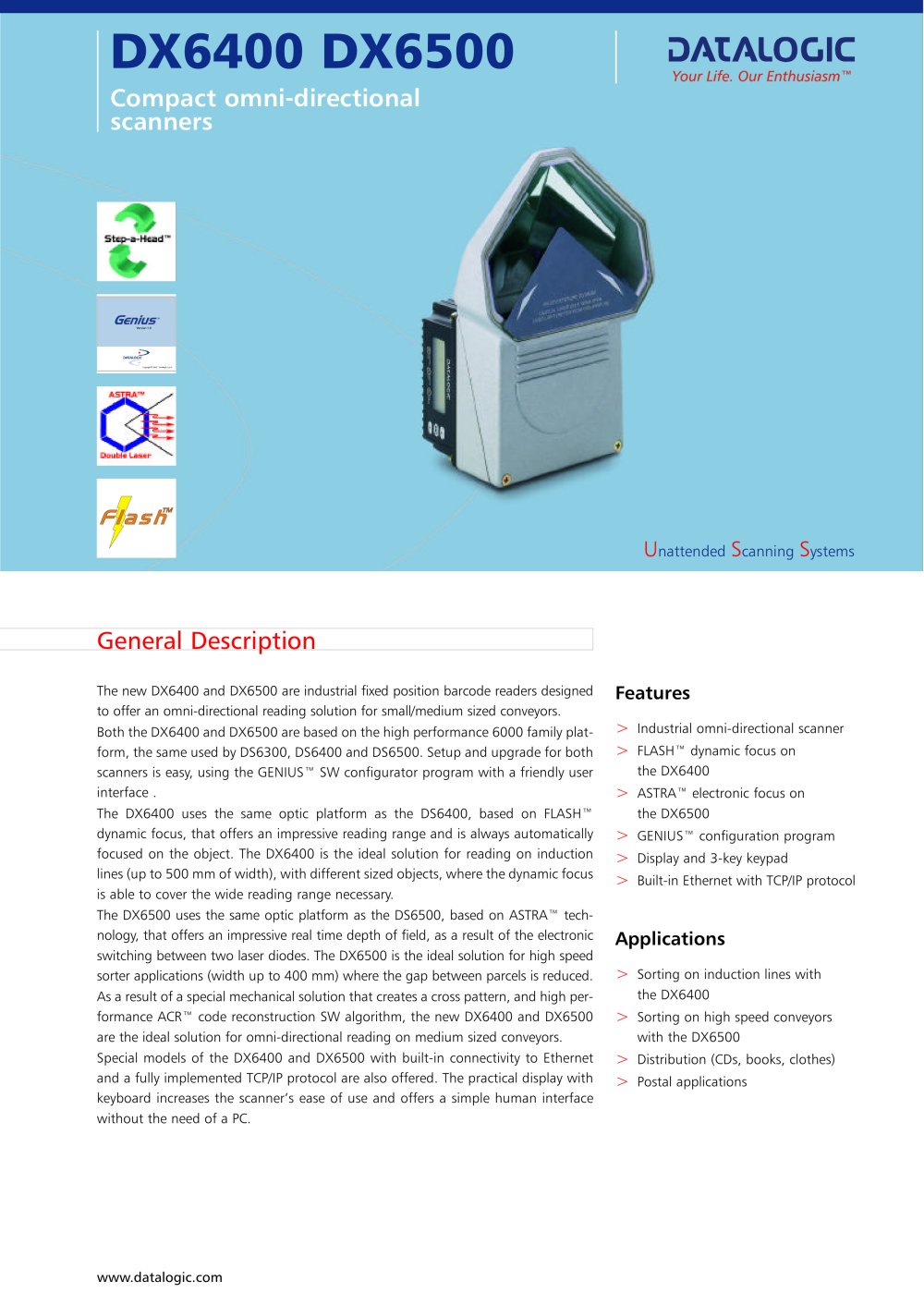

Compact omni-directional
scanners DX6400 DX6500
U
nattended
S
canning
S
ystems
>
Industrial omni-directional
scanner General Description
>
FLASH™ dynamic focus on the DX6400
>
ASTRA™ electronic focus on the DX6500 The new DX6400 and DX6500 are industrial fixed position
barcode readers designed
to offer an omni-directional reading solution for small/medium sized conveyors.
Both the DX6400 and DX6500 are based on the high performance 6000 family plat-
form, the same used by DS6300, DS6400 and DS6500. Setup and upgrade for both
scanners is easy, using the GENIUS™ SW configurator program with a friendly user
interface .
The DX6400 uses the same optic platform as the DS6400, based on FLASH™
dynamic focus, that offers an impressive reading range and is always automatically
focused on the object. The DX6400 is the ideal solution for reading on induction
lines (up to 500 mm of width), with different sized objects, where the dynamic focus
is able to cover the wide reading range necessary. The DX6500 uses the same optic platform as the DS6500, based on ASTRA™ tech-
nology, that offers an impressive real time depth of field, as a result of the electronic
switching between two laser diodes. The DX6500 is the ideal solution for high speed
sorter applications (width up to 400 mm) where the gap between parcels is reduced.
As a result of a special mechanical solution that creates a cross pattern, and high per-
formance ACR™ code reconstruction SW algorithm, the new DX6400 and DX6500
are the ideal solution for omni-directional reading on medium sized conveyors.
Special models of the DX6400 and DX6500 with built-in connectivity to Ethernet
and a fully implemented TCP/IP protocol are also offered. The practical display with
keyboard increases the
scanner’s ease of use and offers a simple human interface
without the need of a PC.
>
GENIUS™ configuration program
>
Display and 3-key keypad
>
Built-in Ethernet with TCP/IP protocol
>
Sorting on induction lines with the DX6400
>
Sorting on high speed conveyors with the DX6500
Applications
Features
>
Distribution (CDs, books, clothes)
>
Postal applications www.datalogic.com
