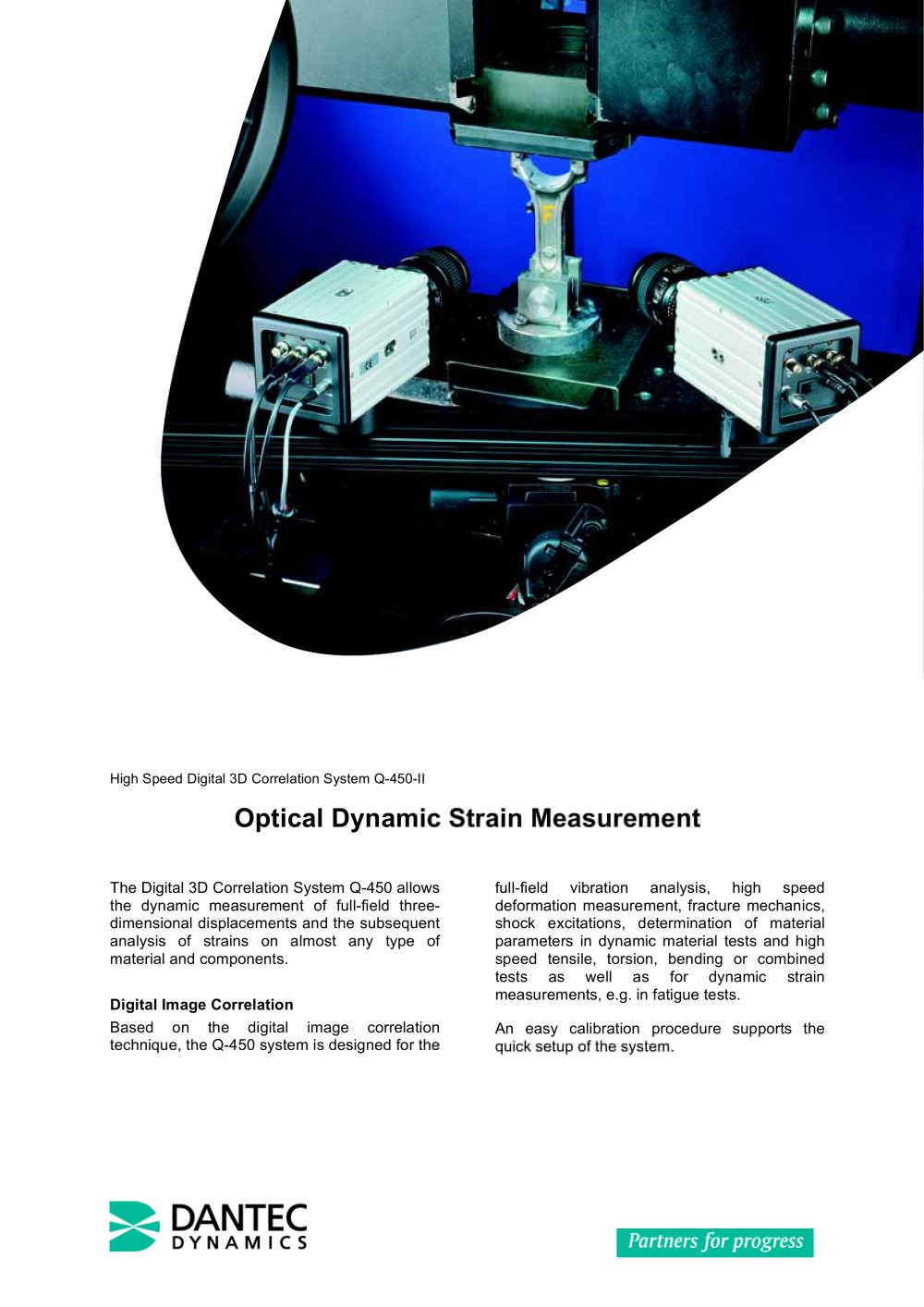

3D Deformation Measurement on any solid Material and Contour – non contact and true full field High Speed Digital 3D Correlation System Q-450-II

3D High-Speed Image Correlation System (Q-450) - 15753 Optical Dynamic Strain Measurement

The Digital 3D Correlation System Q-450 allows the dynamic measurement of full-field three-dimensional displacements and the subsequent analysis of strains on almost any type of material and components. Digital Image Correlation Based on the digital image correlation technique, the Q-450 system is designed for the full-field vibration analysis, high speed deformation measurement, fracture mechanics, shock excitations, determination of material parameters in dynamic material tests and high speed tensile, torsion, bending or combined tests as well as for dynamic strain measurements, e.g. in fatigue tests. An easy calibration procedure supports the quick setup of the system.
