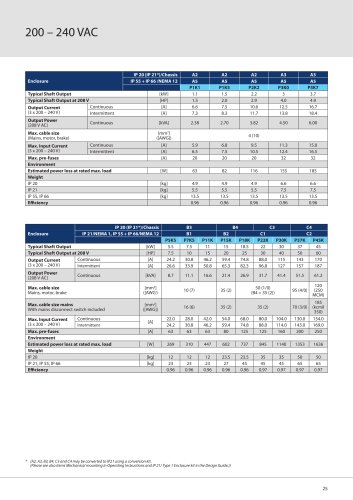

VLT® HVAC Drive - 25 / 40 Pages

25
Enclosure
IP 20 (IP 21*)/Chassis B3 B4 C3 C4
IP 21/NEMA 1, IP 55 + IP 66/NEMA 12 B1 B2 C1 C2
P5K5 P7K5 P11K P15K P18K P22K P30K P37K P45K
Typical Shaft Output [kW] 5.5 7.5 11 15 18.5 22 30 37 45
Typical Shaft Output at 208 V [HP] 7.5 10 15 20 25 30 40 50 60
Output Current
(3 x 200 – 240 V)
Continuous [A] 24.2 30.8 46.2 59.4 74.8 88.0 115 143 170
Intermittent [A] 26.6 33.9 50.8 65.3 82.3 96.8 127 157 187
Output Power
(208 V AC) Continuous [kVA] 8.7 11.1 16.6 21.4 26.9 31.7 41.4 51.5 61.2
Max. cable size
Mains, motor, brake
[mm2]
([AWG]) 10 (7) 35 (2) 50 (1/0)
(B4 = 35 (2)) 95 (4/0)
120
(250
MCM)
Max. cable size mains
With mains disconnect switch included
[mm2]
([AWG]) 16 (6) 35 (2) 35 (2) 70 (3/0)
185
(kcmil
350)
Max. Input Current
(3 x 200 – 240 V)
Continuous
[A]
22.0 28.0 42.0 54.0 68.0 80.0 104.0 130.0 154.0
Intermittent 24.2 30.8 46.2 59.4 74.8 88.0 114.0 143.0 169.0
Max. pre-fuses [A] 63 63 63 80 125 125 160 200 250
Environment
Estimated power loss at rated max. load [W] 269 310 447 602 737 845 1140 1353 1636
Weight
IP 20 [kg] 12 12 12 23.5 23.5 35 35 50 50
IP 21, IP 55, IP 66 [kg] 23 23 23 27 45 45 45 65 65
Efficiency 0.96 0.96 0.96 0.96 0.96 0.97 0.97 0.97 0.97
200 – 240 VAC
Enclosure
IP 20 (IP 21*)/Chassis A2 A2 A2 A3 A3
IP 55 + IP 66 /NEMA 12 A5 A5 A5 A5 A5
P1K1 P1K5 P2K2 P3K0 P3K7
Typical Shaft Output [kW] 1.1 1.5 2.2 3 3.7
Typical Shaft Output at 208 V [HP] 1.5 2.0 2.9 4.0 4.9
Output Current
(3 x 200 – 240 V)
Continuous [A] 6.6 7.5 10.6 12.5 16.7
Intermittent [A] 7.3 8.3 11.7 13.8 18.4
Output Power
(208 V AC) Continuous [kVA] 2.38 2.70 3.82 4.50 6.00
Max. cable size
(Mains, motor, brake)
[mm2]
([AWG]) 4 (10)
Max. Input Current
(3 x 200 – 240 V)
Continuous [A] 5.9 6.8 9.5 11.3 15.0
Intermittent [A] 6.5 7.5 10.5 12.4 16.5
Max. pre-fuses [A] 20 20 20 32 32
Environment
Estimated power loss at rated max. load [W] 63 82 116 155 185
Weight
IP 20 [kg] 4.9 4.9 4.9 6.6 6.6
IP 21 [kg] 5.5 5.5 5.5 7.5 7.5
IP 55, IP 66 [kg] 13.5 13.5 13.5 13.5 13.5
Efficiency 0.96 0.96 0.96 0.96 0.96
* (A2, A3, B3, B4, C3 and C4 may be converted to IP21 using a conversion kit.
(Please see also items Mechanical mounting in Operating Instructions and IP 21/ Type 1 Enclosure kit in the Design Guide.))
