23

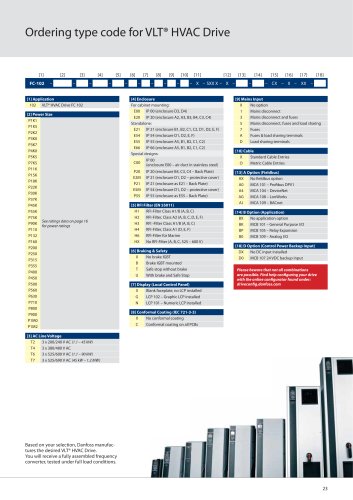

Ordering type code for VLT® HVAC Drive
FC-102 – – – – – – – – – – X –SXX X– X – – – CX – X – XX –
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18]
Based on your selection, Danfoss manufactures
the desired VLT® HVAC Drive.
You will receive a fully assembled frequency
converter, tested under full load conditions.
[9] Mains Input
X No option
1 Mains disconnect
3 Mains disconnect and fuses
5 Mains disconnect, fuses and load sharing
7 Fuses
A Fuses & load sharing terminals
D Load sharing terminals
[10] Cable
X Standard Cable Entries
O Metric Cable Entries
[13] A Option (Fieldbus)
AX No fi eldbus option
A0 MCA 101 – Profi bus DPV1
A4 MCA 104 – DeviceNet
AG MCA 108 – LonWorks
AJ MCA 109 – BACnet
[14] B Option (Application)
BX No application option
BK MCB 101 – General Purpose I/O
BP MCB 105 – Relay Expansion
B0 MCB 109 – Analog I/O
[18] D Option (Control Power Backup Input)
DX No DC input installed
D0 MCB 107 24 VDC backup input
Please beware that not all combinations
are possible. Find help confi guring your drive
with the online confi gurator found under:
driveconfi g.danfoss.com
[1] Application
102 VLT® HVAC Drive FC 102
[2] Power Size
P1K1
See ratings data on page 16
for power ratings
P1K5
P2K2
P3K0
P3K7
P4K0
P5K5
P7K5
P11K
P15K
P18K
P22K
P30K
P37K
P45K
P55K
P75K
P90K
P110
P132
P160
P200
P250
P315
P355
P400
P450
P500
P560
P630
P710
P800
P900
P1M0
P1M2
[3] AC Line Voltage
T2 3 x 200/240 V AC (1.1 – 45 kW)
T4 3 x 380/480 V AC
T6 3 x 525/600 V AC (1.1 – 90 kW)
T7 3 x 525/690 V AC (45 kW – 1.2 MW)
[4] Enclosure
For cabinet mounting:
E00 IP 00 (enclosure D3, D4)
E20 IP 20 (enclosure A2, A3, B3, B4, C3, C4)
Standalone:
E21 IP 21 (enclosure B1, B2, C1, C2, D1, D2, E, F)
E54 IP 54 (enclosure D1, D2, E, F)
E55 IP 55 (enclosure A5, B1, B2, C1, C2)
E66 IP 66 (enclosure A5, B1, B2, C1, C2)
Special designs:
C00 IP 00
(enclosure E00 – air duct in stainless steel)
P20 IP 20 (enclosure B4, C3, C4 – Back Plate)
E2M IP 21 (enclosure D1, D2 – protective cover)
P21 IP 21 (enclosure as E21 – Back Plate)
E5M IP 54 (enclosure D1, D2 – protective cover)
P55 IP 55 (enclosure as E55 – Back Plate)
[5] RFI Filter (EN 55011)
H1 RFI-Filter Class A1/B (A, B, C)
H2 RFI-Filter, Class A2 (A, B, C, D, E, F)
H3 RFI -Filter Class A1/B (A, B, C)
H4 RFI-Filter, Class A1 (D, E, F)
H6 RFI-Filter für Marine
HX No RFI-Filter (A, B, C, 525 – 600 V)
[6] Braking & Safety
X No brake IGBT
B Brake IGBT mounted
T Safe stop without brake
U With brake and Safe Stop
[7] Display (Local Control Panel)
X Blank faceplate, no LCP installed
G LCP 102 – Graphic LCP installed
N LCP 101 – Numeric LCP installed
[8] Conformal Coating (IEC 721-3-3)
X No conformal coating
C Conformal coating on all PCBs
