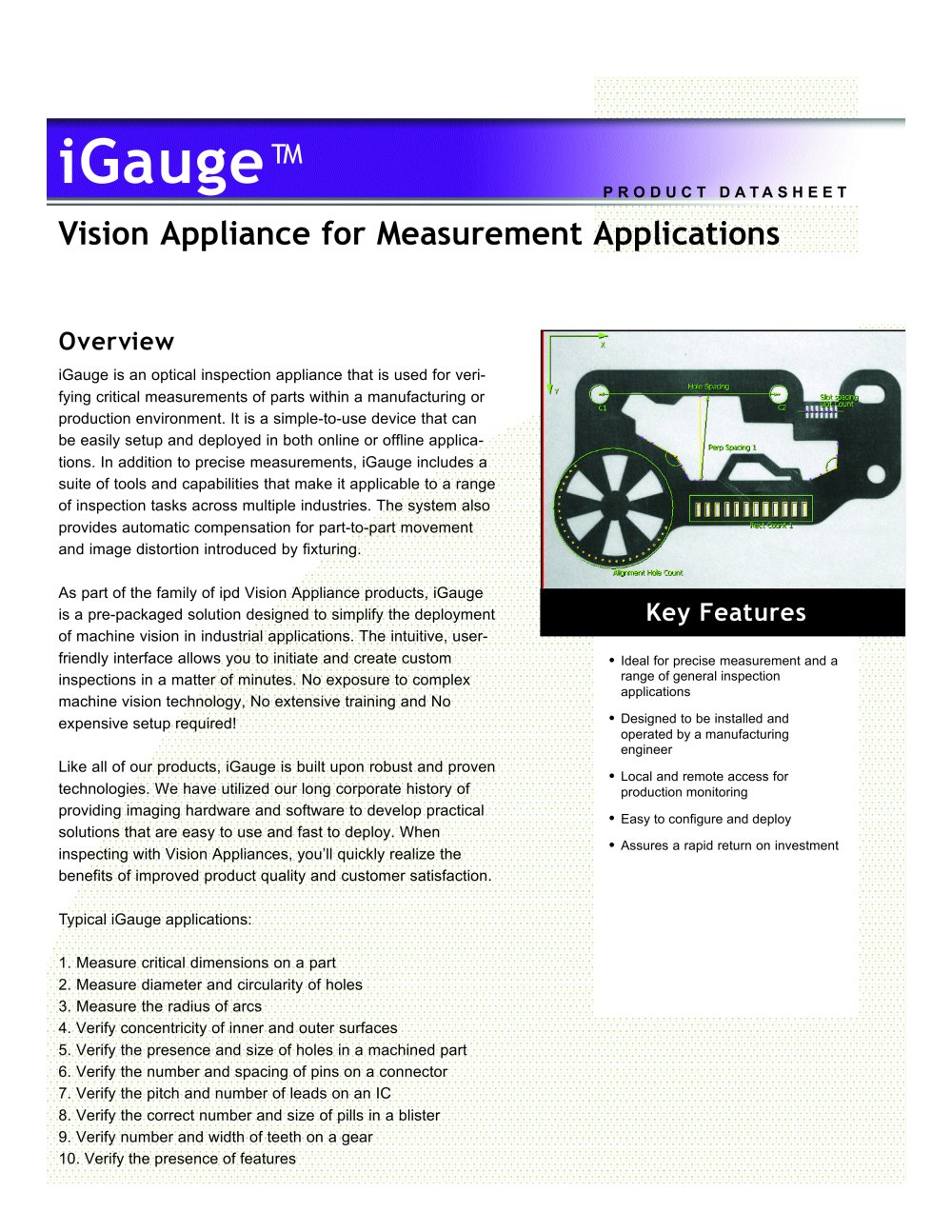

i G a u g e

™

PRODUCT DATA S H E E T

Vision Appliance for Measurement Applications

O v e r vi e w

iGauge is an optical inspection appliance that is used for veri-fying critical measurements of parts within a manufacturing or production environment. It is a simple-to-use device that can be easily setup and deployed in both online or offline applica- tions. In addition to precise measurements, iGauge includes a suite of tools and capabilities that make it applicable to a range of inspection tasks across multiple industries. The system also provides automatic compensation for part-to-part movement and image distortion introduced by fixturing. As part of the family of ipd Vision Appliance products, iGaugeis a pre-packaged solution designed to simplify the deployment of machine vision in industrial applications. The intuitive, user- friendly interface allows you to initiate and create custom inspections in a matter of minutes. No exposure to complex machine vision technology, No extensive training and No expensive setup required! Like all of our products, iGauge is built upon robust and proventechnologies. We have utilized our long corporate history of providing imaging hardware and software to develop practical solutions that are easy to use and fast to deploy. When inspecting with Vision Appliances, you’ll quickly realize the benefits of improved product quality and customer satisfaction. Typical iGauge applications: 1. Measure critical dimensions on a part2. Measure diameter and circularity of holes 3. Measure the radius of arcs 4. Verify concentricity of inner and outer surfaces 5. Verify the presence and size of holes in a machined part 6. Verify the number and spacing of pins on a connector 7. Verify the pitch and number of leads on an IC 8. Verify the correct number and size of pills in a blister 9. Verify number and width of teeth on a gear 10. Verify the presence of features

Key Fe a t u r e s

Ideal for precise measurement and a range of general inspection applications Designed to be installed and operated by a manufacturing engineer Local and remote access for production monitoring Easy to configure and deploy Assures a rapid return on investment
