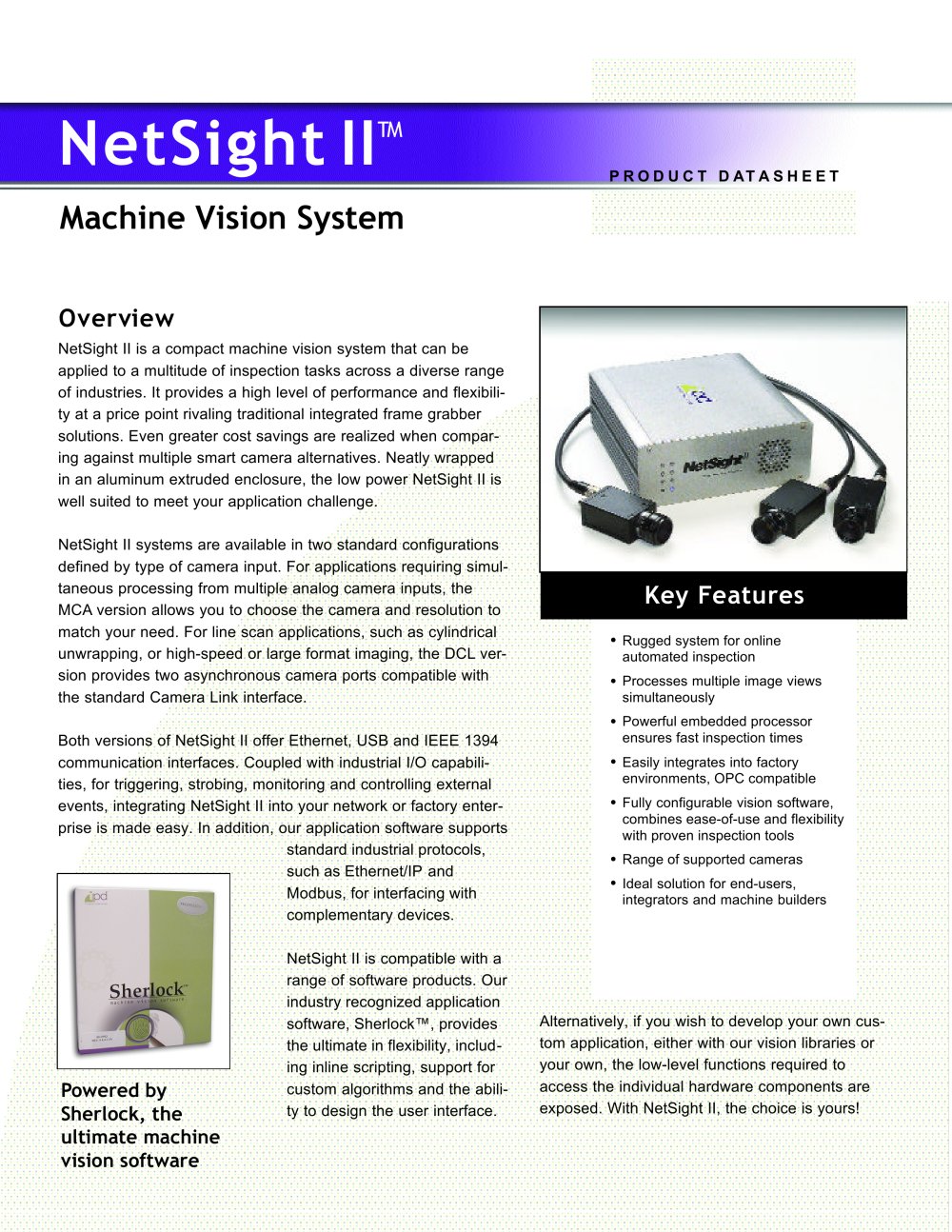

NetSight II ™

PRODUCT DATA S H E E T

Machine Vision System

O v e r vi e w

NetSight II is a compact machine vision system that can beapplied to a multitude of inspection tasks across a diverse range of industries. It provides a high level of performance and flexibili- ty at a price point rivaling traditional integrated frame grabber solutions. Even greater cost savings are realized when compar- ing against multiple smart camera alternatives. Neatly wrapped in an aluminum extruded enclosure, the low power NetSight II is well suited to meet your application challenge. NetSight II systems are available in two standard configurationsdefined by type of camera input. For applications requiring simul- taneous processing from multiple analog camera inputs, the MCAversion allows you to choose the camera and resolution to match your need. For line scan applications, such as cylindrical unwrapping, or high-speed or large format imaging, the DCLver- sion provides two asynchronous camera ports compatible with the standard Camera Link interface.Both versions of NetSight II offer Ethernet, USB and IEEE 1394communication interfaces. Coupled with industrial I/O capabili- ties, for triggering, strobing, monitoring and controlling external events, integrating NetSight II into your network or factory enter- prise is made easy. In addition, our application software supportsstandard industrial protocols, such as Ethernet/IPand Modbus, for interfacing with complementary devices. NetSight II is compatible with arange of software products. Our industry recognized application software, Sherlock™, provides the ultimate in flexibility, includ- ing inline scripting, support for custom algorithms and the abili- ty to design the user interface.

Key Fe a t u r e s

Rugged system for onlineautomated inspection Processes multiple image views simultaneously Powerful embedded processor ensures fast inspection times Easily integrates into factory environments, OPC compatible Fully configurable vision software, combines ease-of-use and flexibility with proven inspection tools Range of supported cameras Ideal solution for end-users, integrators and machine builders

Alternatively, if you wish to develop your own cus-tom application, either with our vision libraries or your own, the low-level functions required to access the individual hardware components are exposed. With NetSight II, the choice is yours!

Powered bySherlock, the ultimate machine vision software
