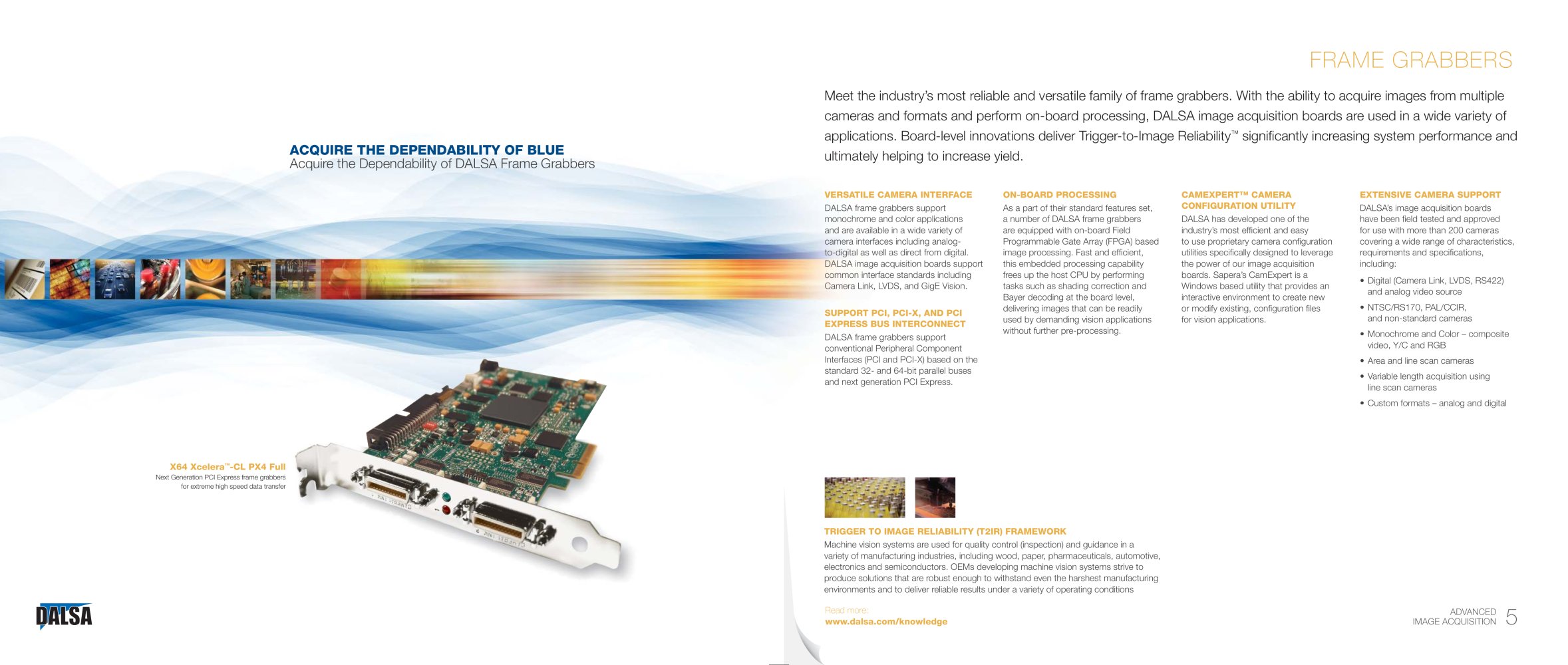

ACQUIRE THE DEPENDABILITY OF BLUE Acquire the Dependability of DALSA Frame Grabbers		Meet the industry's most reliable and versatile family of frame grabbers. With the ability to acquire images from multiple cameras and formats and perform on-board processing, DALSA image acquisition boards are used in a wide variety of applications. Board-level innovations deliver Trigger-to-Image Reliability™ significantly increasing system performance and ultimately helping to increase yield.

VERSATILE CAMERA INTERFACE DALSA frame grabbers support monochrome and color applications and are available in a wide variety of camera interfaces including analog-to-digital as well as direct from digital. DALSA image acquisition boards support common interface standards including Camera Link, LVDS, and GigE Vision. SUPPORT PCI, PCI-X, AND PCI EXPRESS BUS INTERCONNECT DALSA frame grabbers support conventional Peripheral Component Interfaces (PCI and PCI-X) based on the standard 32- and 64-bit parallel buses and next generation PCI Express.			ON-BOARD PROCESSING As a part of their standard features set, a number of DALSA frame grabbers are equipped with on-board Field Programmable Gate Array (FPGA) based image processing. Fast and efficient, this embedded processing capability frees up the host CPU by performing tasks such as shading correction and Bayer decoding at the board level, delivering images that can be readily used by demanding vision applications without further pre-processing.	CAMEXPERT™ CAMERA CONFIGURATION UTILITY DALSA has developed one of the industry's most efficient and easy to use proprietary camera configuration utilities specifically designed to leverage the power of our image acquisition boards. Sapera's CamExpert is a Windows based utility that provides an interactive environment to create new or modify existing, configuration files for vision applications.	EXTENSIVE CAMERA SUPPORT DALSA's image acquisition boards have been field tested and approved for use with more than 200 cameras covering a wide range of characteristics, requirements and specifications, including: • Digital (Camera Link, LVDS, RS422) and analog video source • NTSC/RS170, PAL/CCIR, and non-standard cameras • Monochrome and Color - composite video, Y/C and RGB • Area and line scan cameras • Variable length acquisition using line scan cameras • Custom formats - analog and digital

X64 Xcelera^M-CL PX4 Full Next Generation PCI Express frame grabbers for extreme high speed data transfer

ansi	TRIGGER TO IMAGE RELIABILITY (T2IR) FRAMEWORK Machine vision systems are used for quality control (inspection) and guidance in a variety of manufacturing industries, including wood, paper, pharmaceuticals, automotive, electronics and semiconductors. OEMs developing machine vision systems strive to produce solutions that are robust enough to withstand even the harshest manufacturing environments and to deliver reliable results under a variety of operating conditions Read more www.dalsa.com/knowledge				ADVANCED IMAGE ACQUISITION	5
