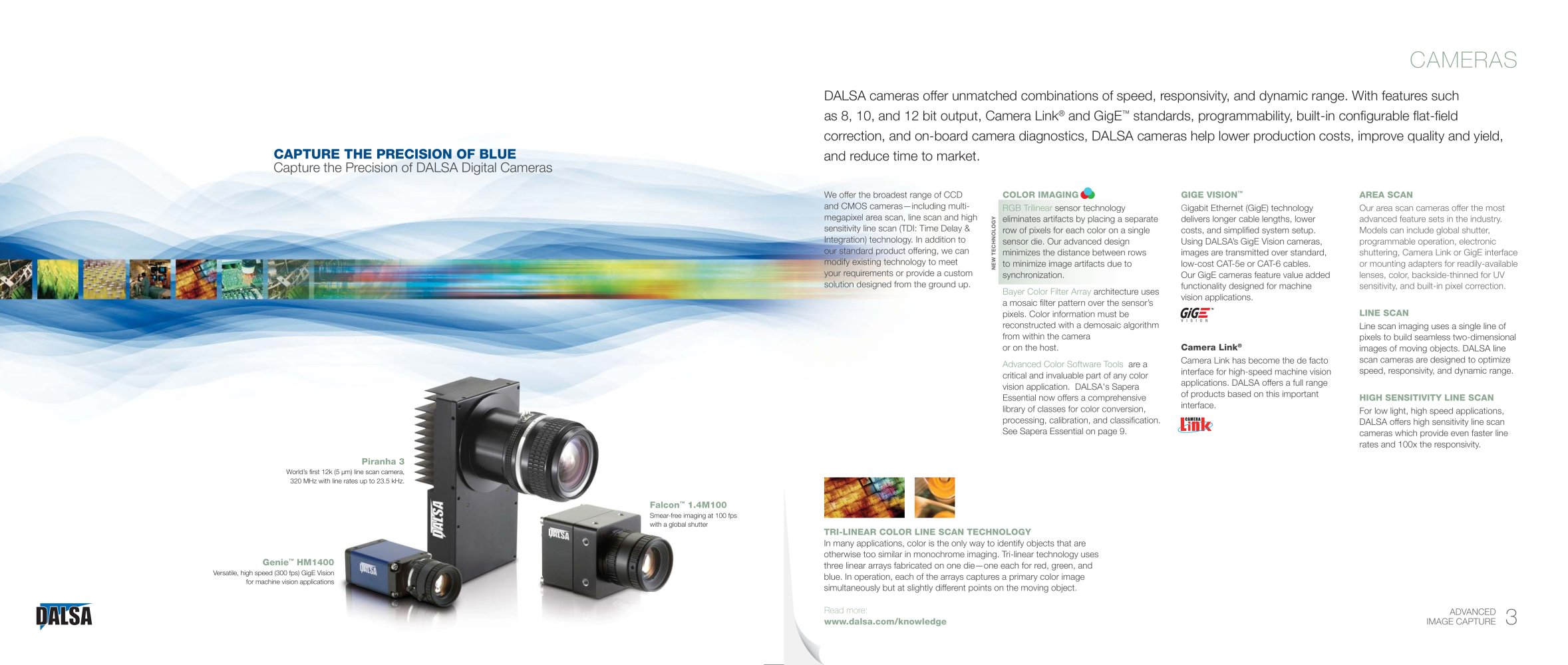

3 ADVANCED IMAGE CAPTURE CAMERAS LINE SCAN Line scan imaging uses a single line of pixels to build seamless two-dimensional images of moving objects. DALSA line scan cameras are designed to optimize speed, responsivity, and dynamic range. AREA SCAN HIGH SENSITIVITY LINE SCAN Our area scan cameras offer the most advanced feature sets in the industry. Models can include global shutter, programmable operation, electronic shuttering, Camera Link or GigE interface or mounting adapters for readily-available lenses, color, backside-thinned for UV sensitivity, and built-in pixel correction. For low light, high speed applications, DALSA offers high sensitivity line scan cameras which provide even faster line rates and 100x the responsivity. ® ™ GIGE VISION Camera Link Gigabit Ethernet (GigE) technology delivers longer cable lengths, lower costs, and simplifi ed system setup. Using DALSA’s GigE Vision cameras, images are transmitted over standard, low-cost CAT-5e or CAT-6 cables. Our GigE cameras feature value added functionality designed for machine vision applications. Camera Link has become the de facto interface for high-speed machine vision applications. DALSA offers a full range of products based on this important interface. standards, programmability, built-in confi gurable fl at-fi eld correction, and on-board camera diagnostics, DALSA cameras help lower production costs, improve quality and yield, and reduce time to market. ™ and GigE ® COLOR IMAGING RGB Trilinear sensor technology eliminates artifacts by placing a separate row of pixels for each color on a single sensor die. Our advanced design minimizes the distance between rows to minimize image artifacts due to synchronization.Bayer Color Filter Array architecture uses a mosaic fi lter pattern over the sensor’s pixels. Color information must be reconstructed with a demosaic algorithm from within the camera or on the host.Advanced Color Software Tools are a critical and invaluable part of any color vision application. DALSA's Sapera Essential now offers a comprehensive library of classes for color conversion, processing, calibration, and classifi cation. See Sapera Essential on page 9.
NEW TECHNOLOGY DALSA cameras offer unmatched combinations of speed, responsivity, and dynamic range. With features such as 8, 10, and 12 bit output, Camera Link We offer the broadest range of CCD and CMOS cameras—including multi- megapixel area scan, line scan and high sensitivity line scan (TDI: Time Delay & Integration) technology. In addition to our standard product offering, we can modify existing technology to meet your requirements or provide a custom solution designed from the ground up. Read more: www.dalsa.com/knowledge TRI-LINEAR COLOR LINE SCAN TECHNOLOGY In many applications, color is the only way to identify objects that are otherwise too similar in monochrome imaging. Tri-linear technology uses three linear arrays fabricated on one die—one each for red, green, and blue. In operation, each of the arrays captures a primary color image simultaneously but at slightly different points on the moving object. 1.4M100 ™ Falcon Smear-free imaging at 100 fps with a global shutter Piranha 3 HM1400 ™ World’s fi rst 12k (5 µm) line scan camera, 320 MHz with line rates up to 23.5 kHz. CAPTURE THE PRECISION OF BLUE Capture the Precision of DALSA Digital Cameras Genie Versatile, high speed (300 fps) GigE Vision for machine vision applications
