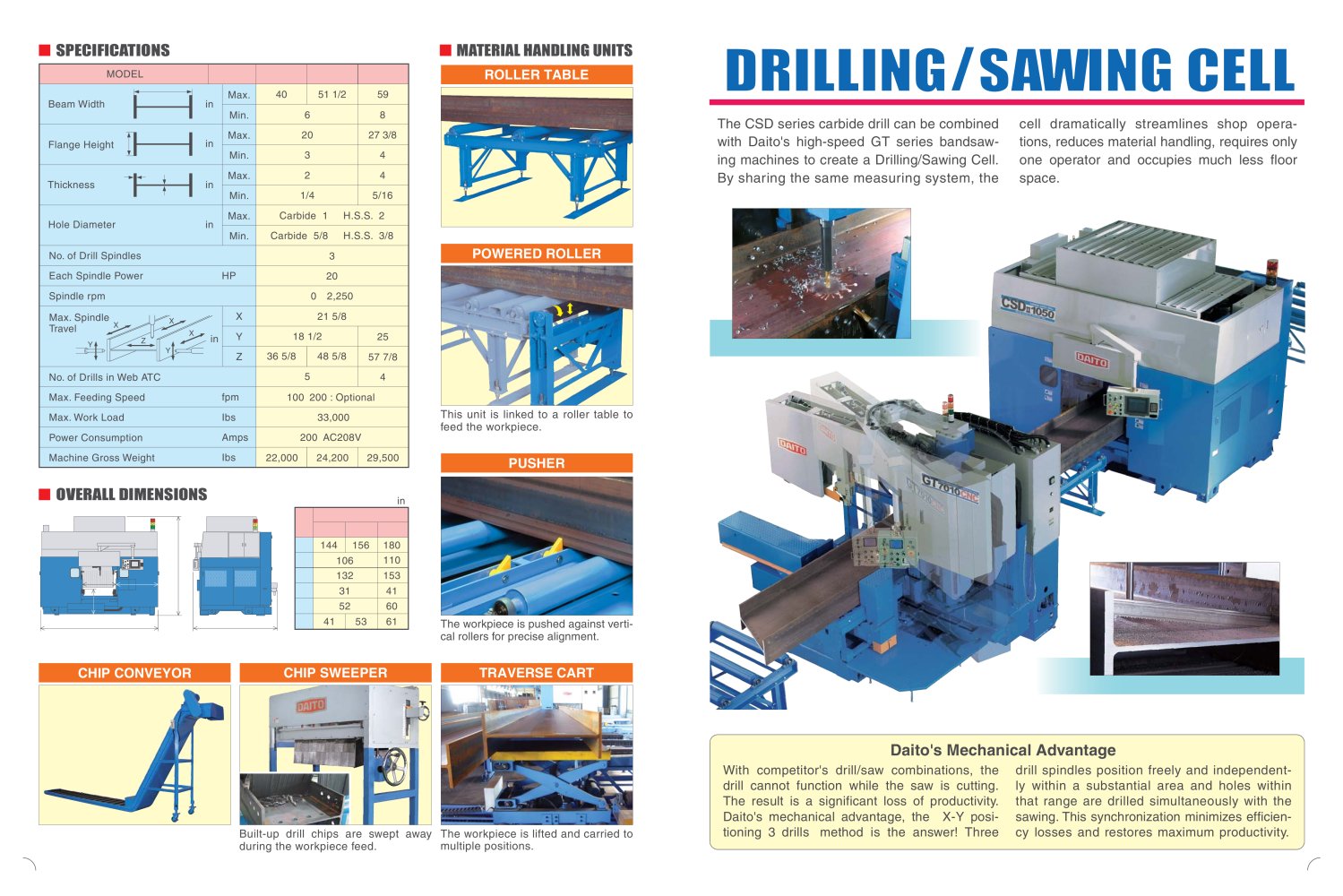

Drilling machine for H beam - CSDII1570 - DAITO SEIKI - #4

SPECIFICATIONS

MATERIAL HANDLING UNITS

ROLLER TABLE

MODEL

51 1/2

Max. Min. Max.

40

59

Beam Width

The CSD series carbide drill can be combined with Daito's high-speed GT series bandsaw-ing machines to create a Drilling/Sawing Cell. By sharing the same measuring system, the

cell dramatically streamlines shop opera­tions, reduces material handling, requires only one operator and occupies much less floor space.

27 3/8

20

II-1

Flange Height

Min.

Max. Min. Max.

2

1/4 Carbide 1

4 5/16 H.S.S. 2

T—H

Thickness

Hole Diameter

Carbide 5/8 H.S.S. 3/8

Min.

POWERED ROLLER

No. of Drill Spindles

Each Spindle Power Spindle rpm

HP

20 0—2,250

21 5/8

Max. Spindle Travel

18 1/2

25

36 5/8 48 5/8 5

57 7/8 4

No. of Drills in Web ATC

100(200 : Optional)

fpm

Max. Feeding Speed

This unit is linked to a roller table to feed the workpiece.

Max. Work Load

lbs

33,000

200(AC208V) 22,000 24,200 29,500

Amps lbs

Power Consumption Machine Gross Weight

OVERALL DIMENSIONS

(in)

The workpiece is pushed against verti­cal rollers for precise alignment.

CHIP SWEEPER

TRAVERSE CART

CHIP CONVEYOR

With competitor's drill/saw combinations, the drill cannot function while the saw is cutting. The result is a significant loss of productivity. Daito's mechanical advantage, the "X-Y posi­tioning 3 drills" method is the answer! Three

drill spindles position freely and independent­ly within a substantial area and holes within that range are drilled simultaneously with the sawing. This synchronization minimizes efficien­cy losses and restores maximum productivity.

Built-up drill chips are swept away The workpiece is lifted and carried to during the workpiece feed. multiple positions.
