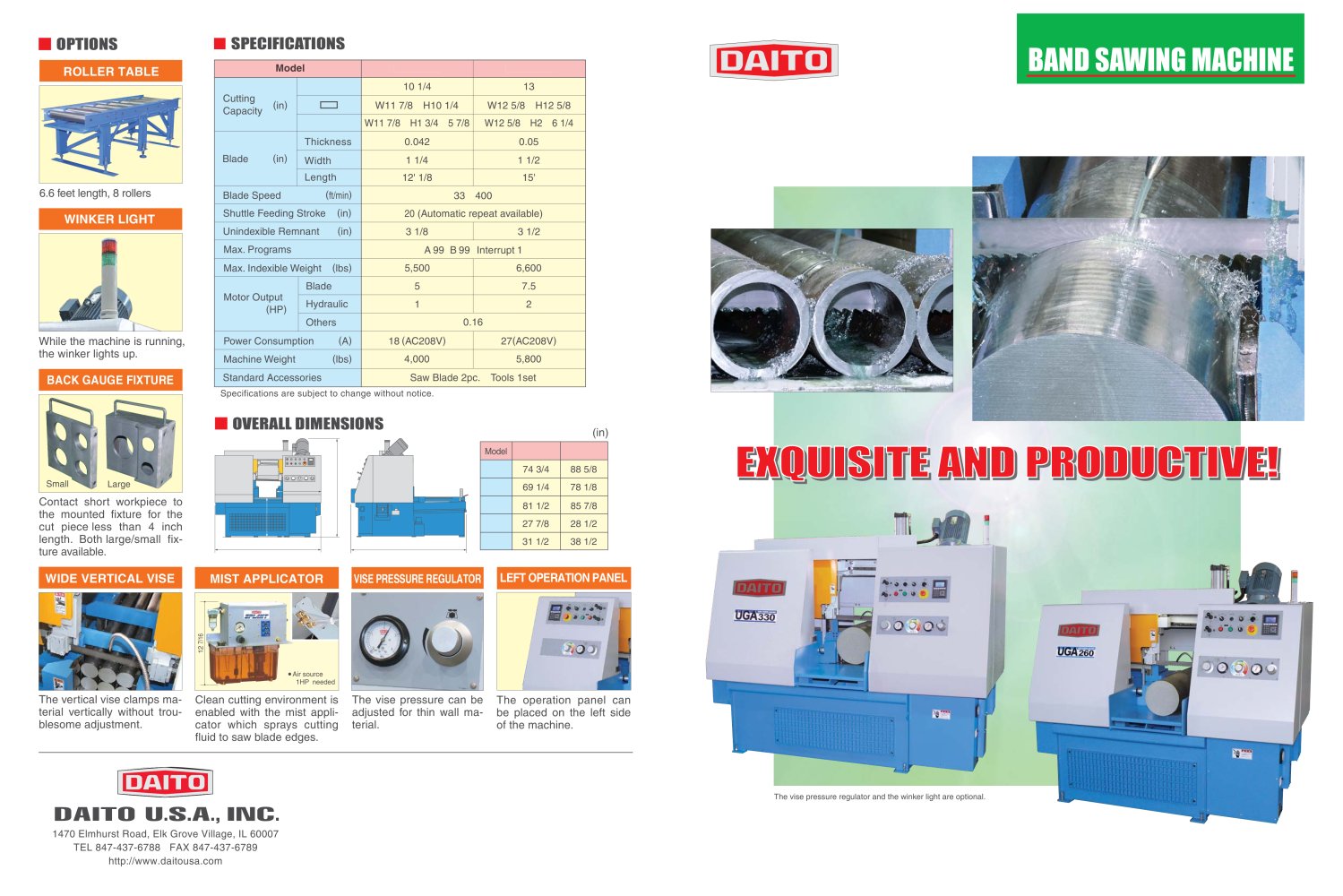

| | | | | | | | | | | | | | | | | | | l i f! T h ! IL | | | | | UGAse | rie | s | | | | | | | | | | | |
| | | ■ SPECIFICATIONS | | |
| | | ■ OPTIONS | | |
| | | |
| | | |
| | | | | | | | | | | | Model | UGA260 | UGA330 | | | | Cutting Capacity { 1 | • | 10 1/4 | 13 | | | | 1=1 | W11 7/8XH10 1/4 | W12 5/8XH12 5/8 | | | | m | W11 7/8XH1 3/4—5 7/8 | W12 5/8XH2—6 1/4 | | | | Blade (in) | Thickness | 0.042 | 0.05 | | | | Width | 1 1/4 | 1 1/2 | | | | Length | 12' 1/8 | LO | | | | Blade Speed (ft/min) | 33—400 | | | | Shuttle Feeding Stroke (in) | 20 (Automatic repeat available) | | | | Unindexible Remnant (in) | 3 1/8 | 3 1/2 | | | | Max. Programs | A 99 B99 Interrupt 1 | | | | Max. Indexible Weight (lbs) | 5,500 | 6,600 | | | | Motor Output (HP) | Blade | LO | 7.5 | | | | Hydraulic | 1 | 2 | | | | Others | 0.16 | | | | Power Consumption (A) | 18 (AC208V) | 27(AC208V) | | | | Machine Weight (lbs) | 4,000 | 5,800 | | | | Standard Accessories | | | | | | | | | | | | |
| | | ROLLER TABLE | | |
| | | |
| | | |
| | | 6.6 feet length, 8 rollers | | |
| | | |
| | | WINKER LIGHT | | |
| | | |
| | | While the machine is running, the winker lights up. | | |
| | | |
| | | BACK GAUGE FIXTURE | | |
| | | |
| | | |
| | | •Specifications are subject to change without notice. | | |
| | | |
| | | OVERALL DIMENSIONS | | |
| | | (in) | | |
| | | |
| | | |
| | | | | | | | | | | Model | uga260 | uga330 | | | | A | 74 3/4 | 88 5/8 | | | | B | 69 1/4 | 78 1/8 | | | | C | 81 1/2 | 85 7/8 | | | | D | 27 7/8 | 28 1/2 | | | | E | 31 1/2 | 38 1/2 | | | | | | | | | | |
| | | EXQUISITE AND PRODUCTIVE! 1 J\ | | |
| | | | | |
| | | Q> O © O ©I E | | |
| | | Small | | |
| | | |
| | | |
| | | Contact short workpiece to the mounted fixture for the cut piece less than 4 inch length. Both large/small fixture available. | | |
| | | |
| | | |
| | | |
| | | |
| | | a | | |
| | | LEFT OPERATION PANEL | | |
| | | | | |
| | | |
| | | |
| | | |
| | | The vertical vise clamps material vertically without troublesome adjustment. | | |
| | | The vise pressure can be adjusted for thin wall material. | | |
| | | | | |
| | | The operation panel can be placed on the left side of the machine. | | |
| | | |
| | | |
| | | |
| | | |
| | | DAITO U.S.A., IIMC 1470 Elmhurst Road, Elk Grove Village, IL 60007 TEL 847-437-6788 FAX 847-437-6789 http://www.daitousa.com 2K8Y09 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
