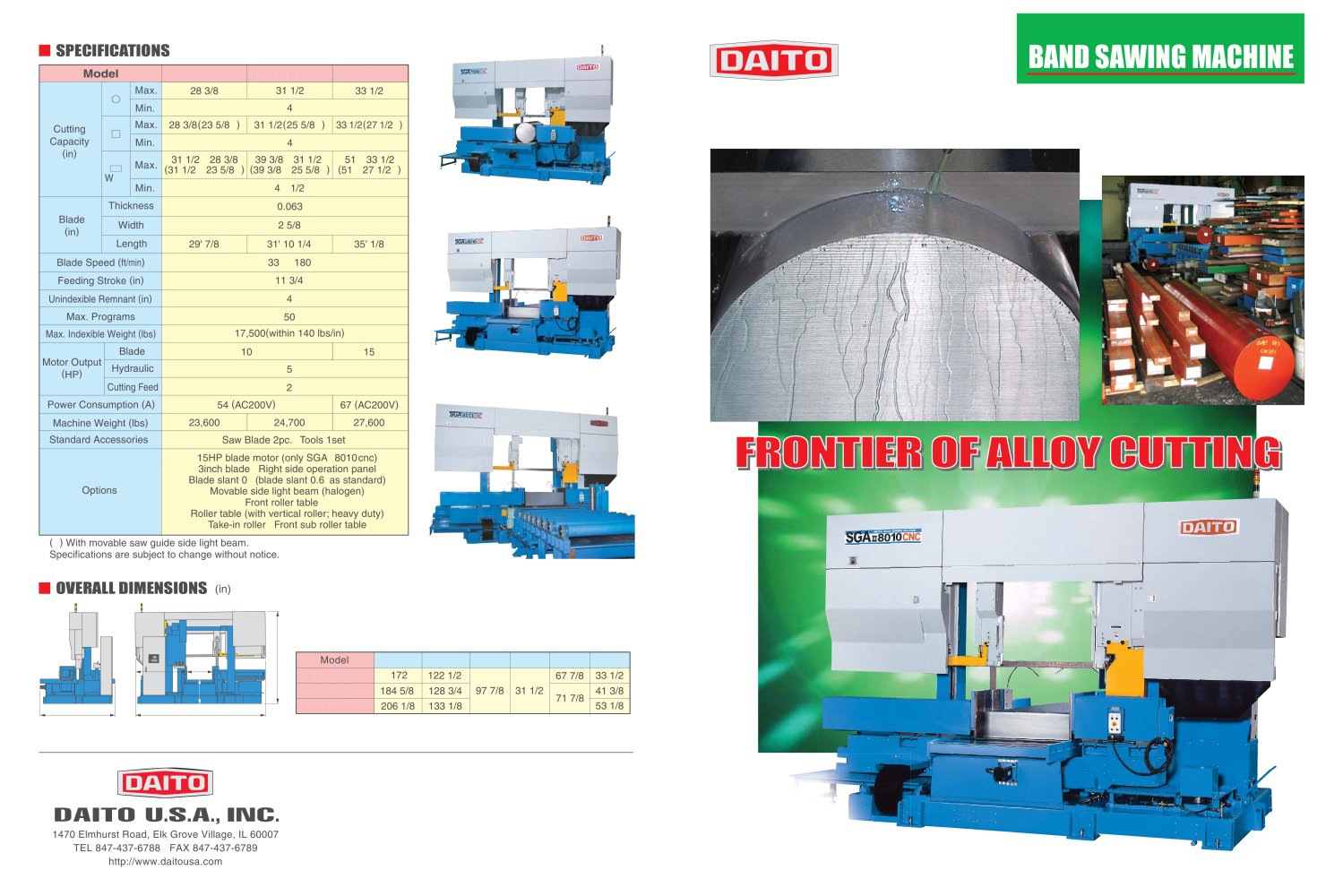

Band sawing machine for alloy steel - SGAII8010CNC - DAITO SEIKI - (Version JPG) - PDF Catalogue | Technical Documentation

Untitled

SPECIFICATIONS


Model			SGA7080cnc	SGAii8010cnc	SGA8513cnc
Cutting Capacity (in)	O	Max.	28 3/8	31 1/2	33 1/2
		Min.	4
	□	Max.	28 3/8(23 5/8»)	31 1/2(25 5/8»)	*33 1/2(27 1/2)**
		Min.	4
	WXH	Max.	31 1/2X28 3/8 (31 1/2X23 5/8»)	39 3/8X31 1/2 (39 3/8X25 5/8»)	51 X33 1/2 (51 X27 1/2»)
		Min.	4X1/2
Blade (in)	Thickness		0.063
	Width		2 5/8
	Length		29' 7/8	31' 10 1/4	35' 1/8
Blade Speed (ft/min)			33 — 180
Feeding Stroke (in)			11 3/4
Unindexible Remnant (in)			4
Max. Programs			50
Max. Indexible Weight (Ibs)			17,500(within 140 Ibs/in)
Motor Output (HP)	Blade		10		15
	Hydraulic		5
	Cutting Feed		2
Power Consumption (A)			54 (AC200V)		67 (AC200V)
Machine Weight (Ibs)			23,600	24,700	27,600
Standard Accessories			Saw Blade 2pc. Tools 1set
Options			15HP blade motor (only SGAn8010cnc) 3inch blade Right side opération panel Blade slant 0° (blade slant 0.6° as standard) Movable side light beam (halogen) Front roller table Roller table (with vertical roller; heavy duty) Take-in roller Front sub roller table

SGA7080cnc

SGAnJ

• («) With movable saw guide

• Spécifications are subject to

side light beam. change without notice.

0VERALL DIMENSIONS (in)

SGA8513cnc

DAITO USA., IIMC.

1470 Elmhurst Road, Elk Grove Village, IL 60007 TEL 847-437-6788 FAX 847-437-6789 http://www.daitousa.com

2K8Y09
