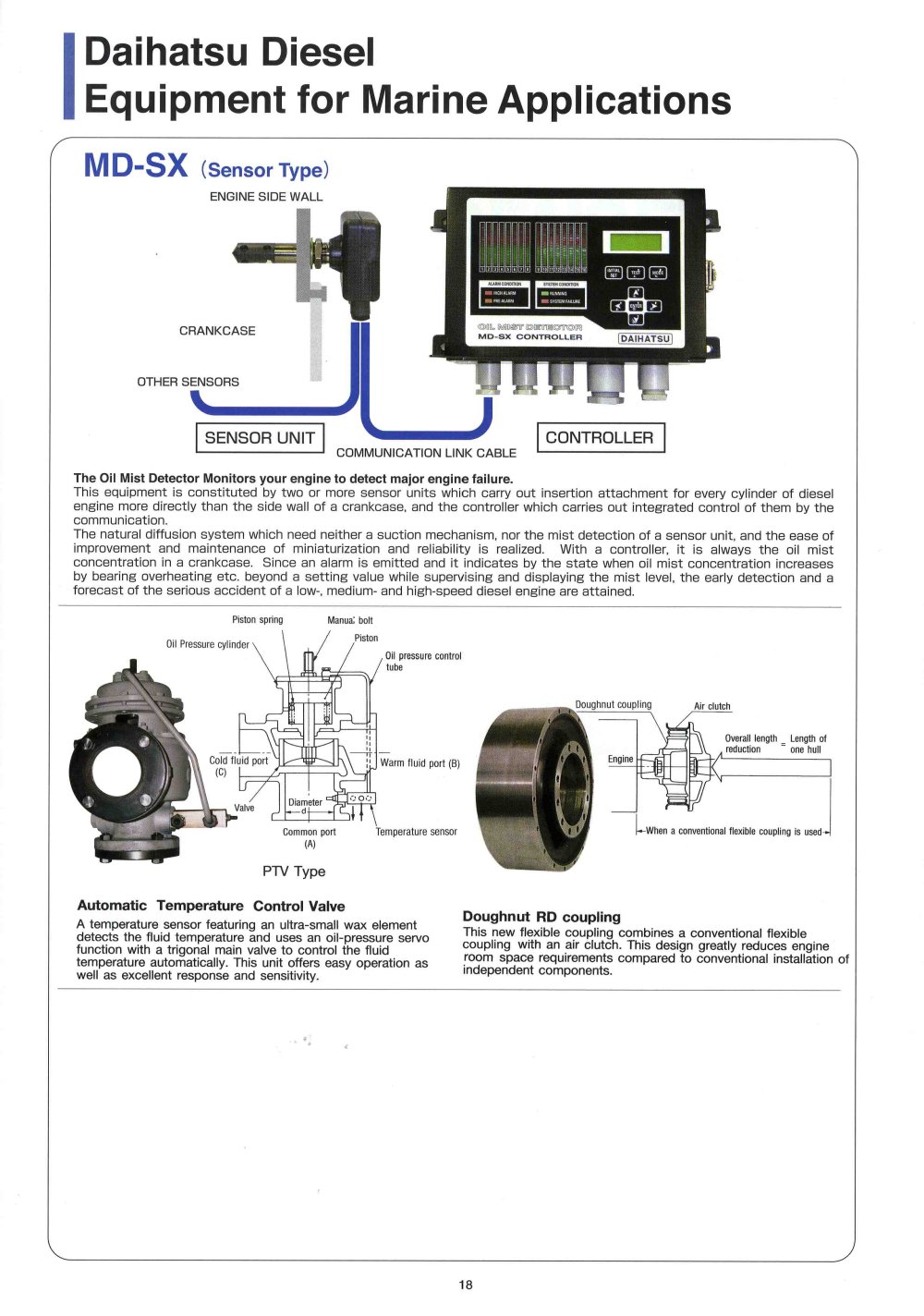

| Daihatsu Diesel Equipment for Marine Applications | |||
| | |||
| COMMUNICATION LINK CABLE | |||
| | |||
| This equipment is constituted by two or more sensor units which carry out insertion attachment for every cylinder of diesel engine more directly than the side wall of a crankcase, and the controller which carries out integrated control of them by the communication. The natural diffusion system which need neither a suction mechanism, nor the mist detection of a sensor unit, and the ease of improvement and maintenance of miniaturization and reliability is realized. With a controller, it is always the oil mist concentration in a crankcase. Since an alarm is emitted and it indicates by the state when oil mist concentration Increases by bearing overheating etc. beyond a setting value while supervising and displaying the mist level, the early detection and a forecast of the serious accident of a low-, medium- and high-speed diesel engine are attained. | |||
| | |||
| Piston spring Manual bolt | |||
| | |||
| Automatic Temperature Control Valve A temperature sensor featuring an ultra-small wax element detects the fluid temperature and uses an oil-pressure servo function with a trigonal main valve to control the fluid temperature automatically. This unit offers easy operation as well as excellent response and sensitivity. | Doughnut RD coupling This new flexible coupling combines a conventional flexible coupling with an air clutch. This design greatly reduces engine room space requirements compared to conventional installation of independent components. | ||
| | |||
| V | J | ||
| | |||
| 18 | |||
| | |||
