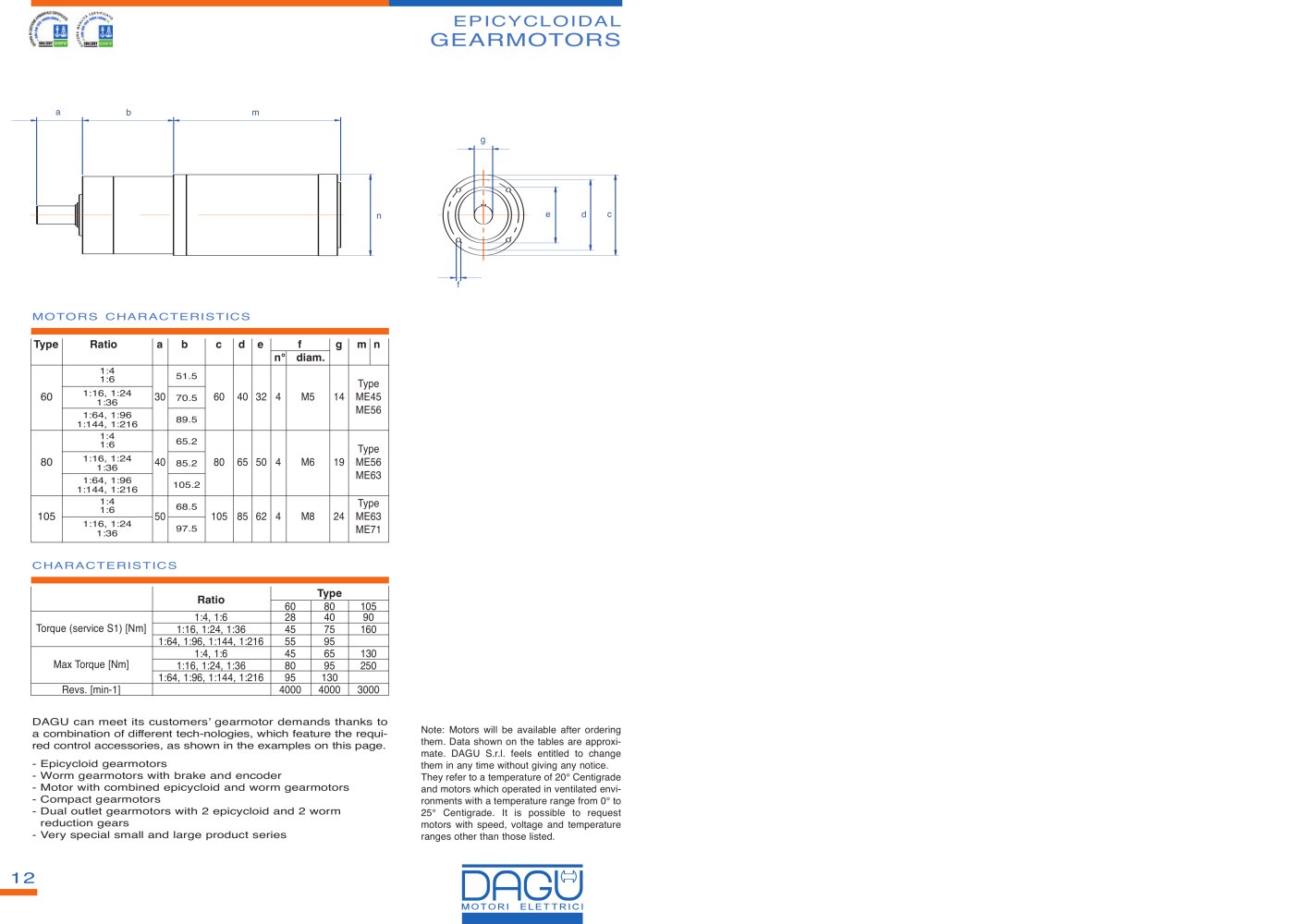

| | | EPICYCLOIDAL GEARMOTORS | | |
| | | |
| | | a | | |
| | | |
| | | | | |
| | | g | | |
| | | |
| | | |
| | | MOTORS CHARACTERISTICS | | |
| | | |
| | | | | | | | | | | | | | | | | | | Type | Ratio | a | b | c | d | e | f | g | m n | | | | n° | diam. | | | | 60 | 1:4 1:6 | 30 | 51.5 | 60 | 40 | 32 | 4 | M5 | 14 | Type ME45 ME56 | | | | 1:16, 1:24 1:36 | 70.5 | | | | 1:64, 1:96 1:144, 1:216 | 89.5 | | | | 80 | 1:4 1:6 | 40 | 65.2 | 80 | 65 | 50 | 4 | M6 | 19 | Type ME56 ME63 | | | | 1:16, 1:24 1:36 | 85.2 | | | | 1:64, 1:96 1:144, 1:216 | 105.2 | | | | 105 | 1:4 1:6 | 50 | 68.5 | 105 | 85 | 62 | 4 | M8 | 24 | Type ME63 ME71 | | | | 1:16, 1:24 1:36 | 97.5 | | | | | | | | | | | | | | | | | | |
| | | |
| | | CHARACTERISTICS | | |
| | | |
| | | | | | | | | | | | | | Ratio | Type 1 | | | | 60 | 80 | 105 | | | | Torque (service S1) [Nm] | 1:4, 1:6 | 28 | 40 | 90 | | | | 1:16, 1:24, 1:36 | 45 | 75 | 160 | | | | 1:64, 1:96, 1:144, 1:216 | 55 | 95 | | | | | Max Torque [Nm] | 1:4, 1:6 | 45 | 65 | 130 | | | | 1:16, 1:24, 1:36 | 80 | 95 | 250 | | | | 1:64, 1:96, 1:144, 1:216 | 95 | 130 | | | | | Revs. [min-1] | | 4000 | 4000 | 3000 | | | | | | | | | | | | |
| | | |
| | | DAGU can meet its customers' gearmotor demands thanks to a combination of different tech-nologies, which feature the required control accessories, as shown in the examples on this page. - Epicycloid gearmotors - Worm gearmotors with brake and encoder - Motor with combined epicycloid and worm gearmotors - Compact gearmotors - Dual outlet gearmotors with 2 epicycloid and 2 worm reduction gears - Very special small and large product series | | |
| | | Note: Motors will be available after ordering them. Data shown on the tables are approximate. DAGU S.r.l. feels entitled to change them in any time without giving any notice. They refer to a temperature of 20° Centigrade and motors which operated in ventilated environments with a temperature range from 0° to 25° Centigrade. It is possible to request motors with speed, voltage and temperature ranges other than those listed. | | |
| | | |
| | | |
| | | | | |
| | | 1 2 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | |
