DRGO

motori elettrici

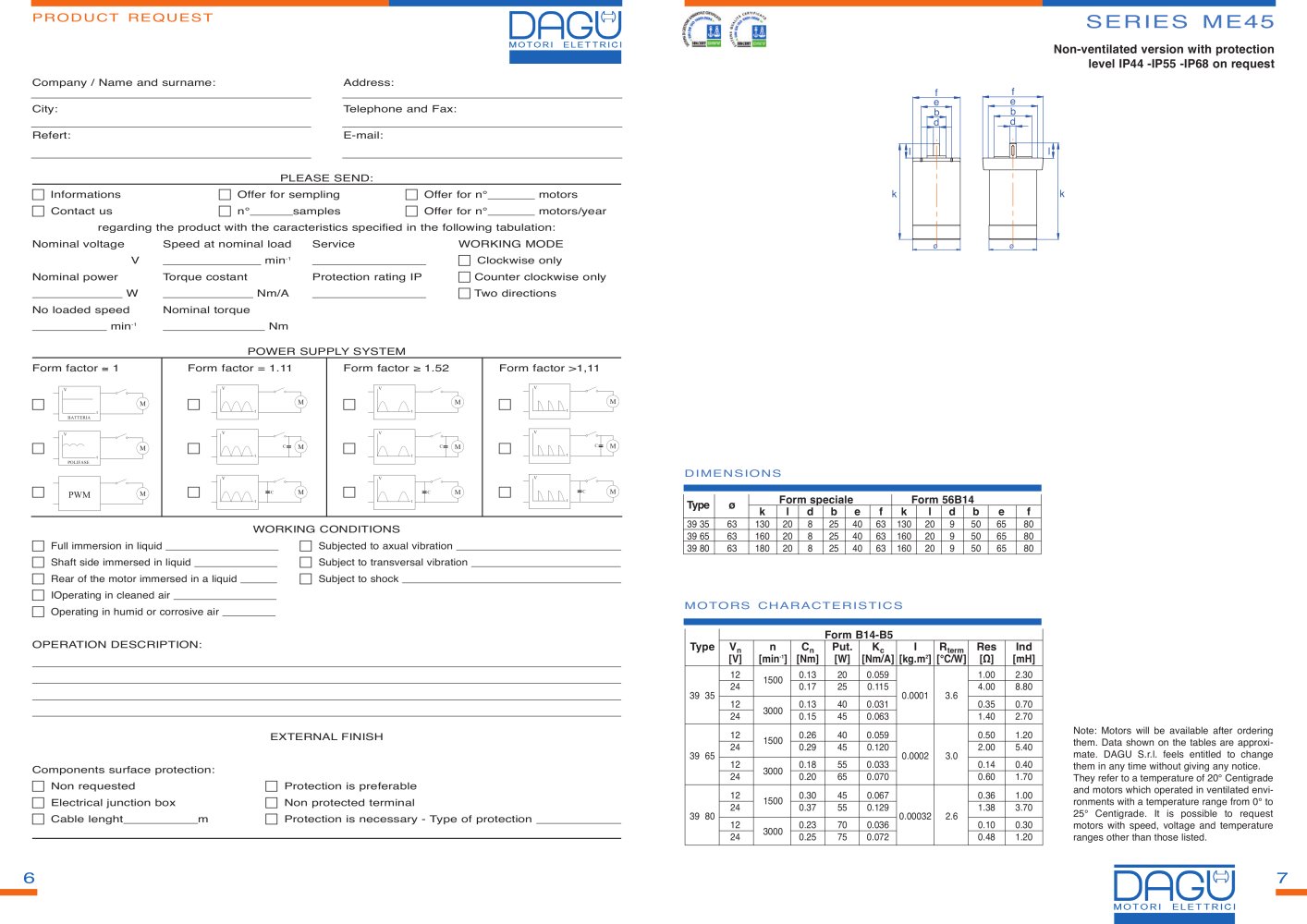

PRODUCT REQUEST

fi EE íí [E

Non-ventilated version with protection level IP44 -IP55 -IP68 on request

Company / Name and surname:

Address:

City: Refert:

Telephone and Fax: E-mail:




	0

PLEASE SEND:_

I I Informations I I Contact us

I I Offer for sempling I I n°_samples

□ Offer for n°_

motors motors/year

regarding the product with the caracteristics specified in the following tabulation:

Speed at nominal load Service _min^-1 _

WORKING MODE

I | Clockwise only

I | Counter clockwise only

I | Two directions

Nominal voltage

Nominal power

Torque costant

Protection rating IP

Nm/A

No loaded speed _min^-1

Nominal torque

Form factor a 1

Form factor = 1.11

Form factor a 1.52

Form factor >1,11

□ _

—^

"è

□ _

aaa,

□ _

a a,

□ _

imm\,

° (My

□

batteria

□ _

aaa,

□ _

a a,

□ _

polifase

pwm

—^

aaa,

a a,

□ _

imma,

DIMENSIONS


Type	0	Form speciale						Form 56B14
Type	0	k	l	d	b	e	f	k	l	d	b	e	f
39 35	63	130	20	8	25	40	63	130	20	9	50	65	80
39 65	63	160	20	8	25	40	63	160	20	9	50	65	80
39 80	63	180	20	8	25	40	63	160	20	9	50	65	80

WORKING CONDITIONS

_ □ Subjected to axual vibration_

_ □ Subject to transversal vibration .

_ □ Subject to shock_

I | Full immersion in liquid_

I | Shaft side immersed in liquid_

I Rear of the motor immersed in a liquid

I | lOperating in cleaned air_

MOTORS CHARACTERISTICS

□ Operating in humid or corrosive air .

Form B14-B5


Type	V_n [V]	n [min¹]	Cn [Nm]	Put. [W]	Kc [Nm/A]	I [kg.m²]	^Rterm [°C/W]	Res [0]	Ind [mH]
39 35	12	1500	0.13	20	0.059	0.0001	3.6	1.00	2.30
	24	1500	0.17	25	0.115			4.00	8.80
	12	3000	0.13	40	0.031			0.35	0.70
	24	3000	0.15	45	0.063			1.40	2.70
39 65	12	1500	0.26	40	0.059	0.0002	3.0	0.50	1.20
	24	1500	0.29	45	0.120			2.00	5.40
	12	3000	0.18	55	0.033			0.14	0.40
	24	3000	0.20	65	0.070			0.60	1.70
39 80	12	1500	0.30	45	0.067	0.00032	2.6	0.36	1.00
	24	1500	0.37	55	0.129			1.38	3.70
	12	3000	0.23	70	0.036			0.10	0.30
	24	3000	0.25	75	0.072			0.48	1.20

OPERATION DESCRIPTION:

Note: Motors will be available after ordering them. Data shown on the tables are approximate. DAGU S.r.l. feels entitled to change them in any time without giving any notice. They refer to a temperature of 20° Centigrade and motors which operated in ventilated environments with a temperature range from 0° to 25° Centigrade. It is possible to request motors with speed, voltage and temperature ranges other than those listed.

EXTERNAL FINISH

Components surface protection: I Non requested I | Electrical junction box

I | Protection is preferable I Non protected terminal

I | Protection is necessary - Type of protection

□ Cable lenght_
