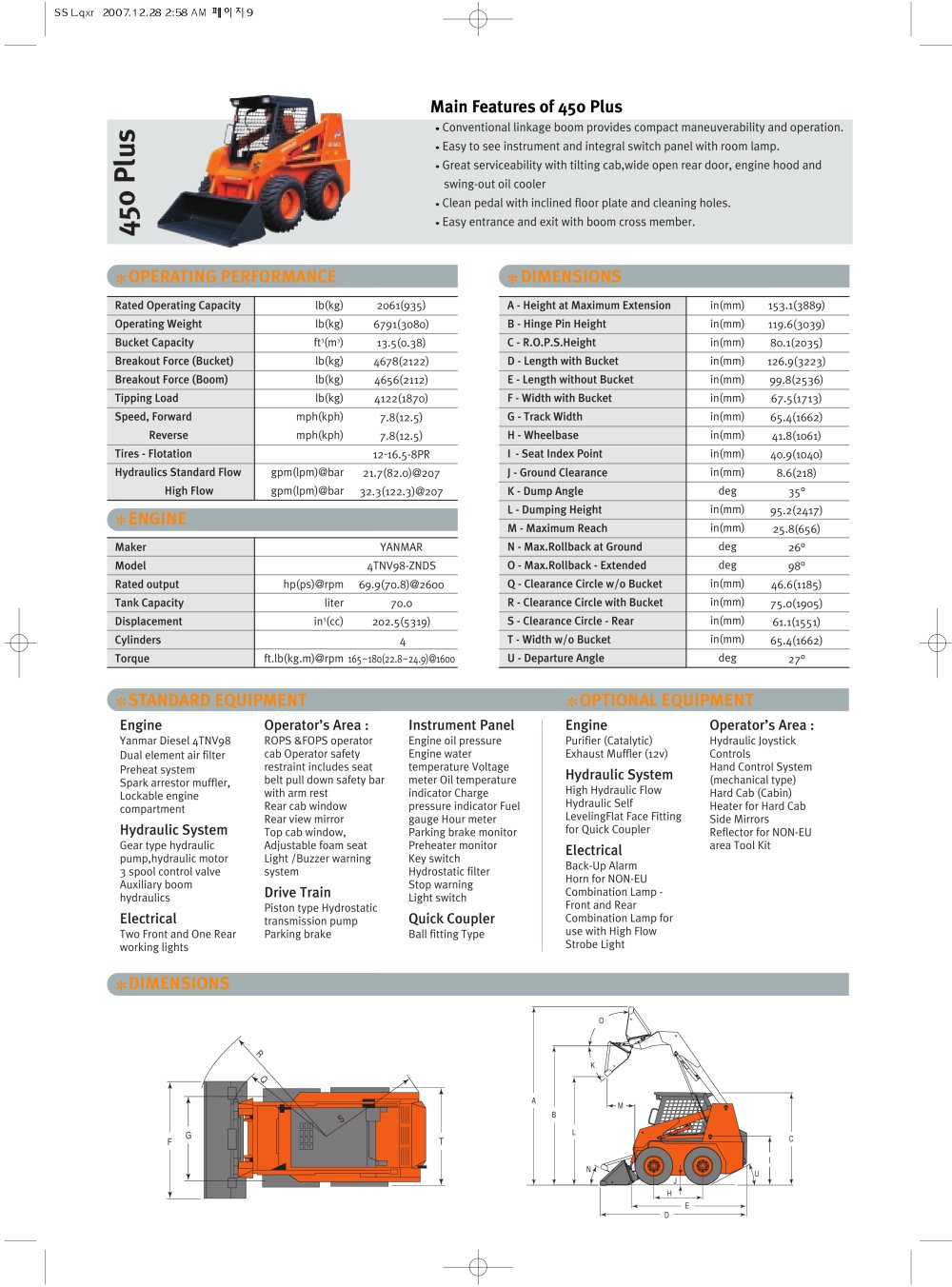

Main Features of 450 Plus
Conventional linkage boom provides compact maneuverability and operation. ■ Easy to see instrument and integral switch panel with room lamp.
Great serviceability with tilting cab,wide open rear door, engine hood and
swing-out oil cooler • Clean pedal with inclined floor plate and cleaning holes.
Easy entrance and exit with boom cross member.
o
un
Rated Operating Capacity
lb(kg) 2061(935)
A - Height at Maximum Extension
in(mm) 153.1(3889)
Operating Weight
lb(kg) 6791(3080)
B - Hinge Pin Height
in(mm) 119.6(3039)
Bucket Capacity
ft3(m3) 13.5(0.38)
C - R.O.P.S.Height
in(mm) 80.1(2035)
Breakout Force (Bucket)
lb(kg) 4678(2122)
D - Length with Bucket
in(mm) 126.9(3223)
Breakout Force (Boom)
lb(kg) 4656(2112)
E - Length without Bucket
in(mm) 99.8(2536)
Tipping Load
lb(kg) 4122(1870)
F - Width with Bucket
in(mm) 67.5(1713)
Speed, Forward Reverse
mph(kph) 7.8(12.5) mph(kph) 7.8(12.5)
G - Track Width
in(mm) 65.4(1662)
H - Wheelbase
in(mm) 41.8(1061)
Tires - Flotation
12-16.5-8PR
I - Seat Index Point
in(mm) 40.9(1040)
Hydraulics Standard Flow High Flow
gpm(lpm)@bar 21.7(82.0)@207 gpm(lpm)@bar 32.3(122.3)@207
J - Ground Clearance
in(mm) 8.6(218)
K - Dump Angle
deg 35°
L - Dumping Height
in(mm) 95.2(2417)
M - Maximum Reach
in(mm) 25.8(656)
Maker
YANMAR
N - Max.Rollback at Ground
deg 26°
Model
4TNV98-ZNDS
O - Max.Rollback - Extended
deg 98°
Rated output
hp(ps)@rpm 69.9(70.8)@2600
Q - Clearance Circle w/o Bucket
in(mm) 46.6(1185)
Tank Capacity
liter 70.0
R - Clearance Circle with Bucket
in(mm) 75.0(1905)
Displacement
in3(cc) 202.5(5319)
S - Clearance Circle - Rear
in(mm) 61.1(1551)
Cylinders
4
T - Width w/o Bucket
in(mm) 65.4(1662)
Torque
ft.lb(kg.m)@rpm 165-180(22.8-24.9)181600
U - Departure Angle
deg 27°
Instrument Panel
Engine oil pressure Engine water temperature Voltage meter Oil temperature indicator Charge pressure indicator Fuel gauge Hour meter Parking brake monitor Preheater monitor Key switch Hydrostatic filter Stop warning Light switch
Quick Coupler
Ball fitting Type
Engine
Yanmar Diesel 4TNV98 Dual element air filter Preheat system Spark arrestor muffler, Lockable engine compartment
Hydraulic System
Gear type hydraulic pump,hydraulic motor 3 spool control valve Auxiliary boom hydraulics
Electrical
Two Front and One Rear working lights
Engine
Purifier (Catalytic) Exhaust Muffler (12V)
Hydraulic System
High Hydraulic Flow Hydraulic Self LevelingFlat Face Fitting for Quick Coupler
Electrical
Back-Up Alarm Horn for NON-EU Combination Lamp -Front and Rear Combination Lamp for use with High Flow Strobe Light
Operator's Area :
ROPS &FOPS operator cab Operator safety restraint includes seat belt pull down safety bar with arm rest Rear cab window Rear view mirror Top cab window, Adjustable foam seat Light / Buzzer warning system
Drive Train
Piston type Hydrostatic transmission pump Parking brake
Operator's Area :
Hydraulic Joystick Controls
Hand Control System (mechanical type) Hard Cab (Cabin) Heater for Hard Cab Side Mirrors Reflector for NON-EU area Tool Kit
