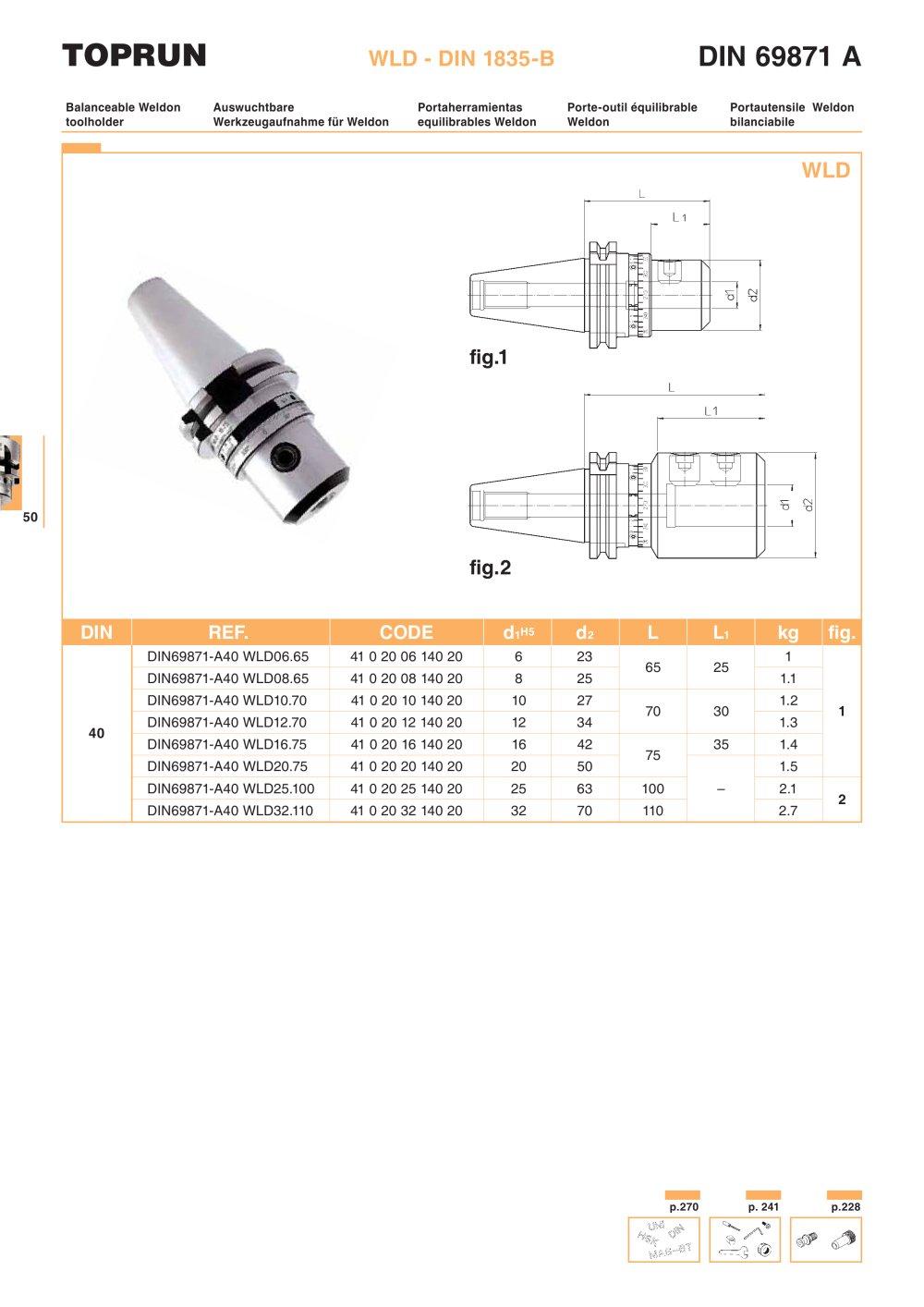

TOPRUN
50
p.270 p. 241 p.228
WLD - DIN 1835-B
Auswuchtbare
Werkzeugaufnahme für Weldon
Portaherramientas
equilibrables Weldon
Porte-outil équilibrable
Weldon
Portautensile Weldon
bilanciabile
Balanceable Weldon
toolholder
DIN 69871 A
WLD
DIN REF. CODE d1H5 d2 L L1 kg fig.
DIN69871-A40 WLD06.65 41 0 20 06 140 20 6 23
65 25
1
DIN69871-A40 WLD08.65 41 0 20 08 140 20 8 25 1.1
DIN69871-A40 WLD10.70 41 0 20 10 140 20 10 27
70 30
1.2
1
40
DIN69871-A40 WLD12.70 41 0 20 12 140 20 12 34 1.3
DIN69871-A40 WLD16.75 41 0 20 16 140 20 16 42
75
35 1.4
DIN69871-A40 WLD20.75 41 0 20 20 140 20 20 50 1.5
DIN69871-A40 WLD25.100 41 0 20 25 140 20 25 63 100 – 2.1
2
DIN69871-A40 WLD32.110 41 0 20 32 140 20 32 70 110 2.7
fig.1
fig.2
