21
p. 228 p. 240 p. 270

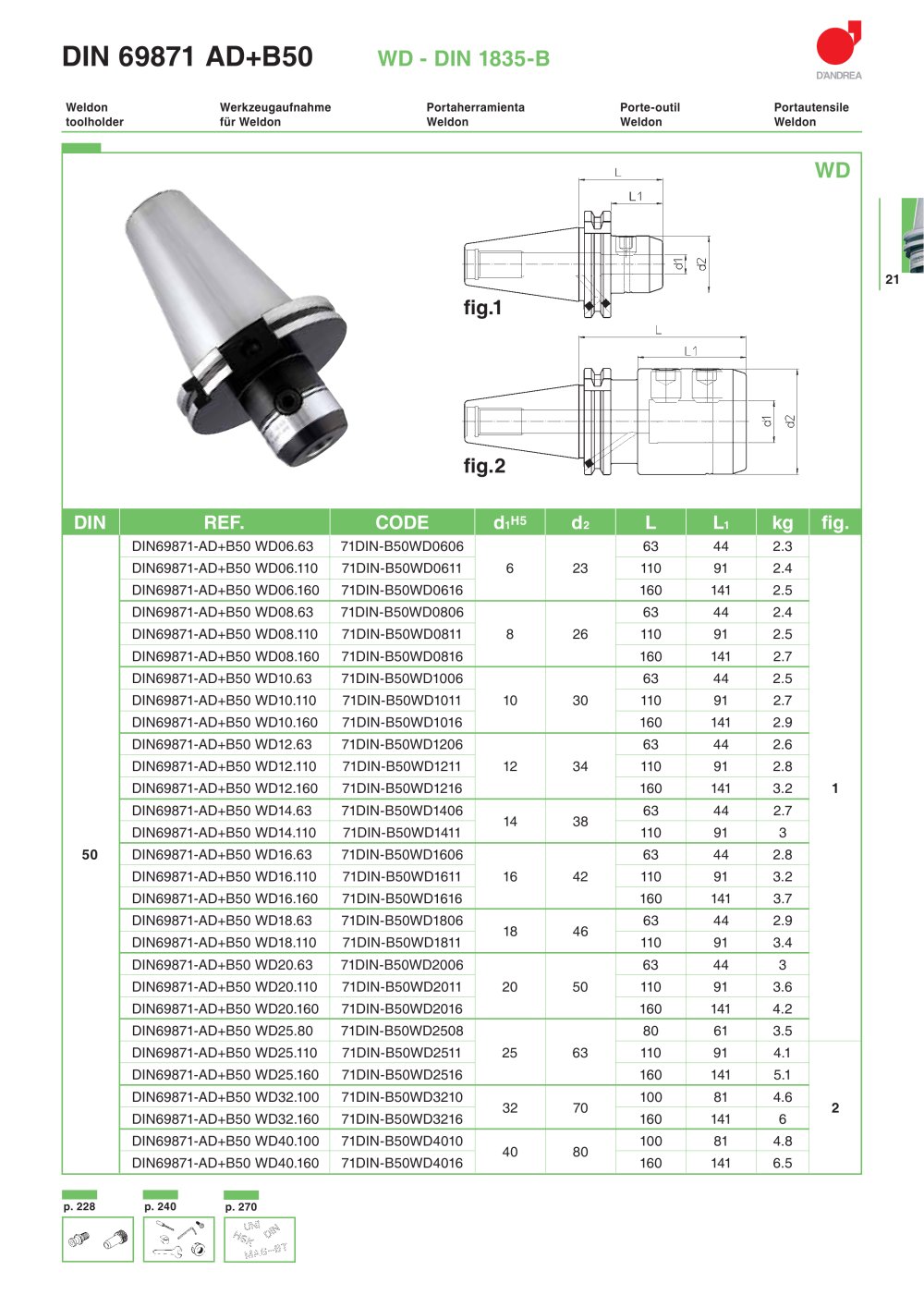

DIN 69871 AD+B50 WD - DIN 1835-B
WD
fig.1
fig.2
DIN REF. CODE d1H5 d2 L L1 kg fig.
DIN69871-AD+B50 WD06.63 71DIN-B50WD0606 63 44 2.3
DIN69871-AD+B50 WD06.110 71DIN-B50WD0611 6 23 110 91 2.4
DIN69871-AD+B50 WD06.160 71DIN-B50WD0616 160 141 2.5
DIN69871-AD+B50 WD08.63 71DIN-B50WD0806 63 44 2.4
DIN69871-AD+B50 WD08.110 71DIN-B50WD0811 8 26 110 91 2.5
DIN69871-AD+B50 WD08.160 71DIN-B50WD0816 160 141 2.7
DIN69871-AD+B50 WD10.63 71DIN-B50WD1006 63 44 2.5
DIN69871-AD+B50 WD10.110 71DIN-B50WD1011 10 30 110 91 2.7
DIN69871-AD+B50 WD10.160 71DIN-B50WD1016 160 141 2.9
DIN69871-AD+B50 WD12.63 71DIN-B50WD1206 63 44 2.6
DIN69871-AD+B50 WD12.110 71DIN-B50WD1211 12 34 110 91 2.8
DIN69871-AD+B50 WD12.160 71DIN-B50WD1216 160 141 3.2 1
DIN69871-AD+B50 WD14.63 71DIN-B50WD1406
14 38
63 44 2.7
DIN69871-AD+B50 WD14.110 71DIN-B50WD1411 110 91 3
50 DIN69871-AD+B50 WD16.63 71DIN-B50WD1606 63 44 2.8
DIN69871-AD+B50 WD16.110 71DIN-B50WD1611 16 42 110 91 3.2
DIN69871-AD+B50 WD16.160 71DIN-B50WD1616 160 141 3.7
DIN69871-AD+B50 WD18.63 71DIN-B50WD1806
18 46
63 44 2.9
DIN69871-AD+B50 WD18.110 71DIN-B50WD1811 110 91 3.4
DIN69871-AD+B50 WD20.63 71DIN-B50WD2006 63 44 3
DIN69871-AD+B50 WD20.110 71DIN-B50WD2011 20 50 110 91 3.6
DIN69871-AD+B50 WD20.160 71DIN-B50WD2016 160 141 4.2
DIN69871-AD+B50 WD25.80 71DIN-B50WD2508 80 61 3.5
DIN69871-AD+B50 WD25.110 71DIN-B50WD2511 25 63 110 91 4.1
DIN69871-AD+B50 WD25.160 71DIN-B50WD2516 160 141 5.1
DIN69871-AD+B50 WD32.100 71DIN-B50WD3210
32 70
100 81 4.6
2
DIN69871-AD+B50 WD32.160 71DIN-B50WD3216 160 141 6
DIN69871-AD+B50 WD40.100 71DIN-B50WD4010
40 80
100 81 4.8
DIN69871-AD+B50 WD40.160 71DIN-B50WD4016 160 141 6.5
Werkzeugaufnahme
für Weldon
Portaherramienta
Weldon
Porte-outil
Weldon
Portautensile
Weldon
Weldon
toolholder
