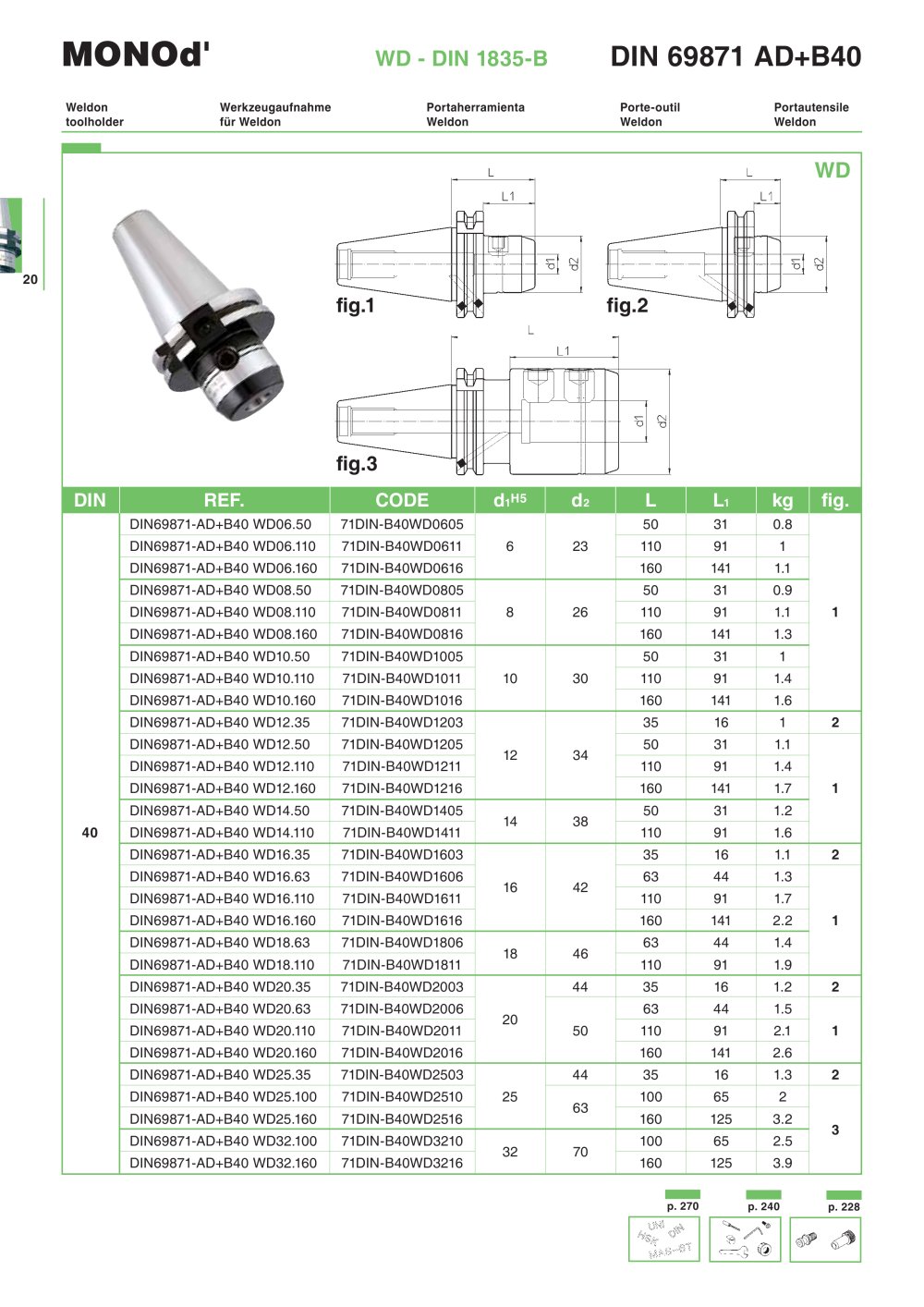

MONOd'
20
Werkzeugaufnahme
für Weldon
Portaherramienta
Weldon
Porte-outil
Weldon
Portautensile
Weldon
Weldon
toolholder
p. 270 p. 240 p. 228
WD - DIN 1835-B DIN 69871 AD+B40
WD
fig.1
fig.3
fig.2
DIN REF. CODE d1H5 d2 L L1 kg fig.
DIN69871-AD+B40 WD06.50 71DIN-B40WD0605 50 31 0.8
DIN69871-AD+B40 WD06.110 71DIN-B40WD0611 6 23 110 91 1
DIN69871-AD+B40 WD06.160 71DIN-B40WD0616 160 141 1.1
DIN69871-AD+B40 WD08.50 71DIN-B40WD0805 50 31 0.9
DIN69871-AD+B40 WD08.110 71DIN-B40WD0811 8 26 110 91 1.1 1
DIN69871-AD+B40 WD08.160 71DIN-B40WD0816 160 141 1.3
DIN69871-AD+B40 WD10.50 71DIN-B40WD1005 50 31 1
DIN69871-AD+B40 WD10.110 71DIN-B40WD1011 10 30 110 91 1.4
DIN69871-AD+B40 WD10.160 71DIN-B40WD1016 160 141 1.6
DIN69871-AD+B40 WD12.35 71DIN-B40WD1203 35 16 1 2
DIN69871-AD+B40 WD12.50 71DIN-B40WD1205
12 34
50 31 1.1
DIN69871-AD+B40 WD12.110 71DIN-B40WD1211 110 91 1.4
DIN69871-AD+B40 WD12.160 71DIN-B40WD1216 160 141 1.7 1
DIN69871-AD+B40 WD14.50 71DIN-B40WD1405
14 38
50 31 1.2
40 DIN69871-AD+B40 WD14.110 71DIN-B40WD1411 110 91 1.6
DIN69871-AD+B40 WD16.35 71DIN-B40WD1603 35 16 1.1 2
DIN69871-AD+B40 WD16.63 71DIN-B40WD1606
16 42
63 44 1.3
DIN69871-AD+B40 WD16.110 71DIN-B40WD1611 110 91 1.7
DIN69871-AD+B40 WD16.160 71DIN-B40WD1616 160 141 2.2 1
DIN69871-AD+B40 WD18.63 71DIN-B40WD1806
18 46
63 44 1.4
DIN69871-AD+B40 WD18.110 71DIN-B40WD1811 110 91 1.9
DIN69871-AD+B40 WD20.35 71DIN-B40WD2003 44 35 16 1.2 2
DIN69871-AD+B40 WD20.63 71DIN-B40WD2006
20
63 44 1.5
DIN69871-AD+B40 WD20.110 71DIN-B40WD2011 50 110 91 2.1 1
DIN69871-AD+B40 WD20.160 71DIN-B40WD2016 160 141 2.6
DIN69871-AD+B40 WD25.35 71DIN-B40WD2503 44 35 16 1.3 2
DIN69871-AD+B40 WD25.100 71DIN-B40WD2510 25
63
100 65 2
DIN69871-AD+B40 WD25.160 71DIN-B40WD2516 160 125 3.2
3
DIN69871-AD+B40 WD32.100 71DIN-B40WD3210
32 70
100 65 2.5
DIN69871-AD+B40 WD32.160 71DIN-B40WD3216 160 125 3.9
