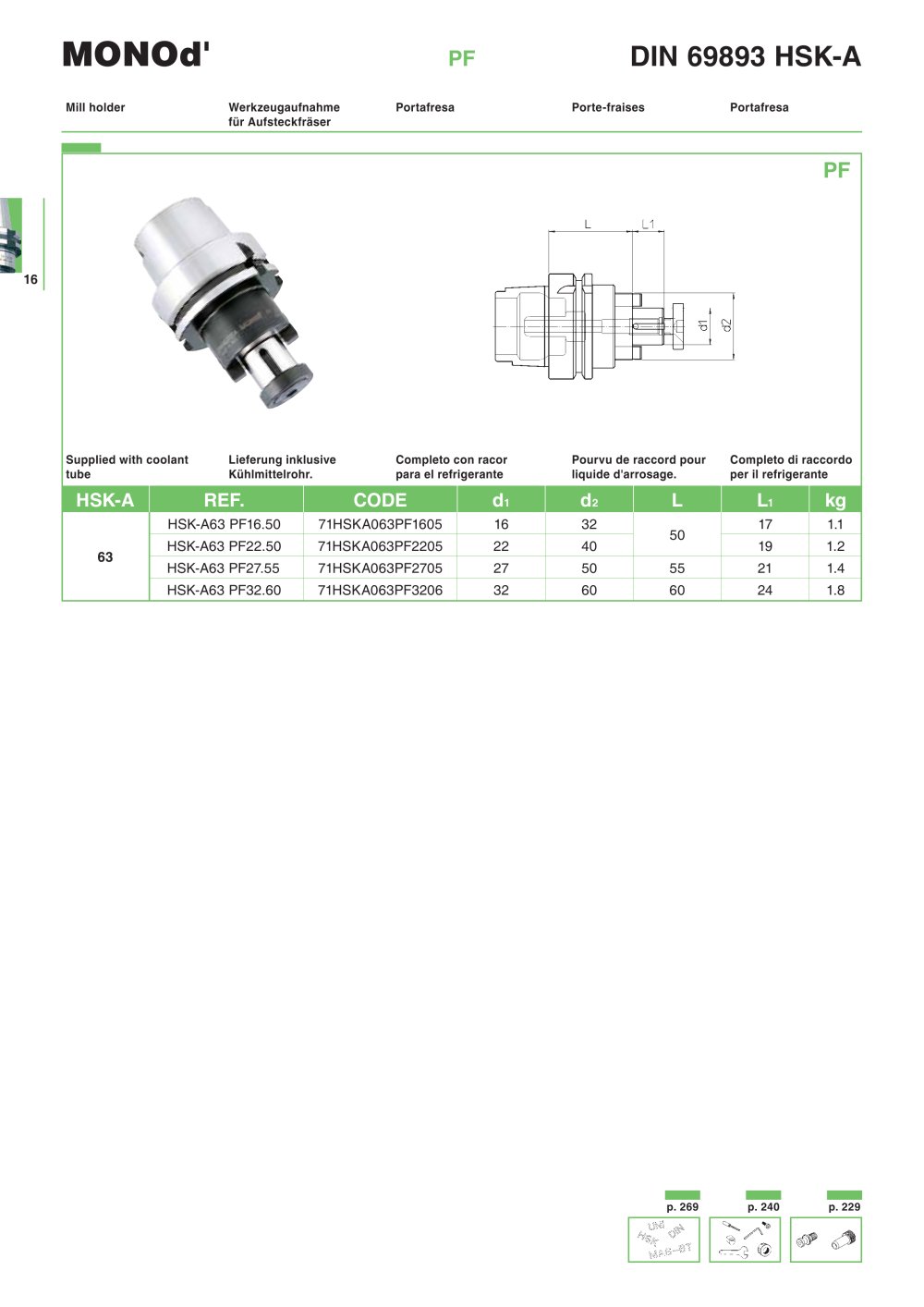

MONOd'
16
Werkzeugaufnahme
für Aufsteckfräser
Portafresa Porte-Mill holder fraises Portafresa
PF DIN 69893 HSK-A
Lieferung inklusive
Kühlmittelrohr.
Completo con racor
para el refrigerante
Pourvu de raccord pour
liquide d'arrosage.
Completo di raccordo
per il refrigerante
Supplied with coolant
tube
PF
p. 269 p. 240 p. 229
HSK-A REF. CODE d1 d2 L L1 kg
HSK-A63 PF16.50 71HSKA063PF1605 16 32
50
17 1.1
63
HSK-A63 PF22.50 71HSKA063PF2205 22 40 19 1.2
HSK-A63 PF27.55 71HSKA063PF2705 27 50 55 21 1.4
HSK-A63 PF32.60 71HSKA063PF3206 32 60 60 24 1.8
