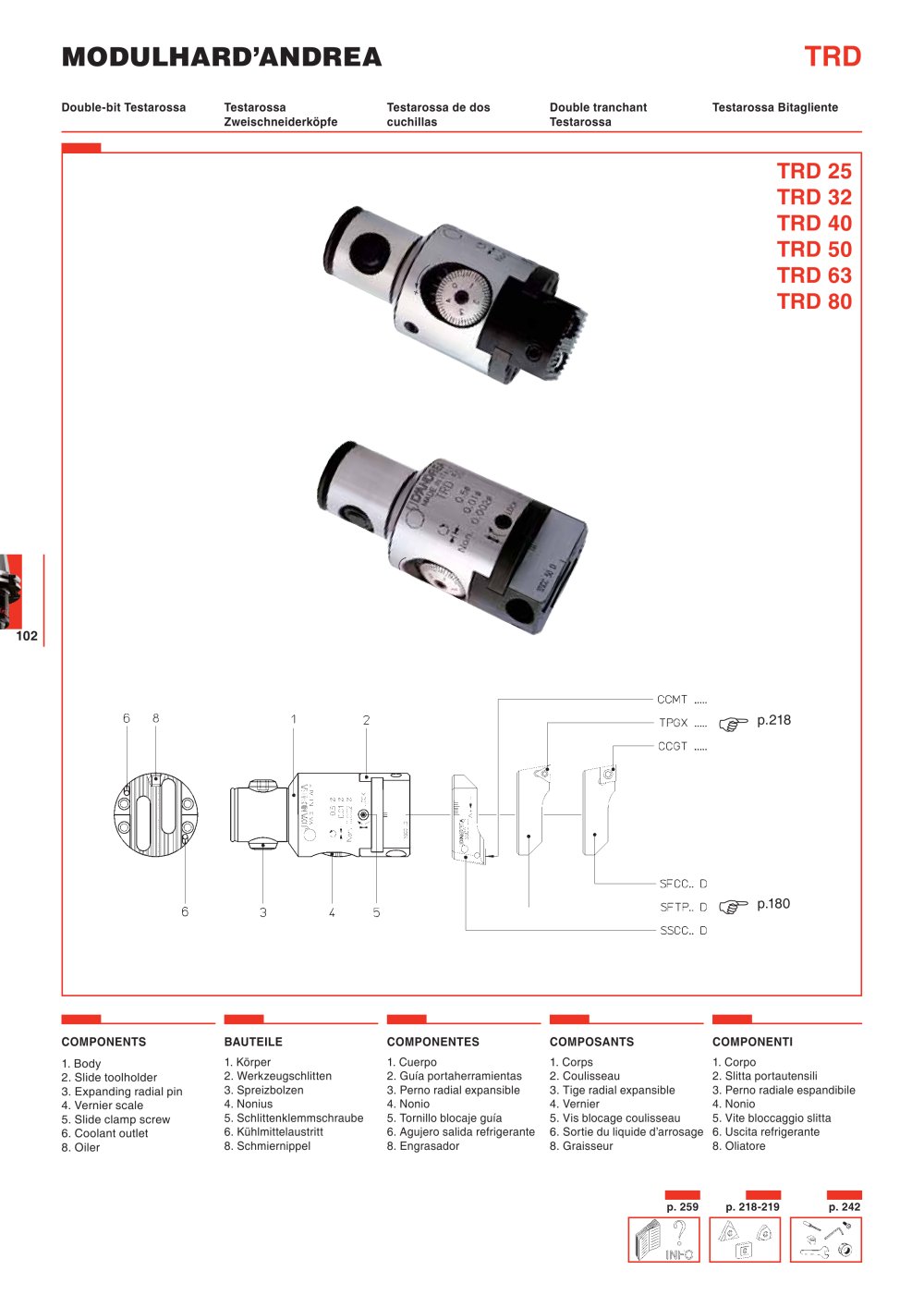

MODULHARD’ANDREA
102
p. 259 p. 218-219 p. 242
TRD
COMPONENTS
1. Body
2. Slide toolholder
3. Expanding radial pin
4. Vernier scale
5. Slide clamp screw
6. Coolant outlet
8. Oiler
BAUTEILE
1. Körper
2. Werkzeugschlitten
3. Spreizbolzen
4. Nonius
5. Schlittenklemmschraube
6. Kühlmittelaustritt
8. Schmiernippel
COMPONENTES
1. Cuerpo
2. Guía portaherramientas
3. Perno radial expansible
4. Nonio
5. Tornillo blocaje guía
6. Agujero salida refrigerante
8. Engrasador
COMPOSANTS
1. Corps
2. Coulisseau
3. Tige radial expansible
4. Vernier
5. Vis blocage coulisseau
6. Sortie du liquide d’arrosage
8. Graisseur
COMPONENTI
1. Corpo
2. Slitta portautensili
3. Perno radiale espandibile
4. Nonio
5. Vite bloccaggio slitta
6. Uscita refrigerante
8. Oliatore
TRD 25
TRD 32
TRD 40
TRD 50
TRD 63
TRD 80
Testarossa
Zweischneiderköpfe
Testarossa de dos
cuchillas
Double tranchant
Testarossa
Double-bit Testarossa Testarossa Bitagliente
p.180
p.218
+
