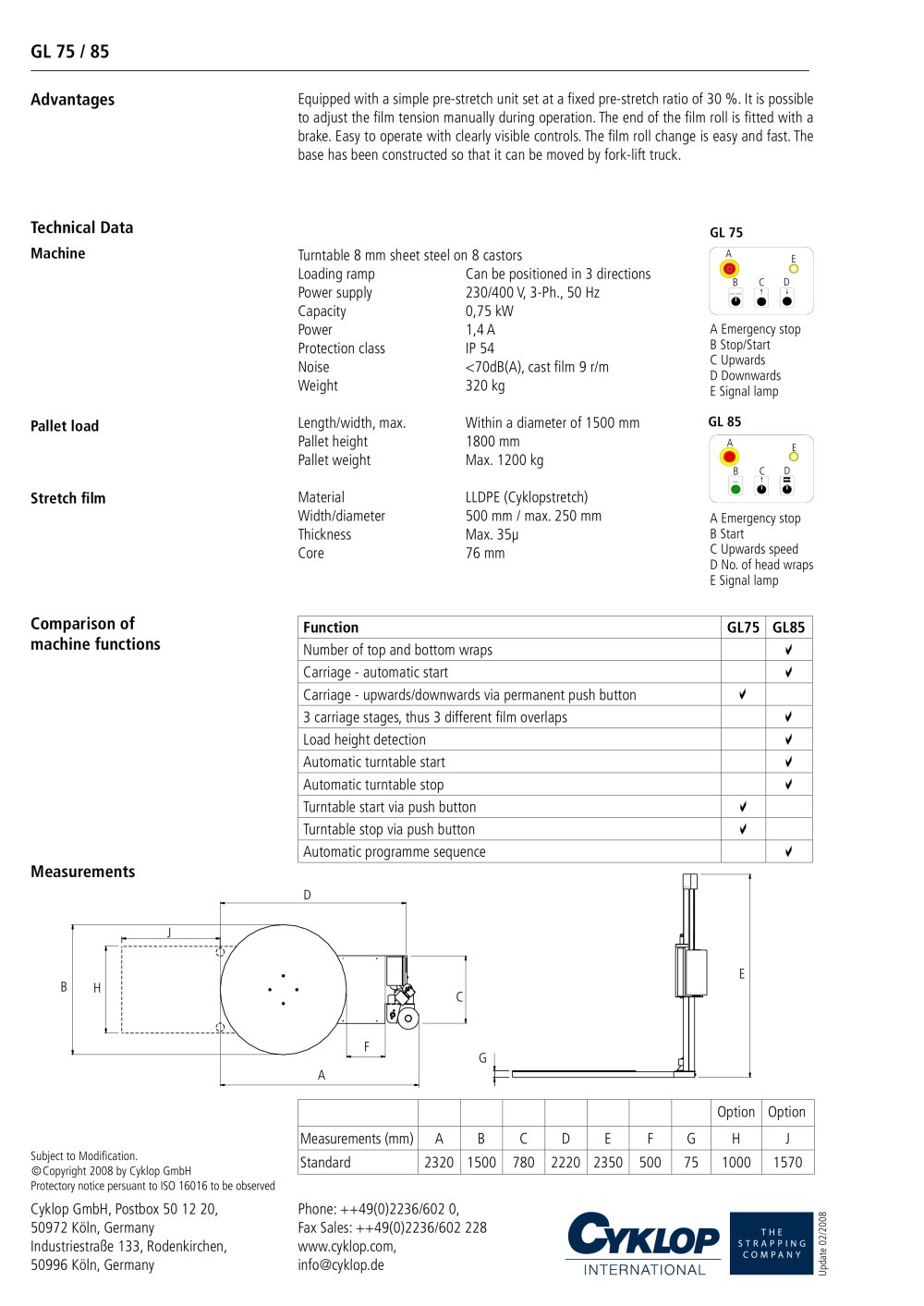

Update 02/2008 Cyklop GmbH, Postbox 50 12 20, 50972 Köln, Germany Industriestraße 133, Rodenkirchen, 50996 Köln, Germany Phone: ++49(0)2236/602 0, Fax Sales: ++49(0)2236/602 228 www.cyklop.com, info@cyklop.de Subject to Modification. Copyright 2008 by Cyklop GmbH Protectory notice persuant to ISO 16016 to be observed e GL 75 / 85 Advantages Technical Data Pallet load Stretch film Machine Option Option Measurements (mm) A B C D E F G H J Standard 2320 1500 780 2220 2350 500 75 1000 1570 Comparison of machine functions Measurements C A G F E D B H J STOP / START START A Emergency stop B Stop/Start C Upwards D Downwards E Signal lamp A Emergency stop B Start C Upwards speed D No. of head wraps E Signal lamp A B C D E A B C D E GL 75 GL 85 Equipped with a simple pre-stretch unit set at a fixed pre-stretch ratio of 30 %. It is possible to adjust the film tension manually during operation. The end of the film roll is fitted with a brake. Easy to operate with clearly visible controls. The film roll change is easy and fast. The base has been constructed so that it can be moved by fork-lift truck. Turntable 8 mm sheet steel on 8 castors Loading ramp Can be positioned in 3 directions Power supply 230/400 V, 3-Ph., 50 Hz Capacity 0,75 kW Power 1,4 A Protection class IP 54 Noise <70dB(A), cast film 9 r/m Weight 320 kg Length/width, max. Within a diameter of 1500 mm Pallet height 1800 mm Pallet weight Max. 1200 kg Material LLDPE (Cyklopstretch) Width/diameter 500 mm / max. 250 mm Thickness Max. 35ì Core 76 mm Function GL75 GL85 Number of top and bottom wraps Carriage - automatic start Carriage - upwards/downwards via permanent push button 3 carriage stages, thus 3 different film overlaps Load height detection Automatic turntable start Automatic turntable stop Turntable start via push button Turntable stop via push button Automatic programme sequence
