| QBffî | ||
| | ||

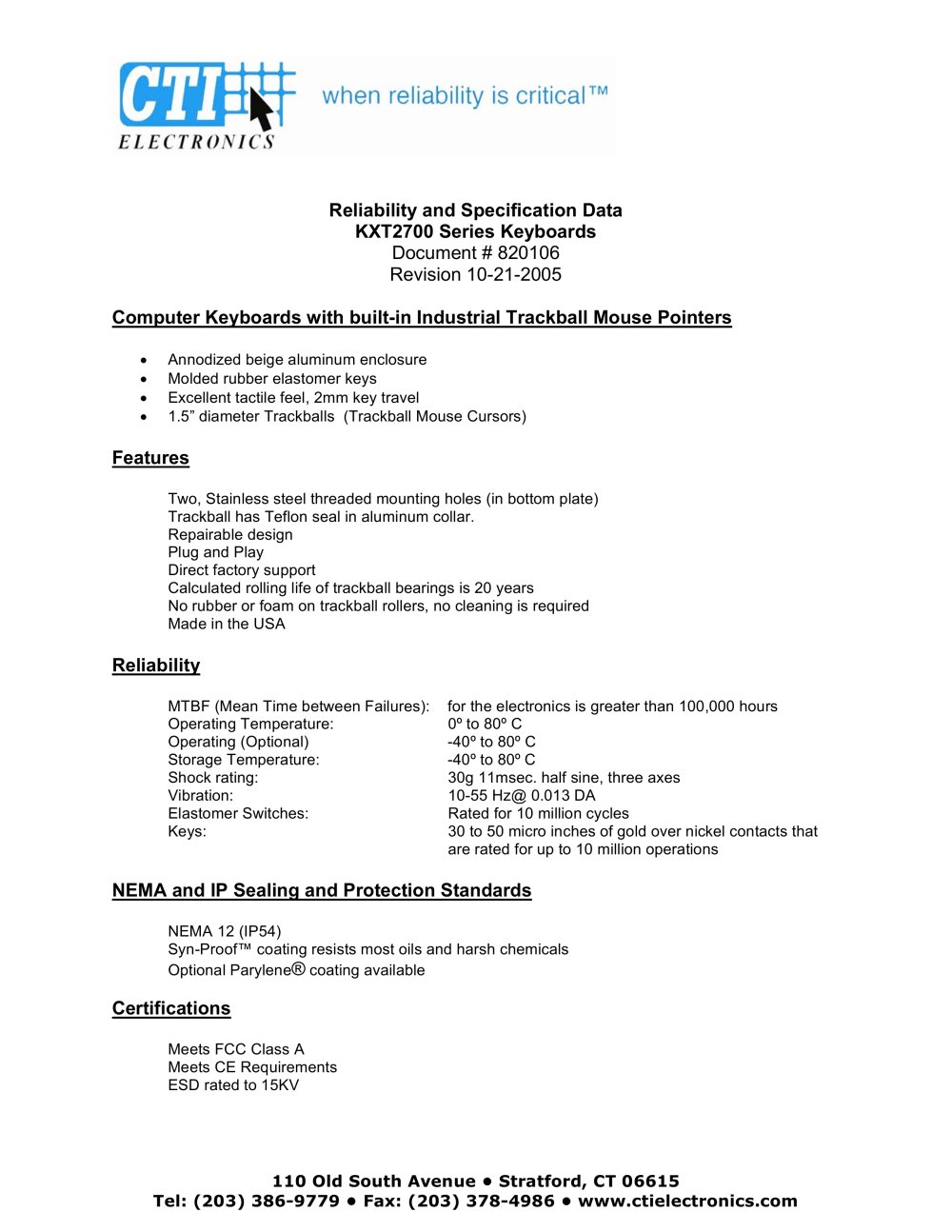

| Reliability and Specification Data KXT2700 Series Keyboards Document # 820106 Revision 10-21-2005 | ||
| | ||
| Computer Keyboards with built-in Industrial Trackball Mouse Pointers | ||
| | ||
| • Annodized beige aluminum enclosure • Molded rubber elastomer keys • Excellent tactile feel, 2mm key travel • 1.5" diameter Trackballs (Trackball Mouse Cursors) | ||
| | ||
| Features | ||
| | ||
| Two, Stainless steel threaded mounting holes (in bottom plate) Trackball has Teflon seal in aluminum collar. Repairable design Plug and Play Direct factory support Calculated rolling life of trackball bearings is 20 years No rubber or foam on trackball rollers, no cleaning is required Made in the USA | ||
| | ||
| Reliability | ||
| | ||
| MTBF (Mean Time between Failures): for the electronics is greater than 100,000 hours Operating Temperature: 0° to 80° C Operating (Optional) -40° to 80° C Storage Temperature: -40° to 80° C Shock rating: 30g 11msec. half sine, three axes Vibration: 10-55 Hz@ 0.013 DA Elastomer Switches: Rated for 10 million cycles Keys: 30 to 50 micro inches of gold over nickel contacts that are rated for up to 10 million operations | ||
| | ||
| NEMA and IP Sealing and Protection Standards NEMA 12 (IP54) Syn-Proof™ coating resists most oils and harsh chemicals Optional Parylene® coating available | ||
| | ||
| Certifications | ||
| | ||
| Meets FCC Class A Meets CE Requirements ESD rated to 15KV | ||
| | ||
| 110 Old South Avenue • Stratford, CT 06615 Tel: (203) 386-9779 • Fax: (203) 378-4986 • www.ctielectronics.com | ||
| | ||
