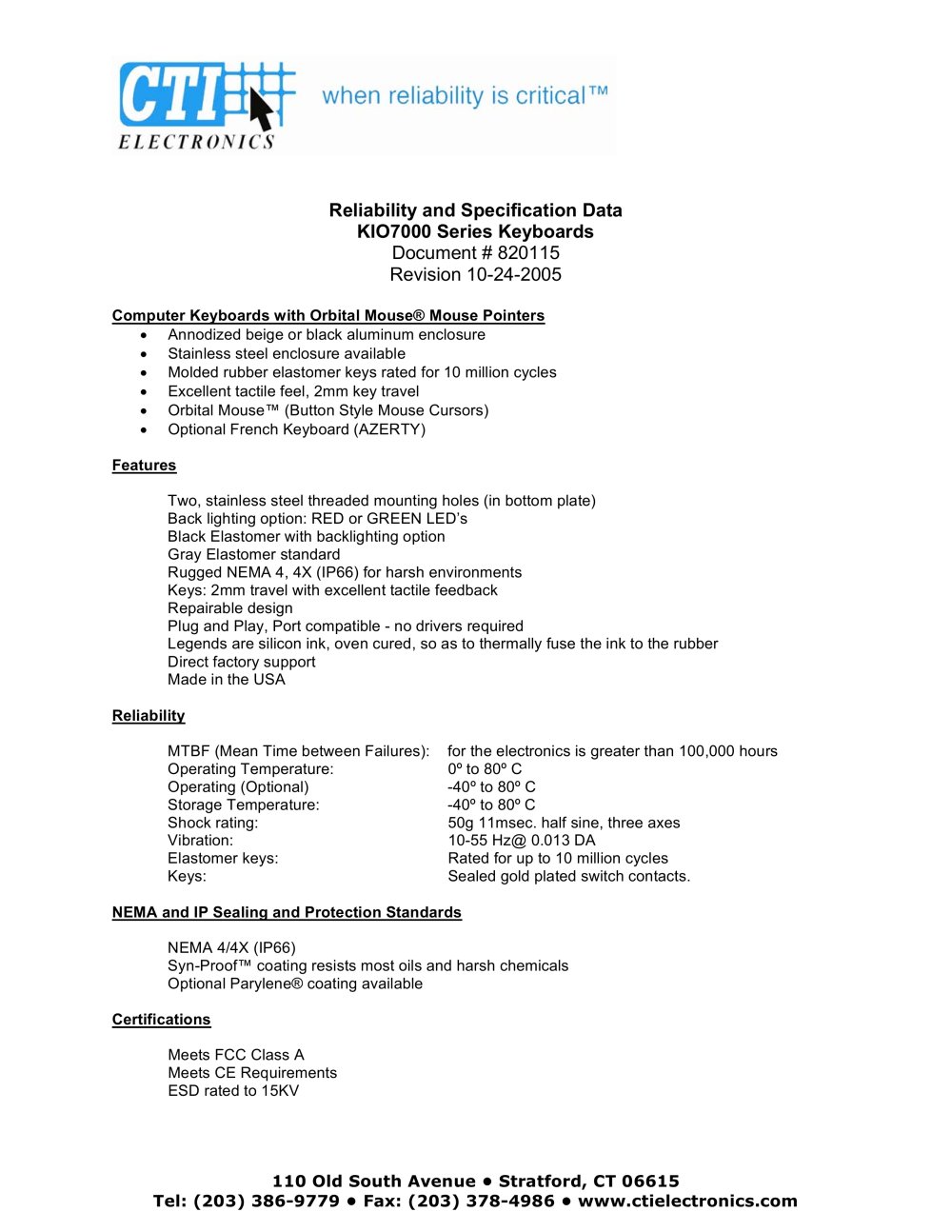

Reliability and Specification DataKIO7000 Series Keyboards Document # 820115 Revision 10-24-2005

Computer Keyboardswith Orbital Mouse® Mouse Pointers Annodized beige or black aluminum enclosure Stainless steel enclosureavailable Moldedrubber elastomerkeys rated for 10 million cycles Excellent tactile feel, 2mm key travel Orbital Mouse™ (Button Style Mouse Cursors) Optional French Keyboard(AZERTY) Features Two, stainless steel threaded mounting holes (in bottom plate) Back lightingoption: RED or GREEN LED’sBlack Elastomer with backlighting optionGray Elastomer standard RuggedNEMA 4, 4X (IP66) for harsh environmentsKeys: 2mm travel with excellent tactile feedbackRepairable design Plug and Play, Port compatible - no drivers requiredLegends are silicon ink, oven cured, so as to thermally fuse the ink to the rubberDirect factory supportMade in the USA Reliability MTBF (Mean Time between Failures):forthe electronics is greater than 100,000 hours Operating Temperature:0º to 80º C Operating (Optional)-40º to 80º CStorage Temperature:-40º to 80º C Shock rating:50g 11msec. half sine, three axes Vibration: 10-55Hz@0.013DAElastomer keys: Rated for up to 10 million cycles Keys:Sealed gold plated switch contacts. NEMA and IP Sealing and Protection Standards NEMA 4/4X (IP66)Syn-Proof™coating resists most oils and harsh chemicals Optional Parylene® coating available Certifications Meets FCCClass A Meets CE RequirementsESD rated to 15KV
