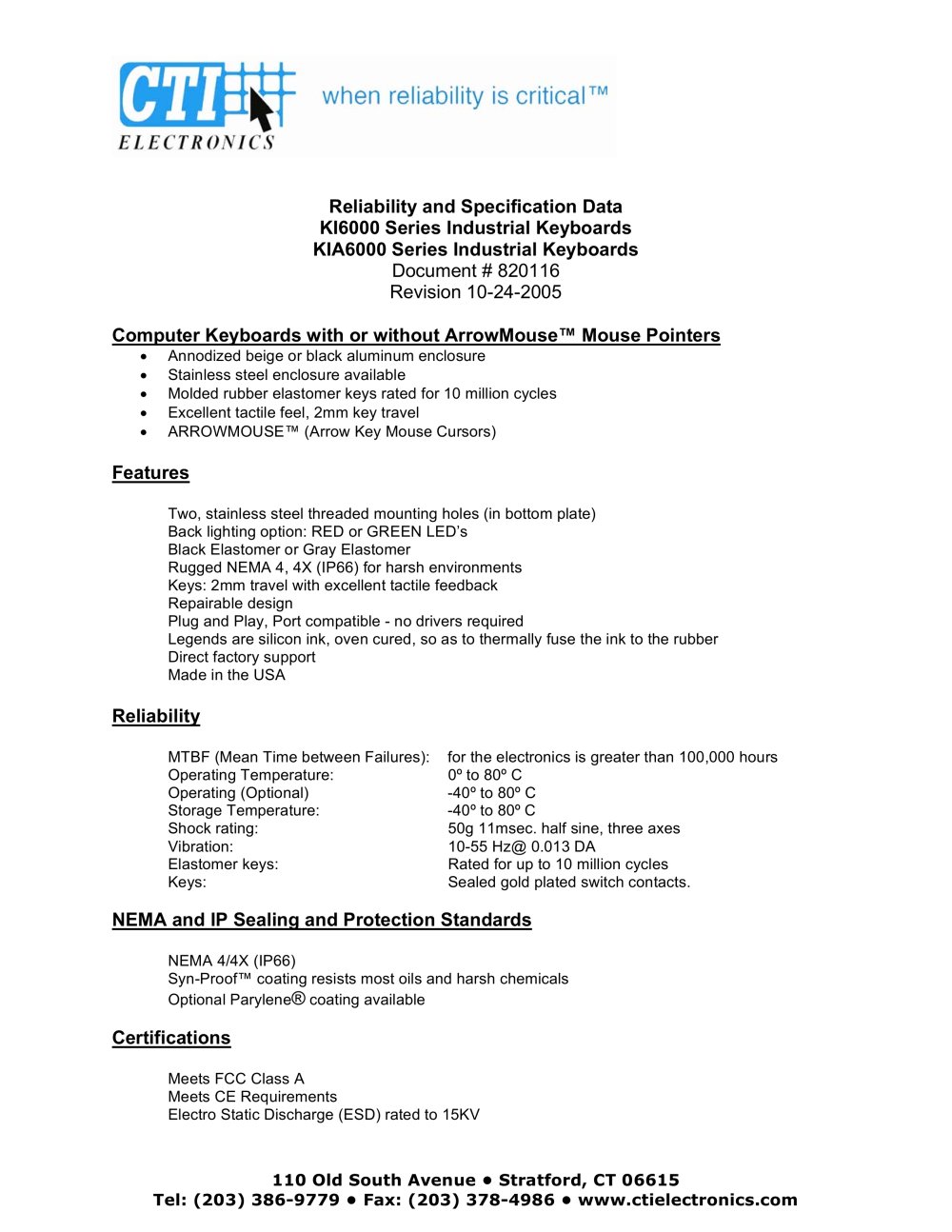

Reliability and Specification DataKI6000 Series Industrial KeyboardsKIA6000 Series Industrial Keyboards Document # 820116 Revision 10-24-2005 Computer Keyboards with or without ArrowMouse™ Mouse Pointers

Annodized beige or black aluminum enclosure Stainless steel enclosureavailable Moldedrubber elastomerkeys rated for 10 million cycles Excellent tactile feel, 2mm key travel ARROWMOUSE™ (ArrowKey Mouse Cursors)

Features

Two, stainless steel threaded mounting holes (in bottom plate) Back lightingoption: RED or GREEN LED’sBlack Elastomer or GrayElastomerRuggedNEMA 4, 4X (IP66) for harsh environments Keys: 2mm travel with excellent tactile feedbackRepairable designPlug and Play, Port compatible - no drivers required Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubberDirect factory supportMade in the USA

Reliability

MTBF (Mean Time between Failures):forthe electronics is greater than 100,000 hours Operating Temperature:0º to 80º C Operating (Optional)-40º to 80º CStorage Temperature:-40º to 80º CShock rating:50g 11msec. half sine, three axes Vibration: 10-55Hz@0.013DAElastomer keys: Rated for up to 10 million cycles Keys:Sealed gold plated switch contacts.

NEMA and IP Sealing and Protection Standards

NEMA 4/4X (IP66) Syn-Proof™coating resists most oils and harsh chemicalsOptional Parylene

®

coating available

Certifications

Meets FCCClass AMeets CE Requirements Electro Static Discharge(ESD) rated to 15KV

110 Old South Avenue ? Stratford, CT 06615Tel: (203) 386-9779 ? Fax: (203) 378-4986 ? www.ctielectronics.com
