F1800-N84 Series 3-Axis NEMA 4 (IP66) Industrial Joystick Reliability Data - CTI Electronics Corporation - #1

Text version of the page

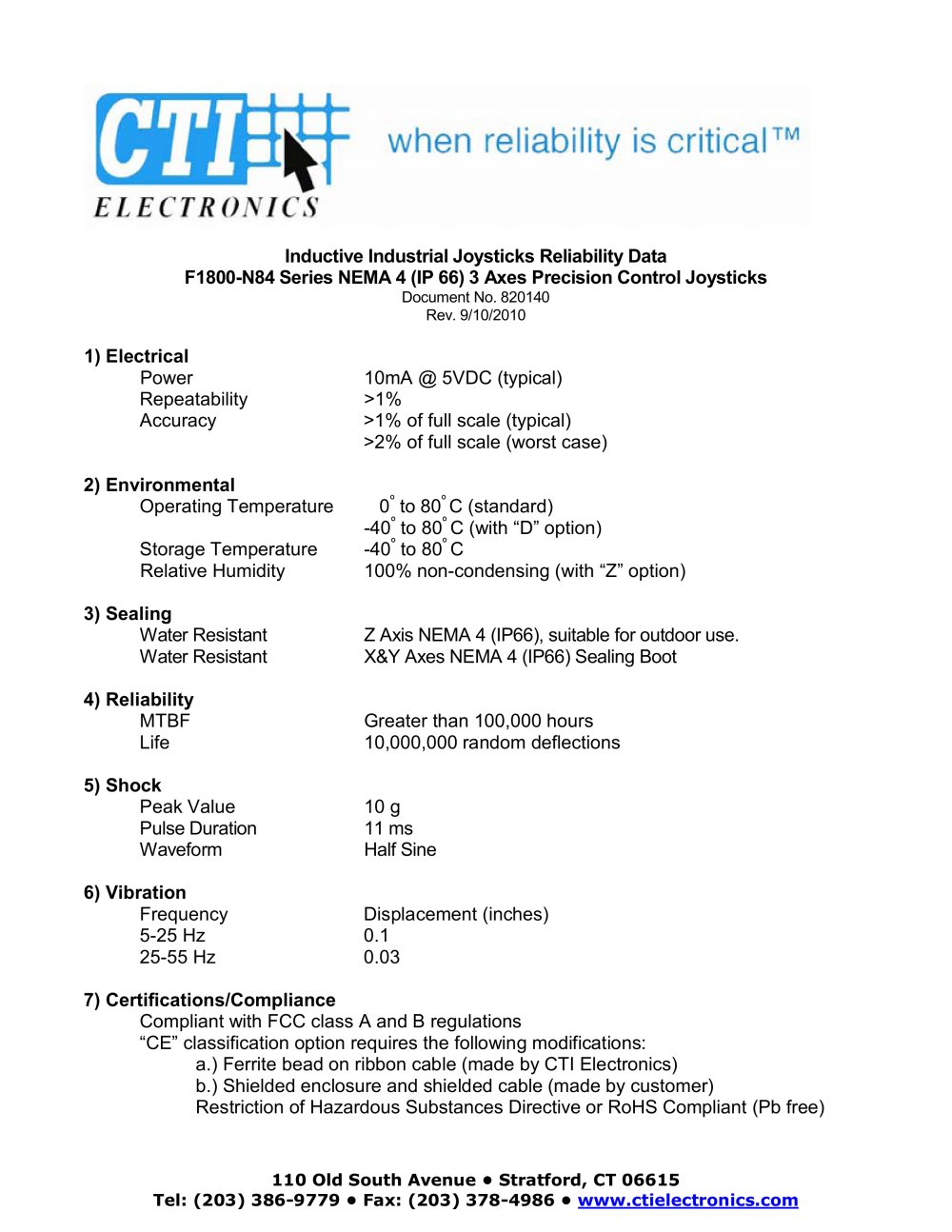

110 Old South Avenue • Stratford, CT 06615 Tel: (203) 386-9779 • Fax: (203) 378-4986 • www.ctielectronics.com Inductive Industrial Joysticks Reliability Data F1800-N84 Series NEMA 4 (IP 66) 3 Axes Precision Control Joysticks Document No. 820140 Rev. 9/10/2010 1) Electrical Power 10mA @ 5VDC (typical) Repeatability >1% Accuracy >1% of full scale (typical) >2% of full scale (worst case) 2) Environmental Operating Temperature 0º to 80º C (standard) -40º to 80º C (with “D” option) Storage Temperature -40º to 80º C Relative Humidity 100% non-condensing (with “Z” option) 3) Sealing Water Resistant Z Axis NEMA 4 (IP66), suitable for outdoor use. Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot 4) Reliability MTBF Greater than 100,000 hours Life 10,000,000 random deflections 5) Shock Peak Value 10 g Pulse Duration 11 ms Waveform Half Sine 6) Vibration Frequency Displacement (inches) 5-25 Hz 0.1 25-55 Hz 0.03 7) Certifications/Compliance Compliant with FCC class A and B regulations “CE” classification option requires the following modifications: a.) Ferrite bead on ribbon cable (made by CTI Electronics) b.) Shielded enclosure and shielded cable (made by customer) Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
