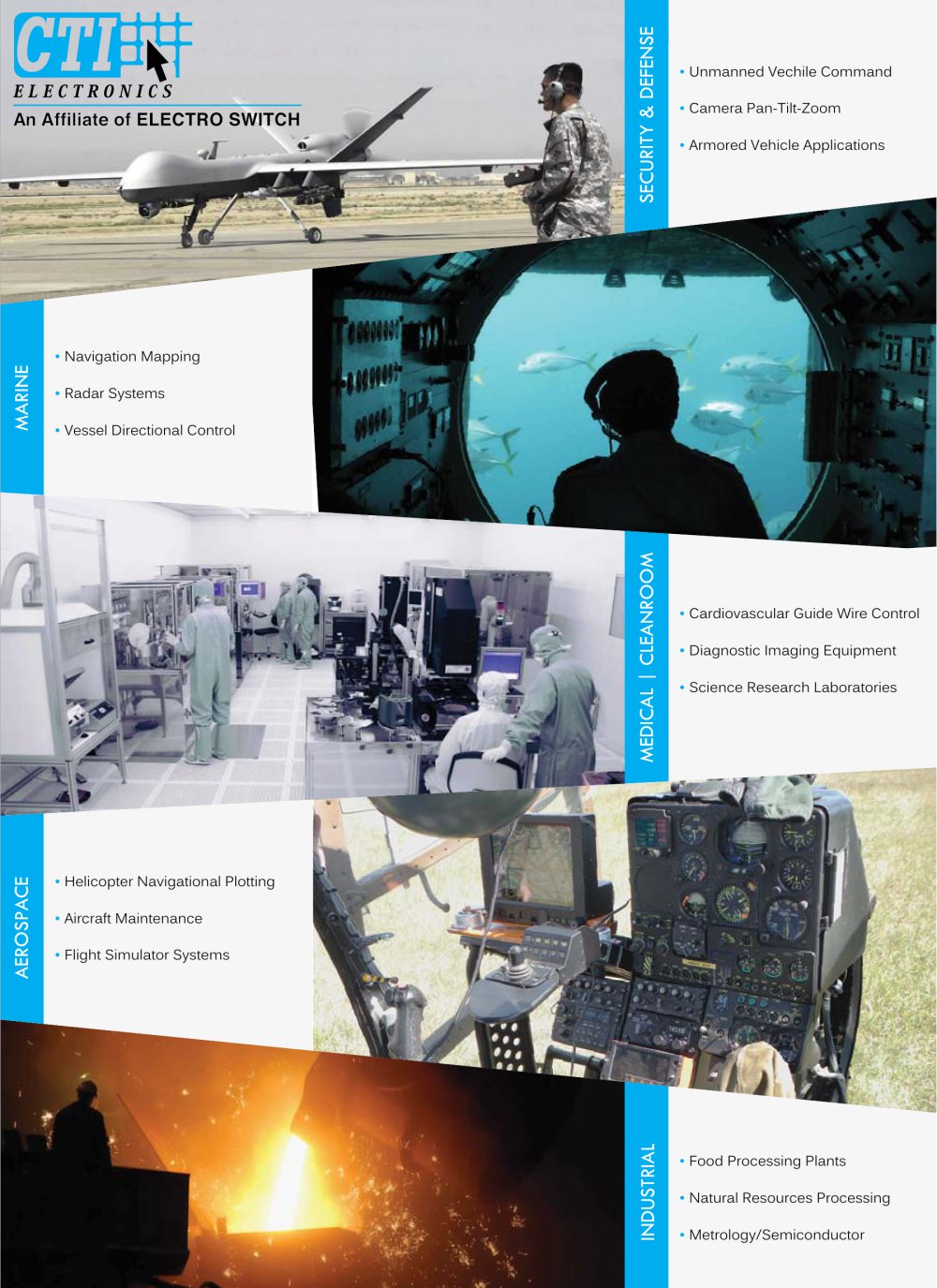

CTI Product Brochure - CTI Electronics Corporation - #1

Text version of the page

www.ctielectronics.com www.ctielectronics.com www.ctielectronics.com Keyboards CTI manufactures a complete family of high reliability, precision trackballs available as panel mount or OEM. Recommended for applications where the sealing level, from dirt and water, is not as demanding when compared to CTI’s Industrial Mouse™ pointers. • Rated NEMA 12, (IP54) • Formed Teflon sealing ring built into an aluminum collar • Aerospace shielded bearings (ABEC 7) • Proprietary optical photo detector rated -40 to +85 C • Precision etched Beryllium copper high count encoder disc High Reliability Trackballs Joysticks F1000 Series with Buttons All the features of this series plus the added benefits of a fully sealed tactile switch with gold contacts. • The push-button is rated for 1 million actuations F-series miniature, inductive joysticks feature a noncontacting design, ensuring high strength & long term reliability. • Rugged, drift-free, excellent feel, will not degrade over time • Rated to 10 million operations • Sealed to NEMA 4 (IP66) • Smallest footprint and below panel depth in its class • Molded in threaded brass inserts for secure mounting • Optional optical redundant center position indicating sensor Joysticks F1000 Series LIGHTSTICK® L1000 Series • Non-contacting infinite resolution, analog optical position sensors • High EMI immunity • Minimal moving parts assure long term reliability Joysticks & Trackballs • Molded silicone keys • Tactile response, gold contacts • Standard or custom designs • Trackball rated NEMA 12 (IP54) • Survives in the harshest environments • Molded silicone keys, hard gold contacts • Excellent tactile response, with full 2mm travel • Keyboard only or with built-in pointer • Low profile design • Molded silicone keys, gold contacts • Excellent tactile response with full 2mm travel • Keyboard only or with built-in pointer options • Backlighting options Desktop Keyboards NEMA 4 • Integrated single piece elastomer assembly simplifies installation and assures a full seal, no glue or sealers required. • Molded silicone keys • High reliability, ease of use • Keyboard only or with built-in pointer options • Backlit options • Patented folding door serves as a hand rest • Keyboards in 1U or 2U heights • Sliding rails rated at 80 lb per slide • Keyboard only or with built-in pointer Desktop Keyboards NEMA 4 Industrial Mouse™ Pointers Desktop Keyboards NEMA 12 OEM Keyboards Rack Mount Keyboards CTI’s Arrowmouse™, a sealed, drift-free, low profile cursor controller, is especially designed to meet an OEM’s small footprint space requirements. • NEMA 4 (IP66) rated • Six keys replicate all mouse functions and can precisely operate in one direction • Molded silicone rubber keys with hard gold over nickel contacts for highest reliability • Excellent tactile feel • Available with back-lighting ARROWMOUSE™ Industrial Mouse™ CTI’s rugged Industrial Mouse™ series features the most reliable, easiest to use pointers available. Available in stainless steel enclosures rated NEMA 4X (IP66) or as OEM sub-assemblies. • No cursor drift • Reliable, field proven over 20 years • Inductive joystick • Gold contact, sealed switches • Point and click option Orbital Mouse® The only button style pointer that does not degrade or drift over time, as do membrane designs. • Two or three mouse buttons • Perfect alternative to touch pads in an industrial environment • Design eliminates breakage problems • NEMA 4 (IP66) • Available with back-lighting 3-Axes Joystick F1800 series – NEMA 12 (IP54) three axes inductive joystick • No drift, precision design • Inductive, non-contacting sensors for the x and y axes and a 20 million life 5K potentiometer for the third axis OEM Switch Pads • Single and three button • LED’s available • Molded rubber elastomer rated NEMA 4 (IP66) • Hard gold contacts • Switches rated for 10 million activations • Approximately 2mm travel • Custom legends
