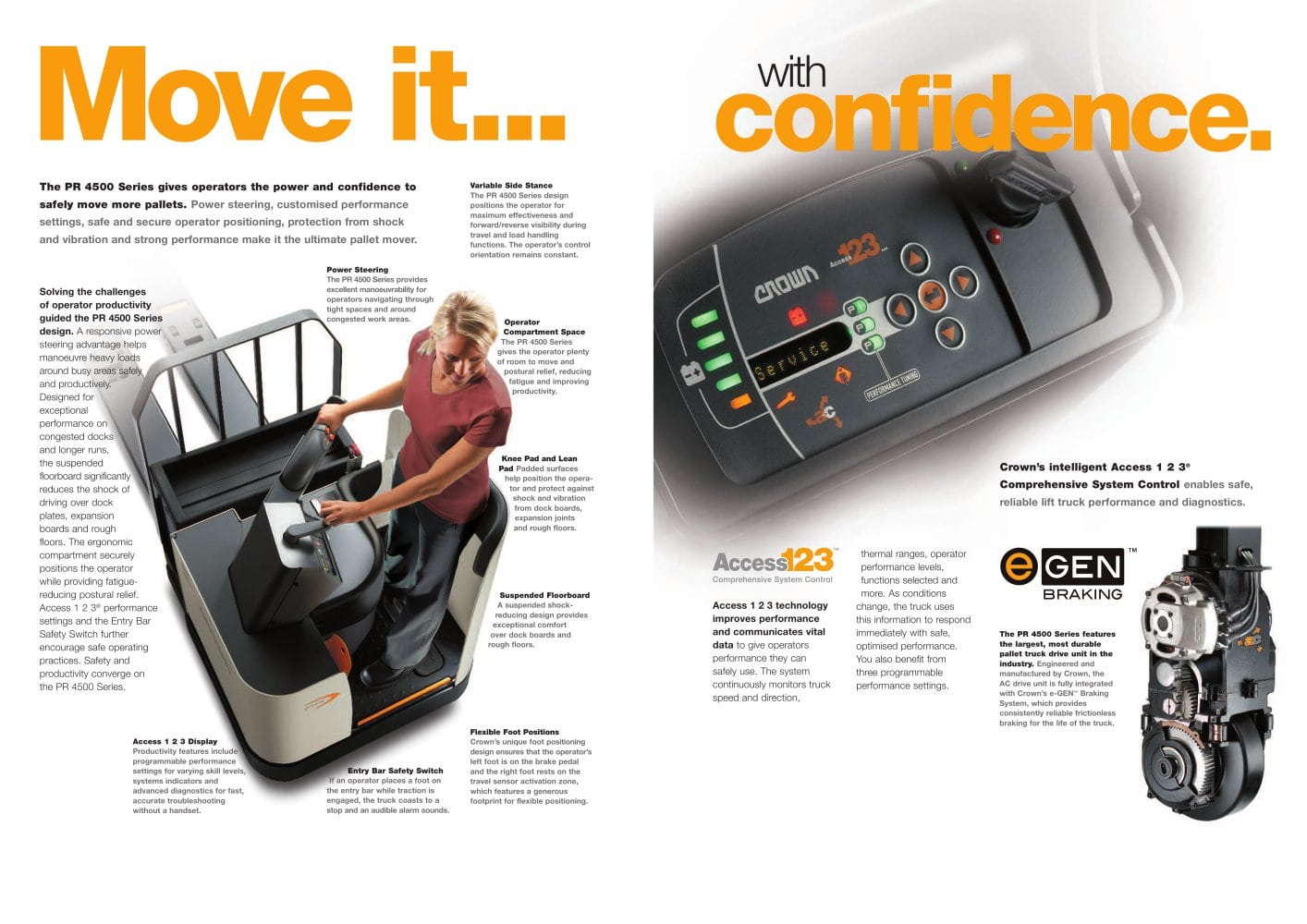

PR 4500 Series Specifications General Information 1.1 Manufacturer Crown Equipment Corporation 1.2 Model PR 4500-3.0 1.3 Power electric 1.4 Operator Type stand 1.5 Load Capacity Q t 3.0 1.6 Load Centre c mm see table 1 1.8 Load Distance x mm see table 1 1.9 Wheel Base y mm see table 1 Weights 2.1 Weight less battery kg see table 1 2.2 Axle Load w. load, front / rear kg see table 1 2.3 Axle Load w.o. load, front / rear kg see table 1 Tyres 3.1 Tyre Type Polyurethane 3.2 Wheel Size front mm Ø 330 x 200 3.3 Wheel Size rear mm Ø 83 x 83 3.4 Additional Wheels castor wheels mm Ø 100 x 65 3.5 Wheels number (x=driven) front/rear 1x + 2/4 3.6 Track Width front b10 mm 0 3.7 Track Width rear b11 mm 280 / 380 / 505 Dimensions 4.4 Lift Height h3 mm 150 4.8 Operator Stand Height h7 mm 295 4.15 Fork Height lowered h13 mm 83 4.19 Overall Length l1 mm see table 1 4.20 Headlength l2 mm 970 1135 4.21 Overall Width b1 mm 965 4.22 Fork Dimension thxwxl mm 78 x 180 x see table 1 4.25 Width Across Forks b5 mm 460 / 560 / 685 4.32 Ground Clearance centre wheelbase, raised m2 mm 184 4.33 Working Aisle Width * 1000 x 1200 mm traverse, raised Ast mm 2315 2480 4.34 Working Aisle Width ** 800 x 1200 mm length, raised Ast mm 2515 2680 4.35 Turning Radius Wa mm see table 1 Performance 5.1 Travel Speed w. / w.o. load km/h 10.1 / 12.9 (10.1 / 14.5) *** 5.2 Lift Speed w. / w.o. load m/s 0.04 / 0.06 5.3 Lowering Speed w. / w.o. load m/s 0.09 / 0.06 5.7 Gradeability w. / w.o. load, 30 min. rating % 5 / 15 5.10 Service Brake electric Motors 6.1 Traction Motor rating at S2 60 min. kW 3.9 6.2 Lift Motor rating at S3 15% kW 1.5 6.3 Max. Battery Box Size lxwxh mm 169 x 874 x 803 335 x 790 x 803 6.4 Battery Voltage nominal capacity K5 V / Ah 24 / 310-324 24 / 465-756 6.5 Battery Weight min. / max. kg 165 / 410 440 / 680 8.1 Type Controller drive AC traction *** Fork length 1000 mm *** Fork length 1200 mm *** Speed with optional productivity package ****** Forks lowered + 115 mm Battery Size 170 x 875 x 594 mm 335 x 790 x 594 mm 1.6 Load Centre c mm 400 500 600 400 500 600 800 1000 1200 1.8 Load Distance **** raised x mm 570 770 895 570 770 895 1370 1770 2095 1.9 Wheel Base **** raised y mm 1055 1255 1380 1220 1420 1545 2020 2420 2745 2.1 Weight less battery kg 771 780 785 816 825 831 896 915 930 2.2 Axle Load with load front kg 1685 1689 1691 1798 1802 1804 1373 1379 1383 with load rear kg 2528 2533 2536 2698 2703 2707 3203 3217 3227 2.3 Axle Load w.o. load front kg 970 978 982 1197 1204 1209 1182 1196 1208 w.o. load rear kg 243 244 245 299 301 302 394 399 403 4.19 Overall Length h4 mm 1765 1965 2085 1930 2130 2250 2730 3130 3450 4.22 Fork Length l mm 795 995 1120 795 995 1120 1595 1995 2320 4.35 Turning Radius **** raised Wa mm 1690 1885 2010 1855 2050 2175 2645 3040 3365 Table 1
