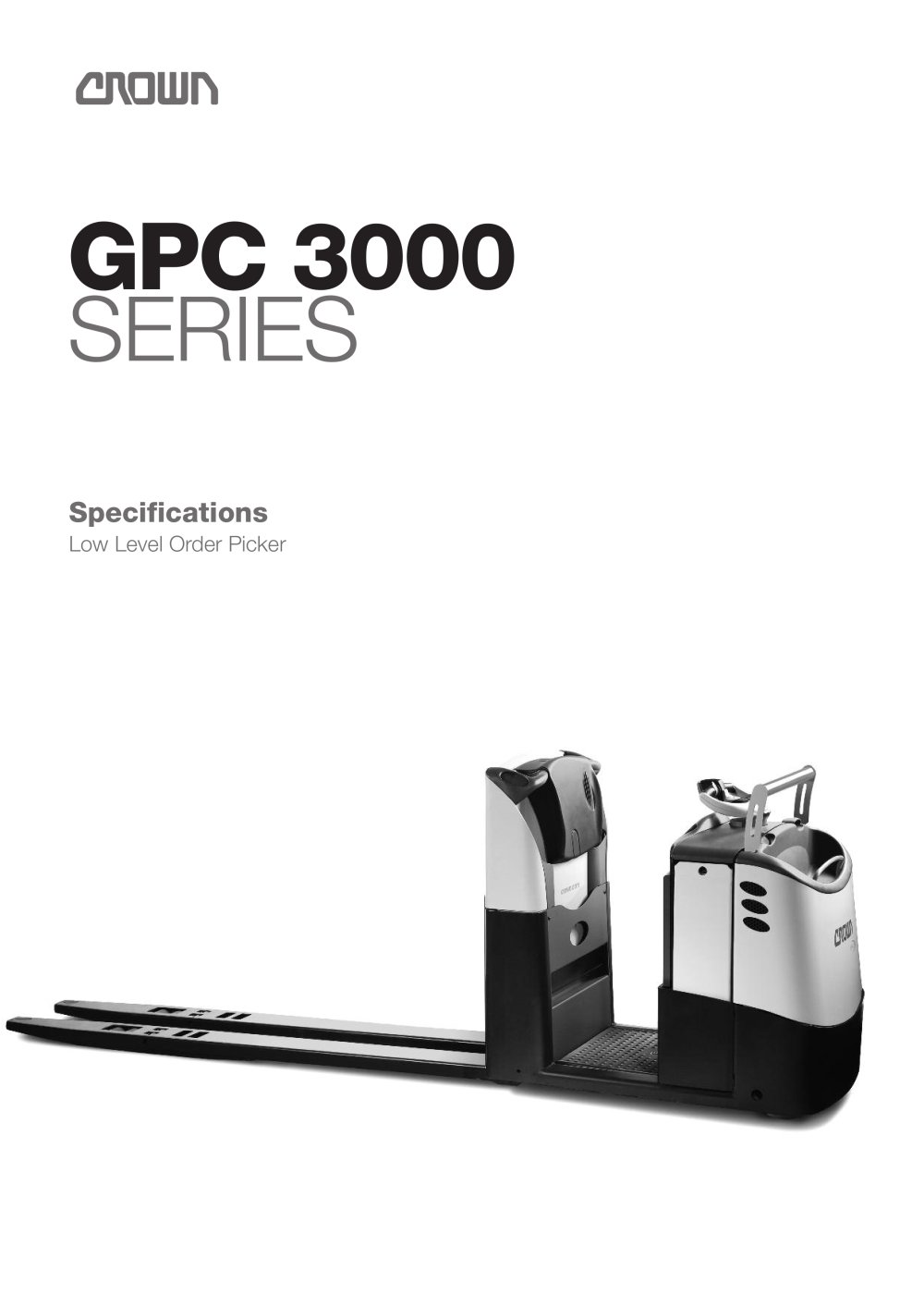

Order Picker GPC 3000 series-1

GPC 3000 SERIES Specifications Low Level Order Picker

 Open the catalog to page 1
Order Picker GPC 3000 series-2

Low Level Order Picker Rear Work Assist™ accessory tube Load backrest * Large battery compartment = 547 mm (optional on GPC 3020, 3040, 3050, standard on GPC 3060) ** Extended operator compartment = 515 mm *** On extended operator compartment the operator step height = 442 mm

 Open the catalog to page 2
Order Picker GPC 3000 series-3

Low Level Order Picker GPC 3040 and 3060 with optional platform lift * Large battery compartment = 547 mm (optional on GPC 3040, standard on GPC 3060)

 Open the catalog to page 3
Order Picker GPC 3000 series-4

Table 1 GPC 3020/3040 Standard: 465 Ah / 440 mm platform 1.6 Load Centre Load Distance, lowered Wheel Base, lowered less battery Axle Load Axle Load Fork Length Width Across Forks Turning radius, lowered 1 2 3 5 Wa Load Centre Load Distance, lowered Wheel Base, lowered Table 2 GPC 3050 Standard: 465 Ah / 440 mm platform 1.6 less battery Head Length Fork Length Overall Length Axle Load Axle Load Width Across Forks Turning radius, lowered Table 3 GPC 3060 Standard: 620 Ah / 440 mm platform 1.6 Load Centre Load Distance, lowered Wheel Base, lowered less battery Overall Length Head Length Fork Length...

 Open the catalog to page 4
Order Picker GPC 3000 series-5

General Information Crown Equipment Corporation Operator Type order picker Load Capacity Load Centre Load Distance Wheel Base less battery Axle Load w. load. front / rear Axle Load w.o. load. front / rear Tyre Type Wheel Size Vulkollan front Wheel Size Additional Wheels castor wheel number (x=driven) front/rear Track Width Track Width Lift Height Operator Stand Height Control Handle Height 4.22 Fork Dimension 4.22a Fork Tip Length below mast centre wheelbase 4.33 Working Aisle Width * 2 Euro Pallets length, raised Travel Speed Lift Speed Lowering Speed 5.10 Service Brake 6.1 Motors Traction Motor...

 Open the catalog to page 5
Order Picker GPC 3000 series-6

Capacity GPC 3020 - 2000 kg GPC 3040 - 2000 kg GPC 3050 - 2500 kg GPC 3060 - 2700 kg Electric System / Batteries 24-volt electrical system with nominal battery capacities from 420 Ah up to 620 Ah. The battery can be removed vertically or horizontally with optional battery rollers for left/right or both sides removal. Standard Equipment 1. Maintenance free 3-phase (AC) traction and steering motors 2. e-Gen® Braking System offers regenerative and frictionless electric braking (mechanical braking applies only as parking brake) 3. Electronic steering with the centre mounted X10® Handle for precise...
